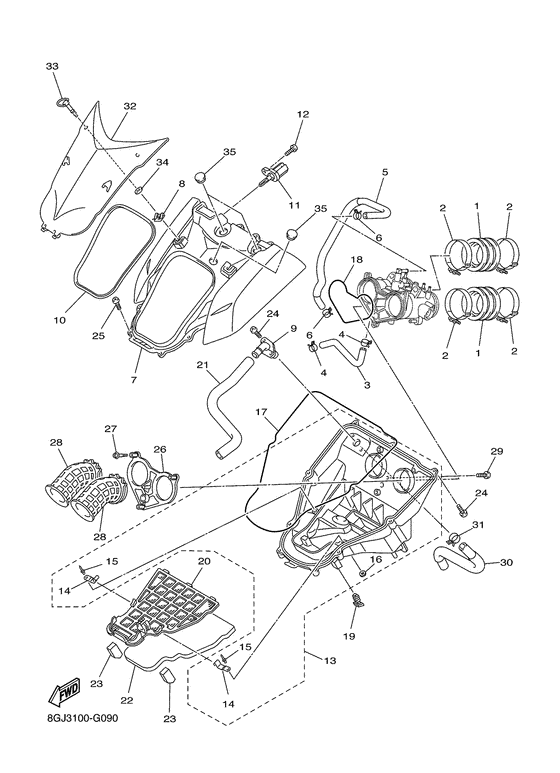

Intake Diagram Yamaha PZ50/ RPZ50 Venture Lite
- Model code
- 8GJ5
- Engine Capacity
- 499
- Year
- 2009
- Sales region
- Canada (020)
- Colour
- Deep Red Metallic K (DRMK; 0918)
- Power
- 80 hp
- Model
- Venture Lite
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
8GC-13595-10-00 Joint |
8GC-13595-10-00 |
from US $17.14 |
||
|
02
|
02
90450-60004-00 Hose Clamp Assy |
90450-60004-00 |
from US $8.94 |
||
|
03
|
03
8GC-1243A-00-00 Hose 1 |
8GC-1243A-00-00 |
from US $6.52 |
||
|
04
|
04
90467-110A2-00 Clip |
90467-110A2-00 |
from US $1.70 |
||
|
05
|
05
8GC-12578-00-00 Hose 3 |
8GC-12578-00-00 |
from US $26.92 |
||
|
06
|
06
90467-110A2-00 Clip |
90467-110A2-00 |
from US $1.70 |
||
|
07
|
07
8GC-14431-00-00 Silencer, Intake 1 |
8GC-14431-00-00 |
from US $35.28 |
||
|
08
|
08
4XV-2177L-01-00 Plate, Spring |
4XV-2177L-01-00 |
from US $7.23 |
||
|
09
|
09
8GC-14485-00-00 Pipe, Joint |
8GC-14485-00-00 |
from US $3.68 |
||
|
10
|
10
8GC-14457-00-00 Seal |
8GC-14457-00-00 |
from US $37.30 |
||
|
11
|
11
8FP-85886-00-00 Sensor, Air Temperature |
8FP-85886-00-00 |
from US $22.81 |
||
|
12
|
12
97702-50520-00 Screw, Tapping |
97702-50520-00 |
from US $0.54 |
||
| replacement | |||||
|
12
|
12
97780-50620-00 Screw, Tapping |
97780-50620-00 |
from US $1.56 |
||
|
13
|
13
8GC-W1444-10-00 Silencer, Intake 2 |
8GC-W1444-10-00 |
from US $40.90 |
||
|
14
|
14
8GC-14406-00-00 Hinge |
8GC-14406-00-00 |
from US $3.68 |
||
|
15
|
15
90267-32013-00 Rivet, Blind (3.2X13.5 Black |
90267-32013-00 |
from US $1.84 |
||
|
16
|
16
90201-03008-00 Washer, Plate |
90201-03008-00 |
from US $1.70 |
||
|
17
|
17
8GC-14452-00-00 Seal |
8GC-14452-00-00 |
from US $6.23 |
||
|
18
|
18
8GC-14462-00-00 Seal |
8GC-14462-00-00 |
from US $8.93 |
||
| replacement | |||||
|
18
|
18
51Y-14462-00-00 Seal |
51Y-14462-00-00 |
from US $3.32 |
||
|
19
|
19
8GC-14435-00-00 Grommet |
8GC-14435-00-00 |
from US $2.69 |
||
|
20
|
20
8GC-14472-10-00 Plate, Element |
8GC-14472-10-00 |
from US $17.14 |
||
|
21
|
21
8GC-14419-00-00 Pipe |
8GC-14419-00-00 |
from US $32.44 |
||
|
22
|
22
8GC-14451-00-00 Element, Air Cleaner |
8GC-14451-00-00 |
from US $26.07 |
||
|
23
|
23
8GC-14425-00-00 Damper 1 |
8GC-14425-00-00 |
from US $1.28 |
||
|
24
|
24
97702-50025-00 Screw, Tapping(2Jg) |
97702-50025-00 |
from US $1.42 |
||
| replacement | |||||
|
24
|
24
97707-50025-00 Screw, Tapping |
97707-50025-00 |
from US $1.42 |
||
|
25
|
25
97702-50020-00 Screw, Tapping |
97702-50020-00 |
from US $1.56 |
||
| replacement | |||||
|
25
|
25
90167-05078-00 Screw, Tapping |
90167-05078-00 |
from US $1.56 |
||
|
26
|
26
8GC-14453-00-00 Joint, Air Cleaner 1 |
8GC-14453-00-00 |
from US $7.93 |
||
|
27
|
27
90109-05005-00 Bolt |
90109-05005-00 |
from US $2.69 |
||
|
28
|
28
8GC-14469-00-00 Funnel, Air |
8GC-14469-00-00 |
from US $14.17 |
||
|
29
|
29
97702-50020-00 Screw, Tapping |
97702-50020-00 |
from US $1.56 |
||
| replacement | |||||
|
29
|
29
90167-05078-00 Screw, Tapping |
90167-05078-00 |
from US $1.56 |
||
|
30
|
30
8GJ-21745-00-00 Pipe, Oil Tank Breather |
8GJ-21745-00-00 |
from US $38.68 |
||
|
31
|
31
90467-22097-00 Clip(34X) |
90467-22097-00 |
from US $1.70 |
||
|
32
|
32
8GC-14417-00-00 Cover 1 |
8GC-14417-00-00 |
from US $14.73 |
||
|
33
|
33
3FV-28386-00-00 Head |
3FV-28386-00-00 |
from US $20.84 |
||
|
34
|
34
2TK-21757-00-00 Washer, Special 1 |
2TK-21757-00-00 |
from US $2.13 |
||
|
35
|
35
8GC-14445-00-00 Grommet |
8GC-14445-00-00 |
from US $1.28 |
||
