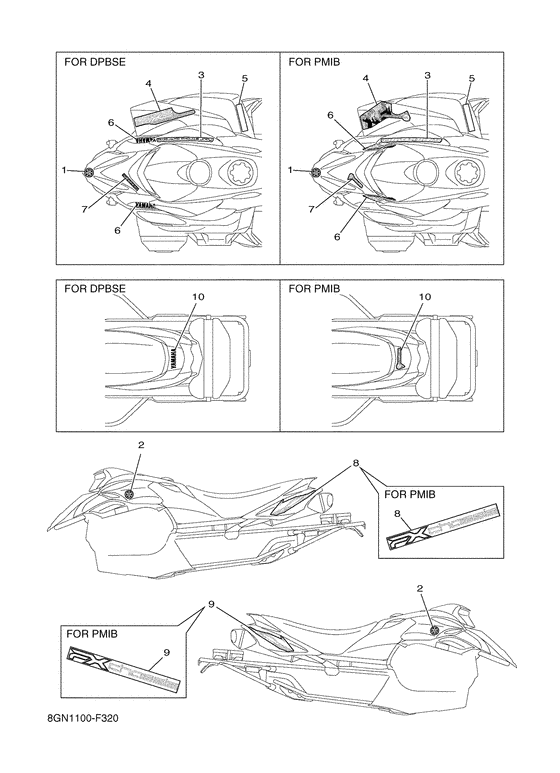

Emblem Diagram Yamaha PZ50/ RPZ50 Phazer FX
- Model code
- 8GN2
- Engine Capacity
- 499
- Year
- 2007
- Sales region
- Finland (010)
- Colour
- Deep Purplish Blue Solid E (DPBSE; 0583)
- Power
- 80 hp
- Model
- Phazer FX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
8GC-2836B-00-00 Tuning Fork Mark |
8GC-2836B-00-00 |
from US $22.24 |
||
| replacement | |||||
|
01
|
01
8GC-2836B-02-00 Tuning Fork Mark |
8GC-2836B-02-00 |
from US $22.24 |
||
|
02
|
02
5PW-2413B-20-00 Emblem |
5PW-2413B-20-00 |
from US $28.34 |
||
|
03
|
03
8GC-77142-00-00 Emblem 2Ur for dpbse |
8GC-77142-00-00 |
from US $12.18 |
||
|
03
|
03
8GN-77142-00-00 Emblem 2Ur for pmib |
8GN-77142-00-00 |
from US $12.75 |
||
|
04
|
04
8GN-7711D-00-00 Graphic 4Ur for dpbse |
8GN-7711D-00-00 |
US $27.97 |
||
|
04
|
04
8GN-7711D-10-00 Graphic 4Ur for pmib |
8GN-7711D-10-00 |
from US $41.31 |
||
|
05
|
05
8GJ-77761-S0-00 Label, Warning 1 |
8GJ-77761-S0-00 |
US $5.38 |
||
|
06
|
06
8GN-1442C-00-00 Graphic Set 1Ur for pmib |
8GN-1442C-00-00 |
from US $19.84 |
||
|
06
|
06
99241-00120-00 Emblem, YamahaUr for dpbse |
99241-00120-00 |
from US $9.92 |
||
|
07
|
07
8GC-1441K-00-00 EmblemUr for dpbse |
8GC-1441K-00-00 |
from US $4.35 |
||
|
07
|
07
8GN-1441C-00-00 Graphic, 1Ur for pmib |
8GN-1441C-00-00 |
US $19.60 |
||
|
08
|
08
8GC-7755B-00-00 Graphic 1Ur for dpbse |
8GC-7755B-00-00 |
US $33.46 |
||
|
08
|
08
8GN-7755B-00-00 Graphic 1Ur for pmib |
8GN-7755B-00-00 |
from US $14.73 |
||
|
09
|
09
8GC-7755C-00-00 Graphic 2Ur for dpbse |
8GC-7755C-00-00 |
US $33.46 |
||
|
09
|
09
8GN-7755B-00-00 Graphic 1Ur for pmib |
8GN-7755B-00-00 |
from US $14.73 |
||
|
10
|
10
8GN-7755A-00-00 Graphic, ProtectorUr for pmib |
8GN-7755A-00-00 |
from US $11.62 |
||
|
10
|
10
99241-00080-00 Emblem, YamahaUr for dpbse |
99241-00080-00 |
from US $8.08 |
||
