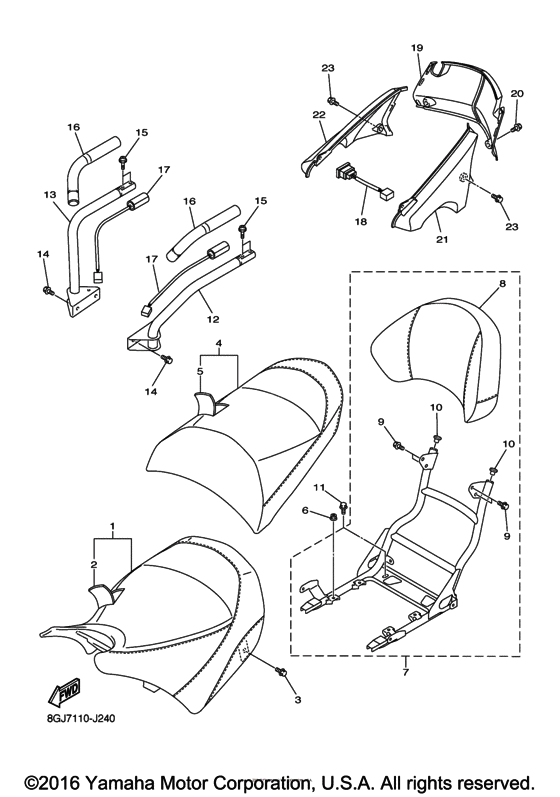

Seat Diagram Yamaha PZ50/ RPZ50 Venture Multi Purpose
- Model code
- 8GRM
- Engine Capacity
- 499
- Year
- 2017
- Sales region
- USA
- Model
- Venture Multi Purpose
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8GJ-24710-10-00 Single Seat Assy |
8GJ-24710-10-00 |
from US $521.05 |
||
|
2
|
2
8GJ-2470F-10-00 Seat Cover Comp |
8GJ-2470F-10-00 |
from US $218.29 |
||
| replacement | |||||
|
2
|
2
8GJ-2470F-11-00 |
8GJ-2470F-11-00 |
from US $218.29 |
||
|
3
|
3
95822-08016-00 Bolt, Flange |
95822-08016-00 |
from US $1.07 |
||
| replacements | |||||
|
3
|
3
95814-08016-00 Bolt, Flange |
95814-08016-00 |
from US $1.21 |
||
|
3
|
3
901-0508X-15-00
Blt,hex,1/4-20X5/8
|
901-0508X-15-00 |
— | ||
|
3
|
3
958-17080-16-00 Bolt, Flange |
958-17080-16-00 |
from US $1.07 |
||
|
4
|
4
8GJ-24750-10-00 Tandem Seat Assy |
8GJ-24750-10-00 |
from US $326.06 |
||
|
5
|
5
8GJ-2470H-10-00 Seat Cover Comp, 2 |
8GJ-2470H-10-00 |
from US $163.03 |
||
|
6
|
6
957-02065-00-00
Nut, Flange
|
957-02065-00-00 |
— | ||
| replacement | |||||
|
6
|
6
95780-06500-00 Nut, Flange |
95780-06500-00 |
from US $1.13 |
||
|
7
|
7
8GJ-24790-10-00 Seat Back Assy |
8GJ-24790-10-00 |
from US $609.84 |
||
|
8
|
8
8GJ-24771-10-00 Semi-Double Seat |
8GJ-24771-10-00 |
from US $315 |
||
| replacement | |||||
|
8
|
8
8GJ-24771-11-00 |
8GJ-24771-11-00 |
from US $315 |
||
|
9
|
9
95802-08014-00 Bolt, Flange |
95802-08014-00 |
from US $1.56 |
||
| replacement | |||||
|
9
|
9
95822-08014-00 Bolt, Flange |
95822-08014-00 |
from US $1.56 |
||
|
10
|
10
8GJ-24742-00-00 Grommet |
8GJ-24742-00-00 |
from US $2.69 |
||
|
11
|
11
95822-08014-00 Bolt, Flange |
95822-08014-00 |
from US $1.56 |
||
|
12
|
12
8GJ-2474A-00-00 Assist, Grip |
8GJ-2474A-00-00 |
from US $111.91 |
||
|
13
|
13
8GJ-2474W-00-00 Assist, Grip 2 |
8GJ-2474W-00-00 |
from US $111.50 |
||
|
14
|
14
95822-08020-00 Bolt, Flange |
95822-08020-00 |
from US $1.07 |
||
| replacement | |||||
|
14
|
14
958-17080-20-00 Bolt, Flange |
958-17080-20-00 |
from US $0.85 |
||
|
15
|
15
92012-06020-00 Bolt, Button Head |
92012-06020-00 |
from US $1.56 |
||
|
16
|
16
8GJ-2842M-00-00 Cover 1 |
8GJ-2842M-00-00 |
from US $13.88 |
||
|
17
|
17
8GR-2474B-00-00 Assist Grip Warmer Assy 1 |
8GR-2474B-00-00 |
from US $56.78 |
||
|
18
|
18
8ET-82917-00-00 Switch |
8ET-82917-00-00 |
from US $108.59 |
||
|
19
|
19
8GJ-24845-00-00 Cover 1 |
8GJ-24845-00-00 |
from US $26.35 |
||
|
20
|
20
90109-06220-00 Bolt |
90109-06220-00 |
from US $1.84 |
||
|
21
|
21
8GJ-24846-00-00 Cover 2 |
8GJ-24846-00-00 |
from US $27.20 |
||
|
22
|
22
8GJ-24844-00-00 Cover 3 |
8GJ-24844-00-00 |
from US $27.20 |
||
|
23
|
23
90109-06220-00 Bolt |
90109-06220-00 |
from US $1.84 |
||
