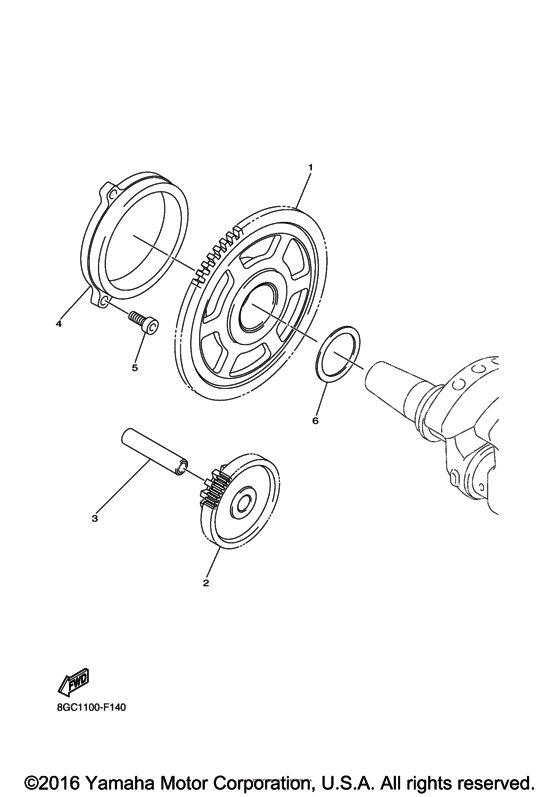

Starter Diagram Yamaha PZ50/ RPZ50 Venture Multi Purpose
- Model code
- 8GRM
- Engine Capacity
- 499
- Year
- 2017
- Sales region
- USA
- Model
- Venture Multi Purpose
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8GC-15515-00-00 Gear 3 |
8GC-15515-00-00 |
from US $99.20 |
||
|
2
|
2
8GC-15512-00-00 Gear, Idler 1 |
8GC-15512-00-00 |
from US $73.09 |
||
|
3
|
3
36Y-15521-01-00 Shaft 1 |
36Y-15521-01-00 |
from US $7.28 |
||
|
4
|
4
8GC-15590-10-00 Starter One-Way Assy |
8GC-15590-10-00 |
from US $151.98 |
||
|
5
|
5
901-10061-68-00
Bolt
|
901-10061-68-00 |
— | ||
| replacements | |||||
|
5
|
5
901-1006X-26-00
Bolt, Hexagon Socket Head(M01)
|
901-1006X-26-00 |
— | ||
|
5
|
5
91312-06014-00 Bolt |
91312-06014-00 |
from US $1.56 |
||
|
6
|
6
90201-30013-00 Washer, Plate |
90201-30013-00 |
from US $1.98 |
||
