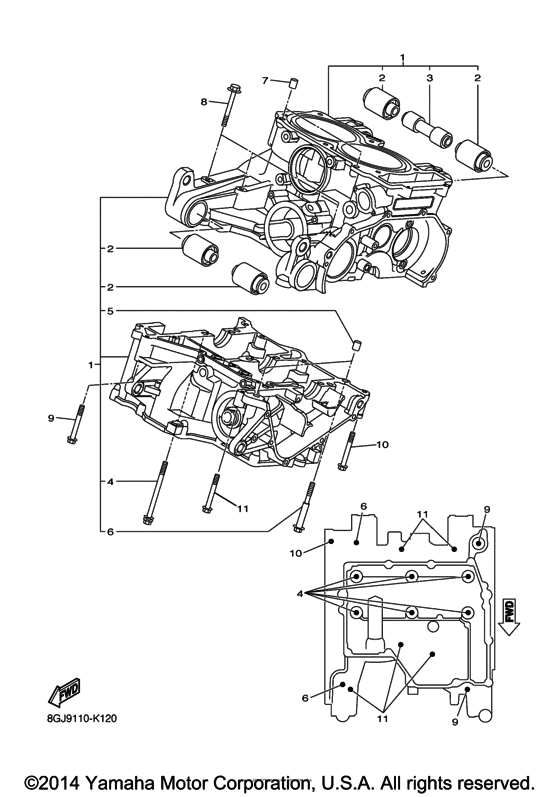

Crankcase Diagram Yamaha PZ50/ RPZ50 Phazer M-TX
- Model code
- 8GPH
- Engine Capacity
- 499
- Year
- 2015
- Sales region
- USA
- Model
- Phazer M-TX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8GN-15100-08-00 Crankcase Assy |
8GN-15100-08-00 |
from US $1,966.80 |
||
|
2
|
2
8GC-2139X-00-00 Damper |
8GC-2139X-00-00 |
from US $24.37 |
||
|
3
|
3
8GC-21459-00-00 Spacer |
8GC-21459-00-00 |
from US $14.31 |
||
|
4
|
4
90119-09004-00 Bolt, With Washer |
90119-09004-00 |
from US $5.38 |
||
|
5
|
5
995-30100-14-00
Pin, Dowel
|
995-30100-14-00 |
— | ||
| replacements | |||||
|
5
|
5
99530-10114-00 Pin, Dowel |
99530-10114-00 |
from US $1.66 |
||
|
5
|
5
995-10101-14-00
Pin, Dowel
|
995-10101-14-00 |
— | ||
|
6
|
6
90109-06100-00 Bolt |
90109-06100-00 |
from US $3.40 |
||
|
7
|
7
99530-10114-00 Pin, Dowel |
99530-10114-00 |
from US $1.66 |
||
|
8
|
8
95812-06070-00 Bolt, Flange |
95812-06070-00 |
from US $1.56 |
||
|
9
|
9
95812-06050-00 Bolt, Flange |
95812-06050-00 |
from US $1.56 |
||
|
10
|
10
90105-06095-00 Bolt, Flange |
90105-06095-00 |
from US $2.98 |
||
|
11
|
11
95812-06035-00 Bolt, Flange |
95812-06035-00 |
from US $1.07 |
||
| replacement | |||||
|
11
|
11
95817-06035-00 Bolt, Flange |
95817-06035-00 |
from US $1.07 |
||
