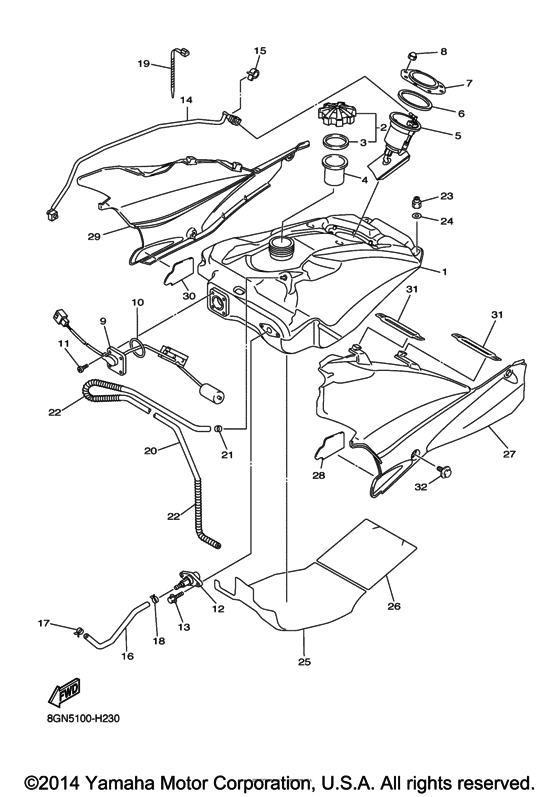

Fuel tank Diagram Yamaha PZ50/ RPZ50 Phazer M-TX
- Model code
- 8GPH
- Engine Capacity
- 499
- Year
- 2015
- Sales region
- USA
- Model
- Phazer M-TX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8GC-24111-10-00 Tank, Fuel |
8GC-24111-10-00 |
from US $674.52 |
||
|
2
|
2
8FG-24610-01-00 Cap Assy |
8FG-24610-01-00 |
from US $19.13 |
||
|
3
|
3
8HV-24641-00-00 Gasket, Cap 1 |
8HV-24641-00-00 |
from US $4.53 |
||
|
4
|
4
8FN-24114-00-00 Tube, Filler |
8FN-24114-00-00 |
from US $5.67 |
||
|
5
|
5
8GC-13907-01-00 Fuel Pump Comp |
8GC-13907-01-00 |
from US $470.58 |
||
| replacements | |||||
|
5
|
5
8GC-13907-02-00 8Gc-13907-03-00 |
8GC-13907-02-00 |
US $647.50 |
||
|
5
|
5
8GC-13907-04-00 |
8GC-13907-04-00 |
from US $470.58 |
||
|
6
|
6
8FP-24486-00-00 O-Ring |
8FP-24486-00-00 |
from US $5.38 |
||
|
7
|
7
8FP-24491-00-00 Bracket, Fuel Pump |
8FP-24491-00-00 |
from US $5.38 |
||
|
8
|
8
95302-06800-00 Nut |
95302-06800-00 |
from US $1.07 |
||
| replacement | |||||
|
8
|
8
95380-06800-00 Nut (J17) |
95380-06800-00 |
from US $1.07 |
||
|
9
|
9
8GK-85752-00-00 Sender Unit Assy, Fuel Meter |
8GK-85752-00-00 |
from US $57.47 |
||
|
10
|
10
93210-41041-00 O-Ring |
93210-41041-00 |
from US $1.70 |
||
|
11
|
11
98902-05008-00 Screw, Bind |
98902-05008-00 |
from US $1.56 |
||
|
12
|
12
8FP-24362-01-00 Valve, Check 1 |
8FP-24362-01-00 |
from US $32.44 |
||
|
13
|
13
958-22060-12-00
Bolt, Flange
|
958-22060-12-00 |
— | ||
| replacements | |||||
|
13
|
13
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.07 |
||
|
13
|
13
95812-06012-00 Bolt, Flange |
95812-06012-00 |
from US $1.07 |
||
|
14
|
14
8GC-24311-10-00 Pipe, Fuel 1 |
8GC-24311-10-00 |
from US $74.05 |
||
|
15
|
15
90464-14004-00 Clamp |
90464-14004-00 |
from US $3.40 |
||
|
16
|
16
8GC-24312-10-00 Pipe 2 |
8GC-24312-10-00 |
US $43.58 |
||
|
17
|
17
90467-13083-00 Clip |
90467-13083-00 |
from US $1.42 |
||
| replacement | |||||
|
17
|
17
90467-13133-00 Clip(3Yx) |
90467-13133-00 |
from US $1.42 |
||
|
18
|
18
90467-13071-00 Clip |
90467-13071-00 |
from US $1.42 |
||
| replacement | |||||
|
18
|
18
90467-13133-00 Clip(3Yx) |
90467-13133-00 |
from US $1.42 |
||
|
19
|
19
90464-13077-00 Clamp |
90464-13077-00 |
from US $1.70 |
||
| replacement | |||||
|
19
|
19
904-64151-95-00 Clamp |
904-64151-95-00 |
from US $1.35 |
||
|
20
|
20
8GC-24313-00-00 Pipe 3 |
8GC-24313-00-00 |
from US $10.06 |
||
|
21
|
21
90468-02078-00 Clip |
90468-02078-00 |
from US $2.69 |
||
|
22
|
22
90501-08668-00 Spring, Compression |
90501-08668-00 |
from US $4.53 |
||
|
23
|
23
95702-08300-00 Nut, Flange |
95702-08300-00 |
from US $1.57 |
||
| replacement | |||||
|
23
|
23
957-17083-00-00 Nut, Flange |
957-17083-00-00 |
from US $3.26 |
||
|
24
|
24
90201-08784-00 Washer, Plate |
90201-08784-00 |
from US $1.70 |
||
|
25
|
25
8GC-2416F-00-00 Insulator, Fuel Tank 1 |
8GC-2416F-00-00 |
from US $87.32 |
||
|
26
|
26
8GC-2416G-01-00 Insulator, Fuel Tank 2 |
8GC-2416G-01-00 |
from US $29.89 |
||
|
27
|
27
8GC-24129-00-00 Cover, Side 1 |
8GC-24129-00-00 |
from US $52.50 |
||
|
28
|
28
8GC-8253E-00-00 Insulator 1 |
8GC-8253E-00-00 |
from US $6.09 |
||
|
29
|
29
8GC-24139-00-00 Cover, Side 2 |
8GC-24139-00-00 |
from US $52.50 |
||
|
30
|
30
8GC-8253F-00-00 Insulator 2 |
8GC-8253F-00-00 |
from US $6.09 |
||
|
31
|
31
8GC-24173-00-00 Band, Tank Fitting 1 |
8GC-24173-00-00 |
from US $4.11 |
||
|
32
|
32
90109-06220-00 Bolt |
90109-06220-00 |
from US $1.84 |
||
