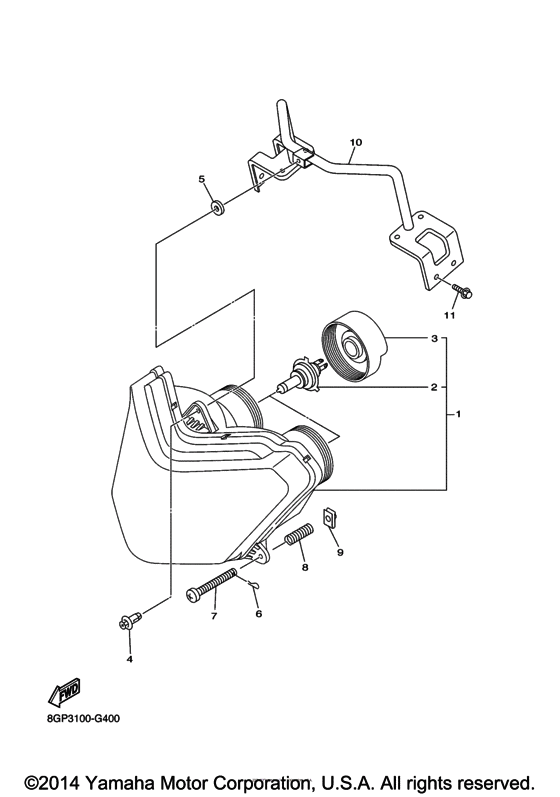

Headlight Diagram Yamaha PZ50/ RPZ50 Phazer M-TX
- Model code
- 8GPH
- Engine Capacity
- 499
- Year
- 2015
- Sales region
- USA
- Model
- Phazer M-TX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8GK-84310-00-00 Headlight Unit Assy |
8GK-84310-00-00 |
from US $142.30 |
||
|
2
|
2
8G9-84314-00-00 Bulb (12V 60/55W Halogen)(H4) HALOGEN |
8G9-84314-00-00 |
from US $42.42 |
||
| replacements | |||||
|
2
|
2
5V2-84314-00-XX
Bulb (12V-60/55W)
(H4) HALOGEN |
5V2-84314-00-XX |
— | ||
|
2
|
2
YMC-00903-00-00
Headlight Bulb 12V 60/55W H4
(H4) HALOGEN |
YMC-00903-00-00 |
— | ||
|
2
|
2
5VK-H4314-00-00 Bulb, Headlight(H4) HALOGEN |
5VK-H4314-00-00 |
US $42.42 |
||
|
2
|
2
2F9-84314-00-00 Bulb (12V 60/55W Halogen)(H4) HALOGEN |
2F9-84314-00-00 |
from US $29.16 |
||
|
2
|
2
8V0-84314-10-00 Bulb, Headlight(H4) HALOGEN |
8V0-84314-10-00 |
from US $42.42 |
||
|
3
|
3
8GK-84397-01-00 Cover, Socket |
8GK-84397-01-00 |
from US $15.44 |
||
|
4
|
4
902-69060-46-00
Rivet
|
902-69060-46-00 |
— | ||
| replacement | |||||
|
4
|
4
902-69060-01-00 Rivet |
902-69060-01-00 |
from US $1.34 |
||
|
5
|
5
90202-06008-00 Washer, Plate |
90202-06008-00 |
from US $2.69 |
||
|
6
|
6
8K4-84374-00-00 Clip |
8K4-84374-00-00 |
from US $1.56 |
||
|
7
|
7
8A5-84331-00-00 Screw, Rim Adjusting |
8A5-84331-00-00 |
from US $7.08 |
||
| replacement | |||||
|
7
|
7
8M6-84331-00-00 Screw, Rim Adjusting |
8M6-84331-00-00 |
from US $7.08 |
||
|
8
|
8
8A5-84332-00-00 Spring, Adjust Screw |
8A5-84332-00-00 |
from US $1.56 |
||
|
9
|
9
90183-050A9-00 Nut, Spring |
90183-050A9-00 |
from US $8.78 |
||
|
10
|
10
8GK-84118-00-00 Stay, Headlight 1 |
8GK-84118-00-00 |
from US $31.17 |
||
|
11
|
11
958-22060-12-00
Bolt, Flange
|
958-22060-12-00 |
— | ||
| replacements | |||||
|
11
|
11
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.07 |
||
|
11
|
11
95812-06012-00 Bolt, Flange |
95812-06012-00 |
from US $1.07 |
||
