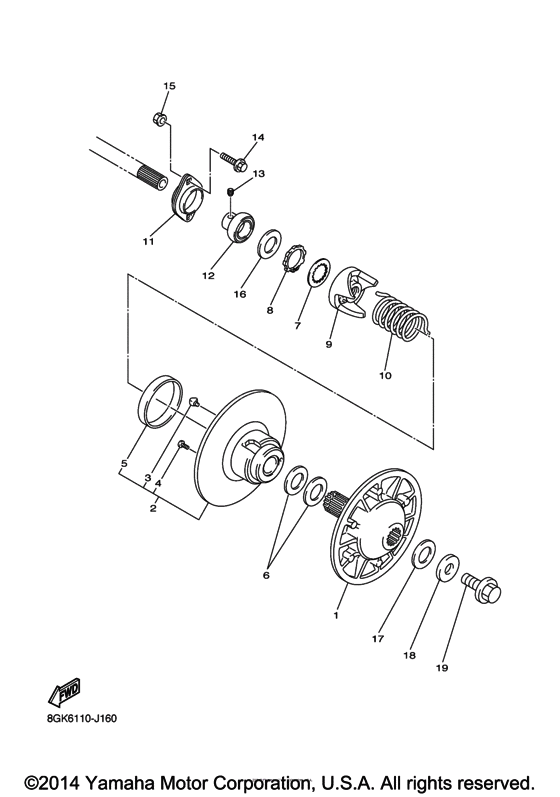

Secondary sheave Diagram Yamaha PZ50/ RPZ50 Phazer M-TX
- Model code
- 8GPH
- Engine Capacity
- 499
- Year
- 2015
- Sales region
- USA
- Model
- Phazer M-TX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
88R-17660-03-00 Secondary Fixed Sheave Comp |
88R-17660-03-00 |
from US $208.62 |
||
|
2
|
2
8GC-17670-00-00 Secondary Sliding Sheave |
8GC-17670-00-00 |
from US $169.94 |
||
|
3
|
3
8GC-17688-00-00 Shoe, Ramp |
8GC-17688-00-00 |
from US $1.42 |
||
|
4
|
4
90154-06062-00 Screw, Bind |
90154-06062-00 |
from US $1.56 |
||
| replacement | |||||
|
4
|
4
98907-06016-00 Screw, Bind |
98907-06016-00 |
from US $1.56 |
||
|
5
|
5
90384-90081-00 Bush, Bimetal Formed |
90384-90081-00 |
from US $17.99 |
||
|
6
|
6
90201-345G2-00 Washer, Plate |
90201-345G2-00 |
from US $3.68 |
||
|
7
|
7
90214-29060-00 Washer, Claw |
90214-29060-00 |
from US $4.39 |
||
|
8
|
8
93440-34170-00 Circlip |
93440-34170-00 |
from US $3.40 |
||
|
9
|
9
8AT-17684-01-00 Seat, Secondary Spring |
8AT-17684-01-00 |
from US $66.87 |
||
|
10
|
10
90508-55007-00 Spring, Torsion |
90508-55007-00 |
from US $22.24 |
||
|
11
|
11
8CR-47631-01-00 Housing, Bearing |
8CR-47631-01-00 |
from US $12.04 |
||
|
12
|
12
933-99999-43-00 Bearing |
933-99999-43-00 |
from US $23.57 |
||
|
13
|
13
901-13060-64-00
Bolt, Set
|
901-13060-64-00 |
— | ||
| replacement | |||||
|
13
|
13
901-13060-06-00 Bolt, Set |
901-13060-06-00 |
from US $4.39 |
||
|
14
|
14
95022-08025-00 Bolt, Flange |
95022-08025-00 |
from US $1.56 |
||
|
15
|
15
95602-08200-00 Nut, U Flange |
95602-08200-00 |
from US $1.84 |
||
| replacement | |||||
|
15
|
15
901-85081-69-00 Nut, Self-Locking |
901-85081-69-00 |
from US $2.13 |
||
|
16
|
16
90201-25526-00 Washer, Plate (T2.0) |
90201-25526-00 |
from US $2.24 |
||
|
17
|
17
90201-25527-00 Washer, Plate (T1.0)UR UN |
90201-25527-00 |
from US $1.50 |
||
|
17
|
17
90201-252F1-00 Washer, Plate (T0.5)UR UN |
90201-252F1-00 |
from US $1.56 |
||
|
18
|
18
90201-141A3-00 Washer, Plate |
90201-141A3-00 |
from US $3.83 |
||
| replacement | |||||
|
18
|
18
90201-14022-00 Washer, Plate |
90201-14022-00 |
from US $3.83 |
||
|
19
|
19
90105-14002-00 Bolt, Flange |
90105-14002-00 |
from US $6.94 |
||
