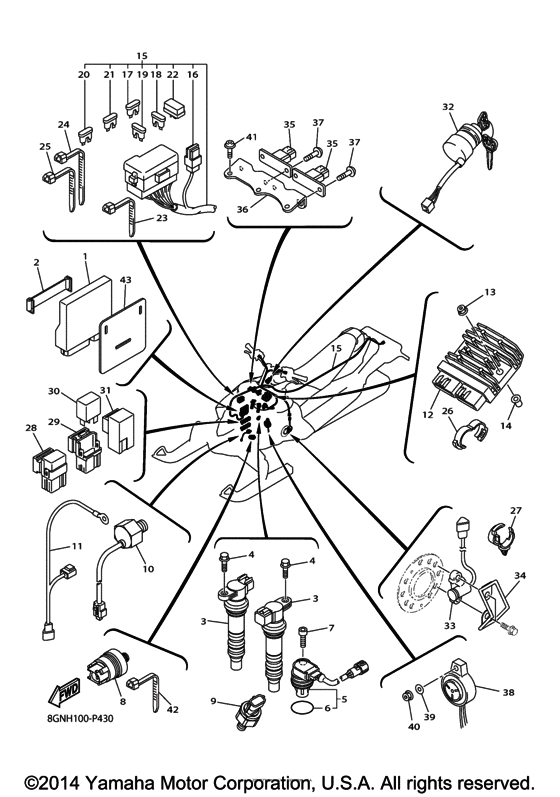

Electrical 1 Diagram Yamaha PZ50/ RPZ50 Phazer R-TX
- Model code
- 8GNH
- Engine Capacity
- 499
- Year
- 2015
- Sales region
- USA
- Model
- Phazer R-TX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8GN-8591A-10-00 Engine Control Unit Assy |
8GN-8591A-10-00 |
from US $823.68 |
||
|
2
|
2
2T4-82131-00-00 Band, Battery |
2T4-82131-00-00 |
from US $9.42 |
||
|
3
|
3
8FP-82310-00-00 Ignition Coil Assy |
8FP-82310-00-00 |
from US $111.63 |
||
|
4
|
4
95812-06025-00 Bolt, Flange |
95812-06025-00 |
from US $1.07 |
||
| replacements | |||||
|
4
|
4
958-17060-25-00
Bolt, Flange
|
958-17060-25-00 |
— | ||
|
4
|
4
95822-06025-00 Bolt, Flange |
95822-06025-00 |
from US $0.99 |
||
|
5
|
5
8GC-85896-01-00 Sensor, Cam Position |
8GC-85896-01-00 |
from US $92.98 |
||
| replacement | |||||
|
5
|
5
8GC-85896-02-00 Sensor, Cam Position |
8GC-85896-02-00 |
from US $92.98 |
||
|
6
|
6
4D9-81168-00-00 O-Ring |
4D9-81168-00-00 |
from US $3.40 |
||
|
7
|
7
901-10061-75-00
Bolt, Hexagon Socket Head
|
901-10061-75-00 |
— | ||
| replacements | |||||
|
7
|
7
913-14060-20-00 Bolt |
913-14060-20-00 |
from US $1.07 |
||
|
7
|
7
91312-06020-00 Bolt, Hexagon Socket Head |
91312-06020-00 |
from US $1.21 |
||
|
8
|
8
8FP-82504-00-00 Oil Pressure Switch Assy |
8FP-82504-00-00 |
from US $46.84 |
||
|
9
|
9
8GN-83651-00-00 Sender, Oil Pressure |
8GN-83651-00-00 |
from US $230.73 |
||
|
10
|
10
8GC-85780-00-00 Sensor, Knock |
8GC-85780-00-00 |
from US $115.23 |
||
|
11
|
11
8GC-81515-10-00 Lead Wire Assy |
8GC-81515-10-00 |
from US $24.65 |
||
|
12
|
12
1D7-81960-01-00 Rectifier & Regulator Assy |
1D7-81960-01-00 |
from US $219.67 |
||
|
13
|
13
95602-06200-00 Nut, U Flange |
95602-06200-00 |
from US $1.56 |
||
| replacement | |||||
|
13
|
13
95604-06200-00 Nut, U Flange |
95604-06200-00 |
from US $1.56 |
||
|
14
|
14
90387-06M45-00 Collar |
90387-06M45-00 |
from US $6.09 |
||
|
15
|
15
8GN-82590-50-00 Wire Harness Assy |
8GN-82590-50-00 |
from US $553.78 |
||
|
16
|
16
5PS-82151-00-00 Slow Blow Fuse |
5PS-82151-00-00 |
from US $6.52 |
||
| replacement | |||||
|
16
|
16
JR9-82151-00-00 Fuse (40A) |
JR9-82151-00-00 |
from US $6.09 |
||
|
17
|
17
5JJ-82151-10-00 Fuse (15A-Bl) |
5JJ-82151-10-00 |
US $2.83 |
||
| replacement | |||||
|
17
|
17
67F-82151-50-00 Fuse (15A) |
67F-82151-50-00 |
from US $1.98 |
||
|
18
|
18
5JJ-82151-20-00 Fuse (20A-Bl) |
5JJ-82151-20-00 |
from US $3.54 |
||
|
19
|
19
5JJ-82151-00-00 Fuse (7.5A-Bl) |
5JJ-82151-00-00 |
from US $2.98 |
||
|
20
|
20
5JJ-82151-40-00 Fuse (4A-Bl) |
5JJ-82151-40-00 |
from US $3.54 |
||
|
21
|
21
5JJ-82151-50-00 Fuse (3A) |
5JJ-82151-50-00 |
from US $3.54 |
||
| replacement | |||||
|
21
|
21
67F-82151-30-00 Fuse (3A) |
67F-82151-30-00 |
from US $2.41 |
||
|
22
|
22
4WA-81980-00-00 Diode Assy |
4WA-81980-00-00 |
from US $15.30 |
||
|
23
|
23
90464-12045-00 Band, Switch Cord |
90464-12045-00 |
from US $1.56 |
||
| replacement | |||||
|
23
|
23
25G-83936-01-00 Band, Switch Cord |
25G-83936-01-00 |
from US $1.56 |
||
|
24
|
24
904-64151-95-00 Clamp |
904-64151-95-00 |
from US $1.35 |
||
|
25
|
25
904-64130-73-00
Clamp
|
904-64130-73-00 |
— | ||
| replacement | |||||
|
25
|
25
904-64151-95-00 Clamp |
904-64151-95-00 |
from US $1.35 |
||
|
26
|
26
90464-16001-00 Clamp |
90464-16001-00 |
from US $1.84 |
||
|
27
|
27
90464-20181-00 Clamp |
90464-20181-00 |
from US $1.70 |
||
|
28
|
28
5DM-81950-00-00
Relay Assy (G8Hn-1C4T-Dj-Y52)
|
5DM-81950-00-00 |
— | ||
| replacement | |||||
|
28
|
28
5DM-81950-01-00 RELAY ASSY (G8HN-1C4T-DJ-Y52) |
5DM-81950-01-00 |
from US $20.12 |
||
|
29
|
29
8HG-81951-10-00 Relay Assy (8Hg-10) |
8HG-81951-10-00 |
from US $8.50 |
||
|
30
|
30
8HG-81952-00-00 Holder, Relay |
8HG-81952-00-00 |
from US $2.69 |
||
|
31
|
31
8GN-81950-00-00 Relay Assy (8Gn-00) |
8GN-81950-00-00 |
from US $12.75 |
||
|
32
|
32
8HV-82510-00-00 Main Switch Assy |
8HV-82510-00-00 |
from US $60.51 |
||
|
33
|
33
8GK-83755-12-00 Sensor, Speed |
8GK-83755-12-00 |
from US $58.86 |
||
|
34
|
34
8GC-2198G-00-00 Cover 2 |
8GC-2198G-00-00 |
from US $17.57 |
||
|
35
|
35
5PS-82380-00-00 Sensor, Pressure |
5PS-82380-00-00 |
from US $163.03 |
||
|
36
|
36
8GC-1441L-00-00 Panel 1 |
8GC-1441L-00-00 |
from US $9.63 |
||
|
37
|
37
985-02060-12-00
Screw, Pan Head
|
985-02060-12-00 |
— | ||
| replacement | |||||
|
37
|
37
985-17060-12-00 Screw, Pan Head |
985-17060-12-00 |
from US $1.34 |
||
|
38
|
38
8GL-83383-00-00 Buzzer |
8GL-83383-00-00 |
from US $52.09 |
||
|
39
|
39
90201-05043-00 Washer, Plate |
90201-05043-00 |
from US $1.70 |
||
|
40
|
40
95702-05500-00 Nut, With Washer |
95702-05500-00 |
from US $0.50 |
||
| replacement | |||||
|
40
|
40
95707-05500-00 Nut, Flange |
95707-05500-00 |
from US $1.07 |
||
|
41
|
41
92012-05008-00 Bolt, Button Head |
92012-05008-00 |
from US $1.56 |
||
|
42
|
42
90464-13077-00 Clamp |
90464-13077-00 |
from US $1.70 |
||
| replacement | |||||
|
42
|
42
904-64151-95-00 Clamp |
904-64151-95-00 |
from US $1.35 |
||
|
43
|
43
8GC-77152-00-00 Pad 2 |
8GC-77152-00-00 |
from US $6.09 |
||
