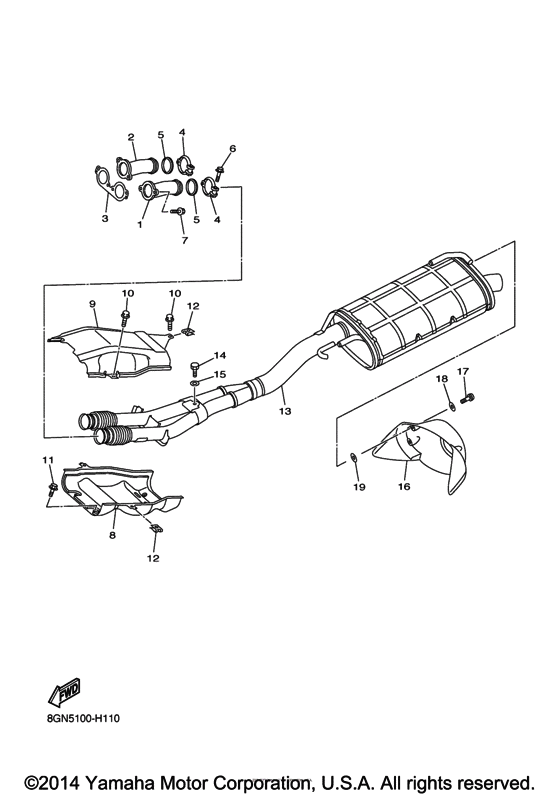

Exhaust Diagram Yamaha PZ50/ RPZ50 Phazer R-TX
- Model code
- 8GNH
- Engine Capacity
- 499
- Year
- 2015
- Sales region
- USA
- Model
- Phazer R-TX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8GC-14615-01-00 Joint, Exhaust 1 |
8GC-14615-01-00 |
from US $60.93 |
||
|
2
|
2
8GC-14625-01-00 Joint, Exhaust 2 |
8GC-14625-01-00 |
from US $60.93 |
||
|
3
|
3
8GC-14613-10-00 Gasket, Exhaust Pipe |
8GC-14613-10-00 |
from US $17.43 |
||
|
4
|
4
8GC-14715-01-00 Band, Muffler |
8GC-14715-01-00 |
from US $36.34 |
||
|
5
|
5
8HG-14623-00-00 Gasket, Exhaust Pipe |
8HG-14623-00-00 |
from US $10.63 |
||
|
6
|
6
90109-06031-00 Bolt |
90109-06031-00 |
from US $1.34 |
||
|
7
|
7
95022-08020-00 Bolt, Flange |
95022-08020-00 |
from US $1.56 |
||
|
8
|
8
8GC-14627-01-00 Cover, Exhaust |
8GC-14627-01-00 |
from US $80.41 |
||
|
9
|
9
8GC-14637-00-00 Exhaust Cover Ass'y |
8GC-14637-00-00 |
from US $93.81 |
||
|
10
|
10
95022-06010-00 Bolt, Flange |
95022-06010-00 |
from US $1.34 |
||
|
11
|
11
95822-06010-00 Bolt, Flange |
95822-06010-00 |
from US $0.90 |
||
| replacements | |||||
|
11
|
11
95817-06010-00 Bolt, Flange |
95817-06010-00 |
from US $1.07 |
||
|
11
|
11
95812-06010-00 Bolt, Flange |
95812-06010-00 |
from US $1.07 |
||
|
12
|
12
90183-060A2-00 Nut, Spring |
90183-060A2-00 |
from US $1.70 |
||
|
13
|
13
8GC-14750-02-00 Silencer Assy |
8GC-14750-02-00 |
from US $1,236.84 |
||
|
14
|
14
97012-08016-00 Bolt |
97012-08016-00 |
from US $1.42 |
||
| replacement | |||||
|
14
|
14
97017-08016-00 Bolt |
97017-08016-00 |
from US $1.42 |
||
|
15
|
15
90201-08048-00 Washer, Plate |
90201-08048-00 |
from US $1.70 |
||
|
16
|
16
8GC-14799-00-00 Cap |
8GC-14799-00-00 |
from US $36.75 |
||
|
17
|
17
90159-06036-00 Screw, With Washer |
90159-06036-00 |
from US $5.29 |
||
| replacement | |||||
|
17
|
17
90159-06005-00 Screw, With Washer |
90159-06005-00 |
from US $5.81 |
||
|
18
|
18
90201-05037-00 Washer, Plate |
90201-05037-00 |
from US $2.55 |
||
|
19
|
19
90201-05015-00 Washer, Plate |
90201-05015-00 |
from US $2.69 |
||
