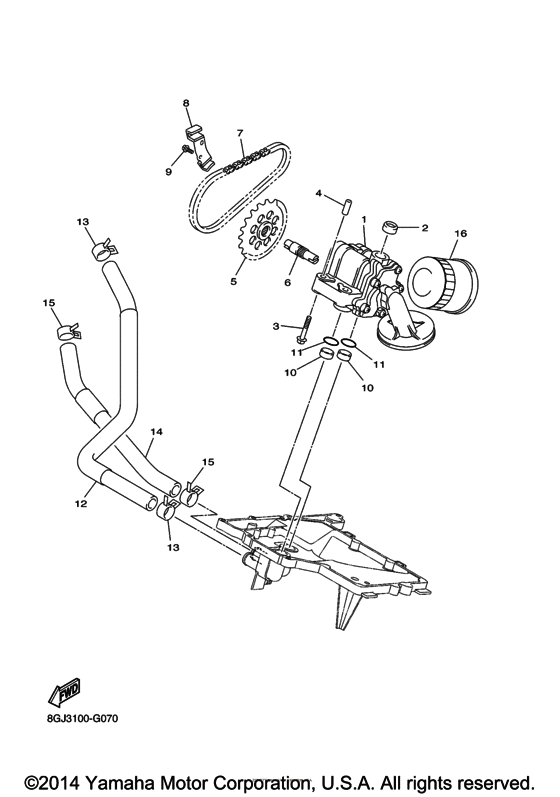

Oil pump Diagram Yamaha PZ50/ RPZ50 Phazer R-TX
- Model code
- 8GNH
- Engine Capacity
- 499
- Year
- 2015
- Sales region
- USA
- Model
- Phazer R-TX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8GC-13300-00-00 Oil Pump Assy |
8GC-13300-00-00 |
from US $212.77 |
||
|
2
|
2
5GJ-13475-00-00 Gasket |
5GJ-13475-00-00 |
from US $2.69 |
||
|
3
|
3
95812-06040-00 Bolt, Flange |
95812-06040-00 |
from US $1.21 |
||
| replacement | |||||
|
3
|
3
95817-06040-00 Bolt, Flange |
95817-06040-00 |
from US $1.21 |
||
|
4
|
4
99530-08012-00 Pin, Dowel |
99530-08012-00 |
from US $1.07 |
||
|
5
|
5
8GC-13355-10-00 Sprocket, Driven |
8GC-13355-10-00 |
from US $62.72 |
||
|
6
|
6
8GC-13344-10-00 Shaft, Driven Gear |
8GC-13344-10-00 |
from US $30.04 |
||
|
7
|
7
94581-94068-00 Chain |
94581-94068-00 |
from US $32.02 |
||
|
8
|
8
8GC-13898-10-00 Holder |
8GC-13898-10-00 |
from US $10.34 |
||
|
9
|
9
90105-06063-00 Bolt, Flange |
90105-06063-00 |
from US $1.70 |
||
| replacement | |||||
|
9
|
9
90105-06090-00 Bolt, Flange |
90105-06090-00 |
from US $1.70 |
||
|
10
|
10
90387-13005-00 Collar |
90387-13005-00 |
from US $1.98 |
||
|
11
|
11
93210-15566-00 O-Ring (22U) |
93210-15566-00 |
from US $1.35 |
||
|
12
|
12
8GC-13464-00-00 Hose, Oil 1 |
8GC-13464-00-00 |
from US $30.04 |
||
|
13
|
13
90467-22097-00 Clip(34X) |
90467-22097-00 |
from US $1.70 |
||
|
14
|
14
8GC-13465-00-00 Hose, Oil 2 |
8GC-13465-00-00 |
from US $19.55 |
||
|
15
|
15
90467-22097-00 Clip(34X) |
90467-22097-00 |
from US $1.70 |
||
|
16
|
16
5DM-13440-00-00 Element Assy, Oil Cleaner |
5DM-13440-00-00 |
from US $26.41 |
||
