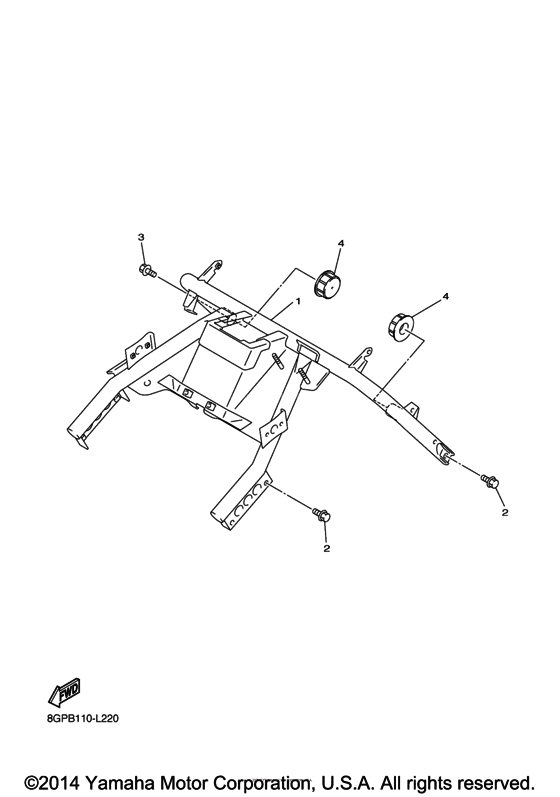

Steering gate Diagram Yamaha PZ50/ RPZ50 Phazer R-TX
- Model code
- 8GNH
- Engine Capacity
- 499
- Year
- 2015
- Sales region
- USA
- Model
- Phazer R-TX
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8GC-23870-01-00 Steering Gate Comp |
8GC-23870-01-00 |
from US $279.08 |
||
|
2
|
2
95812-08016-00 Bolt, Flange |
95812-08016-00 |
from US $1.07 |
||
| replacements | |||||
|
2
|
2
901-0508X-15-00
Blt,hex,1/4-20X5/8
|
901-0508X-15-00 |
— | ||
|
2
|
2
958-17080-16-00 Bolt, Flange |
958-17080-16-00 |
from US $1.07 |
||
|
3
|
3
95812-08014-00 Bolt, Flange |
95812-08014-00 |
US $1.56 |
||
| replacement | |||||
|
3
|
3
958-17080-14-00 Bolt, Flange |
958-17080-14-00 |
from US $1.34 |
||
|
4
|
4
4H7-24181-00-00 Damper, Locating 1 |
4H7-24181-00-00 |
from US $7.93 |
||
