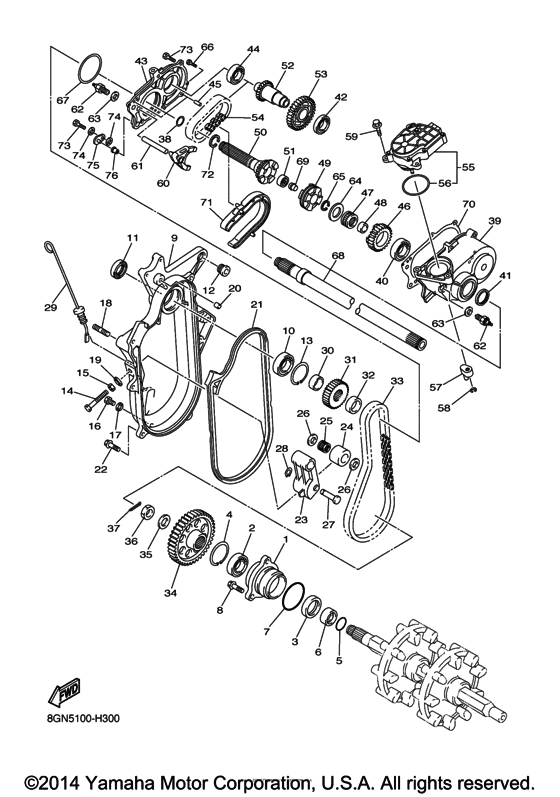

Track drive 2 Diagram Yamaha PZ50/ RPZ50 Phazer R-TX
- Model code
- 8GNH
- Engine Capacity
- 499
- Year
- 2015
- Sales region
- USA
- Model
- Phazer R-TX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8GC-47633-00-00 Housing, Bearing 2 |
8GC-47633-00-00 |
from US $41.72 |
||
|
2
|
2
93306-20592-00 Bearing |
93306-20592-00 |
from US $33.15 |
||
|
3
|
3
93102-35010-00 Oil Seal |
93102-35010-00 |
from US $6.94 |
||
|
4
|
4
99009-52500-00 Circlip |
99009-52500-00 |
from US $4.96 |
||
|
5
|
5
93210-25071-00 O-Ring |
93210-25071-00 |
from US $1.98 |
||
|
6
|
6
90387-2508C-00 Collar |
90387-2508C-00 |
from US $14.45 |
||
|
7
|
7
93210-62269-00 O-Ring |
93210-62269-00 |
from US $5.96 |
||
|
8
|
8
95822-08025-00 Bolt, Flange |
95822-08025-00 |
from US $1.07 |
||
| replacement | |||||
|
8
|
8
95817-08025-00 Bolt, Flange |
95817-08025-00 |
from US $1.07 |
||
|
9
|
9
8GC-47543-01-00 Cap, Housing |
8GC-47543-01-00 |
from US $192.04 |
||
|
10
|
10
933-06005-01-00
Bearing
|
933-06005-01-00 |
— | ||
| replacement | |||||
|
10
|
10
933-06005-19-00 Bearing |
933-06005-19-00 |
from US $14.88 |
||
|
11
|
11
93102-32337-00 Oil Seal |
93102-32337-00 |
from US $12.33 |
||
| replacement | |||||
|
11
|
11
93102-32M07-00 Oil Seal |
93102-32M07-00 |
from US $9.26 |
||
|
12
|
12
90179-10679-00 Nut |
90179-10679-00 |
from US $5.53 |
||
|
13
|
13
990-09475-00-00 Circlip |
990-09475-00-00 |
from US $2.32 |
||
|
14
|
14
90101-10026-00 Bolt |
90101-10026-00 |
from US $4.25 |
||
|
15
|
15
95302-10600-00 Nut, Hexagon |
95302-10600-00 |
from US $1.66 |
||
| replacement | |||||
|
15
|
15
95314-10600-00 Nut |
95314-10600-00 |
from US $1.45 |
||
|
16
|
16
97002-08014-00 Bolt |
97002-08014-00 |
from US $1.42 |
||
| replacement | |||||
|
16
|
16
97017-08016-00 Bolt |
97017-08016-00 |
from US $1.42 |
||
|
17
|
17
90210-08017-00 Washer, Seal |
90210-08017-00 |
from US $1.98 |
||
|
18
|
18
95627-08618-00 Bolt, Stud (95627-08618-00) |
95627-08618-00 |
from US $2.27 |
||
| replacement | |||||
|
18
|
18
95617-08618-00 Bolt, Stud |
95617-08618-00 |
from US $2.27 |
||
|
19
|
19
90210-10004-00 Washer, Seal |
90210-10004-00 |
from US $3.83 |
||
|
20
|
20
91811-10005-00 Pin, Dowel |
91811-10005-00 |
from US $2.69 |
||
|
21
|
21
8GC-47558-00-00 Ring, Housing |
8GC-47558-00-00 |
from US $19.41 |
||
|
22
|
22
95822-08030-00 Bolt, Flange |
95822-08030-00 |
from US $1.07 |
||
| replacement | |||||
|
22
|
22
95817-08030-00 Bolt, Flange |
95817-08030-00 |
from US $1.07 |
||
|
23
|
23
8GC-47613-00-00 Holder |
8GC-47613-00-00 |
from US $11.48 |
||
|
24
|
24
8FA-47612-00-00 Wheel |
8FA-47612-00-00 |
from US $17.43 |
||
|
25
|
25
93310-212R6-00 Bearing |
93310-212R6-00 |
from US $20.12 |
||
|
26
|
26
90201-127E1-00 Washer, Plate |
90201-127E1-00 |
from US $1.70 |
||
| replacement | |||||
|
26
|
26
90201-125L6-00 Washer, Plate(1Re) |
90201-125L6-00 |
from US $1.84 |
||
|
27
|
27
90249-12003-00 Pin |
90249-12003-00 |
from US $9.35 |
||
|
28
|
28
99009-12400-00 Circlip |
99009-12400-00 |
from US $1.56 |
||
|
29
|
29
8GC-47546-00-00 Level, Oil |
8GC-47546-00-00 |
from US $18.99 |
||
|
30
|
30
90387-25020-00 Collar |
90387-25020-00 |
from US $9.78 |
||
|
31
|
31
8GC-17682-80-00 Sprocket, Chain Drive (18T) |
8GC-17682-80-00 |
from US $46.84 |
||
|
32
|
32
90387-250V9-00 Collar |
90387-250V9-00 |
from US $9.21 |
||
|
33
|
33
945-91630-80-00 Chain (80L) |
945-91630-80-00 |
from US $107.35 |
||
|
34
|
34
8GC-47587-10-00 Sprocket, Chain Driven (41T) |
8GC-47587-10-00 |
from US $83.72 |
||
|
35
|
35
90208-22001-00 Washer, Conical Spring |
90208-22001-00 |
from US $4.39 |
||
|
36
|
36
90170-22094-00 Nut |
90170-22094-00 |
from US $7.94 |
||
|
37
|
37
91402-30030-00 Pin, Cotter |
91402-30030-00 |
US $1.13 |
||
| replacement | |||||
|
37
|
37
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.13 |
||
|
38
|
38
93210-20001-00 O-Ring |
93210-20001-00 |
from US $4.96 |
||
|
39
|
39
8GR-46291-01-00 Case 1 |
8GR-46291-01-00 |
from US $138.16 |
||
|
40
|
40
933-06005-01-00
Bearing
|
933-06005-01-00 |
— | ||
| replacement | |||||
|
40
|
40
933-06005-19-00 Bearing |
933-06005-19-00 |
from US $14.88 |
||
|
41
|
41
931-02271-69-00 Oil Seal |
931-02271-69-00 |
from US $14.31 |
||
|
42
|
42
93316-00404-00 Bearing |
93316-00404-00 |
from US $18.14 |
||
|
43
|
43
8GR-46292-01-00 Case 2 |
8GR-46292-01-00 |
from US $111.08 |
||
|
44
|
44
933-06004-01-00
Bearing
|
933-06004-01-00 |
— | ||
| replacements | |||||
|
44
|
44
93306-00423-00 Bearing (7K2) |
93306-00423-00 |
from US $12.75 |
||
|
44
|
44
93306-00426-00 Bearing (5Y1) |
93306-00426-00 |
from US $12.33 |
||
|
45
|
45
93605-17137-00 Pin, Dowel |
93605-17137-00 |
from US $1.28 |
||
| replacement | |||||
|
45
|
45
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
46
|
46
8GJ-17143-00-00 Gear, Reverse Pinion 1 (24T) |
8GJ-17143-00-00 |
from US $87.04 |
||
|
47
|
47
93310-330S2-00 Bearing |
93310-330S2-00 |
from US $17.85 |
||
|
48
|
48
90387-25019-00 Collar |
90387-25019-00 |
from US $17.71 |
||
|
49
|
49
8GJ-17492-00-00 Dog, Transmission Shift |
8GJ-17492-00-00 |
from US $116.88 |
||
|
50
|
50
8GJ-17523-01-00 Shaft |
8GJ-17523-01-00 |
from US $388.74 |
||
|
51
|
51
93315-21813-00 Bearing |
93315-21813-00 |
from US $7.62 |
||
|
52
|
52
8GJ-17431-00-00 Axle, Counter |
8GJ-17431-00-00 |
from US $122.13 |
||
|
53
|
53
8GJ-17243-00-00 Gear, Reverse Wheel 1 (32T) |
8GJ-17243-00-00 |
from US $84.69 |
||
|
54
|
54
94591-60044-00 Chain (44L) |
94591-60044-00 |
from US $26.64 |
||
|
55
|
55
8GJ-4616A-01-00 Servo Motor Comp |
8GJ-4616A-01-00 |
from US $203.10 |
||
|
56
|
56
93210-50768-00 O-Ring |
93210-50768-00 |
from US $3.40 |
||
|
57
|
57
8GJ-46386-00-00 Arm, Shift |
8GJ-46386-00-00 |
from US $43.80 |
||
|
58
|
58
990-02046-00-00
Circlip
|
990-02046-00-00 |
— | ||
| replacement | |||||
|
58
|
58
99080-04600-00 Circlip |
99080-04600-00 |
from US $1.34 |
||
|
59
|
59
95802-08020-00 Bolt, Flange |
95802-08020-00 |
from US $0.85 |
||
| replacement | |||||
|
59
|
59
958-17080-20-00 Bolt, Flange |
958-17080-20-00 |
from US $0.85 |
||
|
60
|
60
8GJ-18511-00-00 Fork, Shift 1 |
8GJ-18511-00-00 |
from US $156.12 |
||
|
61
|
61
8GJ-18318-00-00 Shaft, Shifter |
8GJ-18318-00-00 |
from US $8.50 |
||
|
62
|
62
3GD-82540-11-00 Neutral Switch Assy |
3GD-82540-11-00 |
from US $20.84 |
||
|
63
|
63
90430-10M11-00 Gasket |
90430-10M11-00 |
from US $1.98 |
||
|
64
|
64
90201-25291-00 Washer, Plate |
90201-25291-00 |
from US $1.56 |
||
|
65
|
65
99009-25400-00 Circlip |
99009-25400-00 |
from US $1.56 |
||
|
66
|
66
91312-05016-00 Bolt |
91312-05016-00 |
US $1.42 |
||
| replacement | |||||
|
66
|
66
91317-05016-00 Bolt |
91317-05016-00 |
from US $1.22 |
||
|
67
|
67
932-1065M-50-00 O-Ring |
932-1065M-50-00 |
from US $3.64 |
||
|
68
|
68
8GK-17681-01-00 Shaft, Secondary |
8GK-17681-01-00 |
from US $251.45 |
||
|
69
|
69
82M-17699-00-00 Plug, Oil |
82M-17699-00-00 |
from US $3.83 |
||
|
70
|
70
8GJ-15455-10-00 Gasket 1 |
8GJ-15455-10-00 |
from US $3.97 |
||
| replacement | |||||
|
70
|
70
8GJ-15455-11-00 |
8GJ-15455-11-00 |
from US $3.97 |
||
|
71
|
71
8GJ-17466-00-00 Guide, Chain |
8GJ-17466-00-00 |
from US $22.81 |
||
|
72
|
72
99009-25400-00 Circlip |
99009-25400-00 |
from US $1.56 |
||
|
73
|
73
95822-06040-00 Bolt, Flange |
95822-06040-00 |
from US $1.21 |
||
| replacement | |||||
|
73
|
73
95817-06040-00 Bolt, Flange |
95817-06040-00 |
from US $1.21 |
||
|
74
|
74
90430-06166-00 Gasket |
90430-06166-00 |
from US $1.28 |
||
|
75
|
75
8GJ-17021-01-00 Pipe,oil 1 |
8GJ-17021-01-00 |
from US $17.71 |
||
|
76
|
76
90480-11013-00 Grommet |
90480-11013-00 |
from US $3.40 |
||
