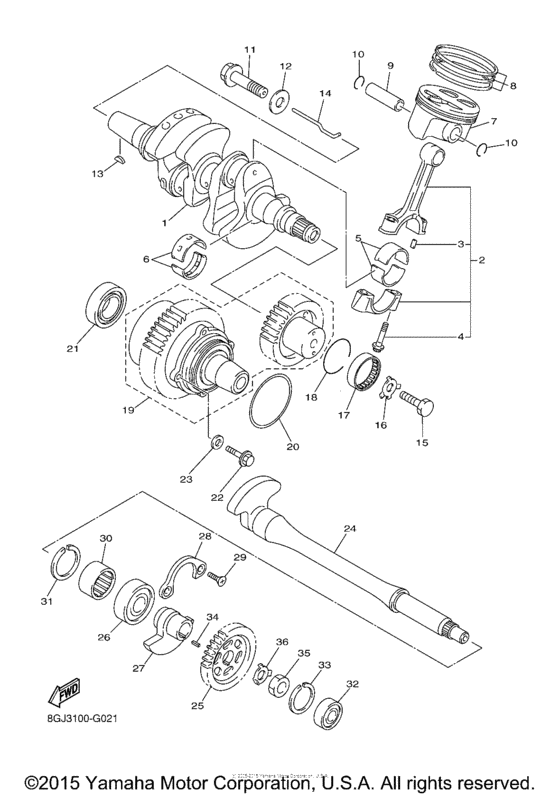

Crankshaft & Piston Diagram Yamaha PZ50/ RPZ50 Phazer R-TX
- Model code
- 8GN7
- Engine Capacity
- 499
- Year
- 2010
- Sales region
- USA
- Power
- 80 hp
- Model
- Phazer R-TX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8GC-11411-00-00 Crankshaft |
8GC-11411-00-00 |
from US $943.80 |
||
|
2
|
2
8GC-11650-01-00 Connecting Rod Assy |
8GC-11650-01-00 |
from US $145.07 |
||
|
3
|
3
93603-07073-00 Pin, Dowel |
93603-07073-00 |
from US $1.34 |
||
|
4
|
4
5VY-11654-01-00 Bolt, Connecting Rod |
5VY-11654-01-00 |
from US $5.10 |
||
|
5
|
5
4C8-11656-20-00 Plane Bearing, Connecting Rod (RED-BROWN)UR RED-BROWN |
4C8-11656-20-00 |
from US $9.26 |
||
|
5
|
5
4C8-11656-A0-00 Plane Bearing, Connecting RodUR RED-WHITE |
4C8-11656-A0-00 |
from US $10.75 |
||
|
5
|
5
4C8-11656-10-00 Plane Bearing, Connecting Rod (RED-BLACK)UR RED-BLACK |
4C8-11656-10-00 |
from US $7.94 |
||
|
5
|
5
4C8-11656-00-00 Plane Bearing, Connecting Rod (RED-BLUE)UR RED-BLUE |
4C8-11656-00-00 |
from US $7.94 |
||
|
6
|
6
5VY-11416-A0-00 Plane Bearing, Crankshaft 1 (WHITE)UR WHITE |
5VY-11416-A0-00 |
from US $8.60 |
||
|
6
|
6
5VY-11416-10-00 Plane Bearing, Crankshaft 1 (BLACK)UR BLACK |
5VY-11416-10-00 |
from US $9.26 |
||
|
6
|
6
5VY-11416-20-00 Plane Bearing, Crankshaft 1 (BROWN)UR BROWN |
5VY-11416-20-00 |
from US $8.94 |
||
|
6
|
6
5VY-11416-30-00 Plane Bearing, Crankshaft 1 (GREEN)UR GREEN |
5VY-11416-30-00 |
from US $8.94 |
||
|
6
|
6
5VY-11416-00-00 Plane Bearing, Crankshaft 1 (BLUE)UR BLUE |
5VY-11416-00-00 |
from US $8.94 |
||
|
7
|
7
8GC-11631-00-00 Piston (Std) |
8GC-11631-00-00 |
from US $105.14 |
||
|
8
|
8
4C8-11603-00-00 Piston Ring Set (Std) |
4C8-11603-00-00 |
from US $59.60 |
||
|
9
|
9
5VY-11633-00-00 Pin, Piston |
5VY-11633-00-00 |
from US $23.80 |
||
|
10
|
10
904-68120-69-00 Clip |
904-68120-69-00 |
from US $1.66 |
||
|
11
|
11
90105-12032-00 Bolt, Flange |
90105-12032-00 |
from US $21.25 |
||
|
12
|
12
902-01121-H0-00
Washer, Plate
|
902-01121-H0-00 |
— | ||
| replacement | |||||
|
12
|
12
90201-12191-00 Washer, Plate |
90201-12191-00 |
from US $5.81 |
||
|
13
|
13
902-80030-45-00
Key, Woodruff
|
902-80030-45-00 |
— | ||
| replacement | |||||
|
13
|
13
90280-03017-00 Key, Woodruff |
90280-03017-00 |
from US $1.70 |
||
|
14
|
14
59J-11455-00-00 Shaft 1 |
59J-11455-00-00 |
from US $4.82 |
||
|
15
|
15
90101-10009-00 Bolt |
90101-10009-00 |
from US $9.07 |
||
|
16
|
16
90215-10007-00 Washer, Lock |
90215-10007-00 |
from US $2.98 |
||
|
17
|
17
93311-33588-00 Bearing |
93311-33588-00 |
from US $57.89 |
||
|
18
|
18
93450-46113-00 Circlip, Inner |
93450-46113-00 |
from US $1.55 |
||
|
19
|
19
8GC-W114B-00-00 Drive Gear Set |
8GC-W114B-00-00 |
from US $729.96 |
||
|
20
|
20
93210-53679-00 O-Ring |
93210-53679-00 |
from US $2.55 |
||
|
21
|
21
93306-27209-00 Bearing |
93306-27209-00 |
from US $40.90 |
||
|
22
|
22
95812-06025-00 Bolt, Flange |
95812-06025-00 |
from US $1.07 |
||
| replacements | |||||
|
22
|
22
958-17060-25-00
Bolt, Flange
|
958-17060-25-00 |
— | ||
|
22
|
22
95822-06025-00 Bolt, Flange |
95822-06025-00 |
from US $0.99 |
||
|
23
|
23
90430-06166-00 Gasket |
90430-06166-00 |
from US $1.28 |
||
|
24
|
24
8GC-11583-10-00 Shaft, Balancer 1 |
8GC-11583-10-00 |
from US $194.81 |
||
|
25
|
25
8GC-11531-10-00 Gear, Balance Weight |
8GC-11531-10-00 |
from US $68.53 |
||
|
26
|
26
93306-30324-00 Bearing |
93306-30324-00 |
from US $33.01 |
||
|
27
|
27
8GC-11454-10-00 Weight 1 |
8GC-11454-10-00 |
from US $64.38 |
||
|
28
|
28
4JT-15383-00-00 Plate, Bearing Cover |
4JT-15383-00-00 |
from US $20.12 |
||
|
29
|
29
90151-06024-00 Screw, Countersunk |
90151-06024-00 |
from US $1.70 |
||
| replacement | |||||
|
29
|
29
90151-06023-00 Screw, Countersunk |
90151-06023-00 |
from US $1.34 |
||
|
30
|
30
93311-62574-00 Bearing |
93311-62574-00 |
from US $52.92 |
||
|
31
|
31
99009-37500-00 Circlip, R-Type |
99009-37500-00 |
from US $7.25 |
||
| replacements | |||||
|
31
|
31
93420-37074-00 Circlip, R-Type |
93420-37074-00 |
from US $2.81 |
||
|
31
|
31
93420-55028-00
Circlip, R-Type
|
93420-55028-00 |
— | ||
|
32
|
32
933-06201-19-00 Bearing |
933-06201-19-00 |
from US $11.58 |
||
|
33
|
33
99009-32500-00 Circlip |
99009-32500-00 |
from US $1.56 |
||
|
34
|
34
90282-04055-00 Key, Straight |
90282-04055-00 |
from US $1.98 |
||
| replacement | |||||
|
34
|
34
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
35
|
35
90170-14003-00 Nut |
90170-14003-00 |
from US $2.98 |
||
|
36
|
36
90215-14001-00 Washer, Lock |
90215-14001-00 |
from US $2.69 |
||
