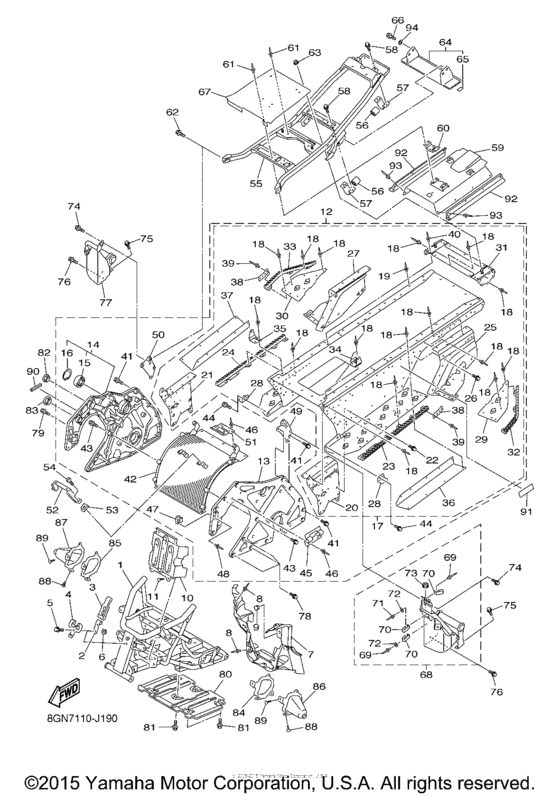

Frame Diagram Yamaha PZ50/ RPZ50 Phazer R-TX
- Model code
- 8GN7
- Engine Capacity
- 499
- Year
- 2010
- Sales region
- USA
- Power
- 80 hp
- Model
- Phazer R-TX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8GK-21940-01-00 Front Frame Comp |
8GK-21940-01-00 |
from US $983.40 |
||
|
2
|
2
8GC-2175V-00-00 Bracket 3 |
8GC-2175V-00-00 |
from US $4.53 |
||
|
3
|
3
59V-21646-00-00 Band |
59V-21646-00-00 |
from US $5.24 |
||
|
4
|
4
8GC-2175W-00-00 Bracket 4 |
8GC-2175W-00-00 |
from US $3.83 |
||
|
5
|
5
92017-05040-00 Bolt, Button Head |
92017-05040-00 |
from US $1.56 |
||
|
6
|
6
95702-05500-00 Nut, With Washer |
95702-05500-00 |
from US $0.50 |
||
| replacement | |||||
|
6
|
6
95707-05500-00 Nut, Flange |
95707-05500-00 |
from US $1.07 |
||
|
7
|
7
8GC-21912-01-00 Panel, Sub Frame 1 |
8GC-21912-01-00 |
from US $28.34 |
||
|
8
|
8
90267-48086-00 Rivet, Blind (4.8X19 Black)4.8X19 BLACK |
90267-48086-00 |
from US $1.84 |
||
|
9
|
9
90338-12192-00 Plug(2Gu) |
90338-12192-00 |
from US $1.66 |
||
|
10
|
10
8GC-2195A-10-00 Protector, Frame A |
8GC-2195A-10-00 |
from US $18.99 |
||
|
11
|
11
90269-05003-00 Rivet |
90269-05003-00 |
from US $1.98 |
||
|
12
|
12
8GK-21950-40-00 Rear Frame Comp |
8GK-21950-40-00 |
from US $3,841.20 |
||
|
13
|
13
8GC-21991-00-00 Reinf., Panel Frame 1 |
8GC-21991-00-00 |
from US $369.64 |
||
|
14
|
14
8GK-21930-20-00 Housing, Reinf Sub-Assy (R.h) |
8GK-21930-20-00 |
from US $662.64 |
||
|
15
|
15
93306-20511-00 Bearing |
93306-20511-00 |
from US $27.06 |
||
| replacements | |||||
|
15
|
15
93306-20532-00 Bearing |
93306-20532-00 |
from US $27.06 |
||
|
15
|
15
933-06205-29-00 Bearing |
933-06205-29-00 |
from US $16.20 |
||
|
16
|
16
99009-52500-00 Circlip |
99009-52500-00 |
from US $4.96 |
||
|
17
|
17
8GC-21950-29-00 Rear Frame Comp |
8GC-21950-29-00 |
from US $1,755.60 |
||
|
18
|
18
90267-47195-00 Rivet, Blind(4.7X16.4 Yellow)4.7X16.4 YELL QTY: 144 |
90267-47195-00 |
from US $1.98 |
||
|
19
|
19
90267-48023-00 Rivet, Blind4.8X12.1 YELL |
90267-48023-00 |
from US $1.84 |
||
|
20
|
20
8GK-21943-00-00 Bracket, Main Track 1 |
8GK-21943-00-00 |
from US $53.33 |
||
|
21
|
21
8GK-21953-00-00 Bracket, Main Track 2 |
8GK-21953-00-00 |
from US $53.33 |
||
|
22
|
22
95822-08012-00 Bolt, Flange |
95822-08012-00 |
from US $1.07 |
||
| replacement | |||||
|
22
|
22
95817-08012-00 Bolt, Flange |
95817-08012-00 |
from US $1.07 |
||
|
23
|
23
8GC-21926-01-00 Reinforcement, Footrest 1 |
8GC-21926-01-00 |
from US $87.73 |
||
|
24
|
24
8GC-21936-01-00 Reinforcement, Footrest 2 |
8GC-21936-01-00 |
from US $87.73 |
||
|
25
|
25
8GK-21944-00-00 Bracket, Rear Track Suspensio |
8GK-21944-00-00 |
from US $99.20 |
||
|
26
|
26
95822-08014-00 Bolt, Flange |
95822-08014-00 |
from US $1.56 |
||
|
27
|
27
8GK-21954-00-00 Bracket, Rear Track Suspensio |
8GK-21954-00-00 |
from US $99.20 |
||
|
28
|
28
8GC-21967-00-00 Patch 7 |
8GC-21967-00-00 |
from US $3.97 |
||
|
29
|
29
8GC-27452-00-00 Bracket, Footrest 1 |
8GC-27452-00-00 |
from US $21.82 |
||
|
30
|
30
8GC-27462-00-00 Bracket, Footrest 2 |
8GC-27462-00-00 |
from US $21.82 |
||
|
31
|
31
8GK-21341-00-00 Bracket, Seat 1 |
8GK-21341-00-00 |
from US $43.11 |
||
|
32
|
32
8GC-21927-01-00 Reinforcement, Rear Footrest |
8GC-21927-01-00 |
from US $88.01 |
||
|
33
|
33
8GC-21937-01-00 Reinforcement, Rear Footrest |
8GC-21937-01-00 |
from US $88.01 |
||
|
34
|
34
8GC-21238-00-00 Bracket |
8GC-21238-00-00 |
from US $9.21 |
||
|
35
|
35
8GC-21239-00-00 Bracket 2 |
8GC-21239-00-00 |
from US $8.22 |
||
|
36
|
36
8GC-21961-00-00 Patch 1 |
8GC-21961-00-00 |
from US $34.14 |
||
|
37
|
37
8GC-21962-00-00 Patch 2 |
8GC-21962-00-00 |
from US $34.14 |
||
|
38
|
38
8GC-21988-00-00 Patch 8 |
8GC-21988-00-00 |
from US $1.70 |
||
|
39
|
39
90267-48010-00 Rivet, Blind4.8X12 YELLOW |
90267-48010-00 |
from US $1.28 |
||
|
40
|
40
90267-47197-00 Rivet, Blind (4.7X19.5 Silver)4.7X19.5 SILV |
90267-47197-00 |
from US $1.98 |
||
|
41
|
41
95022-08020-00 Bolt, Flange |
95022-08020-00 |
from US $1.56 |
||
|
42
|
42
8GC-12440-00-00 Heat Exchanger Assy |
8GC-12440-00-00 |
from US $795.96 |
||
|
43
|
43
95822-08020-00 Bolt, Flange |
95822-08020-00 |
from US $1.07 |
||
| replacement | |||||
|
43
|
43
958-17080-20-00 Bolt, Flange |
958-17080-20-00 |
from US $0.85 |
||
|
44
|
44
90109-065G4-00 Bolt, Flange |
90109-065G4-00 |
from US $1.42 |
||
| replacement | |||||
|
44
|
44
901-05061-09-00 Bolt, Flange |
901-05061-09-00 |
from US $1.42 |
||
|
45
|
45
8GC-21973-00-00 Hook |
8GC-21973-00-00 |
from US $5.53 |
||
|
46
|
46
90267-47195-00 Rivet, Blind(4.7X16.4 Yellow)4.7X16.4 YELLOW |
90267-47195-00 |
from US $1.98 |
||
|
47
|
47
2TK-2177L-00-00 Plate, Spring |
2TK-2177L-00-00 |
from US $7.51 |
||
|
48
|
48
90267-32192-00 Rivet, Blind3.2X13.8 |
90267-32192-00 |
from US $1.78 |
||
|
49
|
49
8GC-21963-00-00 Patch 3 |
8GC-21963-00-00 |
from US $16.72 |
||
|
50
|
50
8GC-21964-00-00 Patch 4 |
8GC-21964-00-00 |
from US $16.72 |
||
|
51
|
51
8GC-2164G-00-00 Stay 2 |
8GC-2164G-00-00 |
from US $6.80 |
||
|
52
|
52
8GC-2164F-00-00 Stay 1 |
8GC-2164F-00-00 |
from US $10.63 |
||
|
53
|
53
901-83060-53-00
Nut, Spring
|
901-83060-53-00 |
— | ||
| replacement | |||||
|
53
|
53
90183-06069-00 Nut, Spring |
90183-06069-00 |
from US $3.54 |
||
|
54
|
54
91312-06012-00 Bolt, Hext. Socket Head |
91312-06012-00 |
from US $1.07 |
||
| replacement | |||||
|
54
|
54
91317-06012-00 Bolt |
91317-06012-00 |
from US $1.07 |
||
|
55
|
55
8GK-21160-00-00 Seat Rail Comp |
8GK-21160-00-00 |
from US $417.38 |
||
|
56
|
56
8GC-14747-00-00 Damper, Muffler |
8GC-14747-00-00 |
from US $15.16 |
||
|
57
|
57
8GC-21121-00-00 Bracket, Damper |
8GC-21121-00-00 |
from US $6.52 |
||
|
58
|
58
95822-06010-00 Bolt, Flange |
95822-06010-00 |
from US $0.90 |
||
| replacements | |||||
|
58
|
58
95817-06010-00 Bolt, Flange |
95817-06010-00 |
from US $1.07 |
||
|
58
|
58
95812-06010-00 Bolt, Flange |
95812-06010-00 |
from US $1.07 |
||
|
59
|
59
8GC-2199H-10-00 Shield, Heat |
8GC-2199H-10-00 |
from US $40.62 |
||
|
60
|
60
8GC-1467H-00-00 Bracket, Silencer 1 |
8GC-1467H-00-00 |
from US $6.09 |
||
|
61
|
61
90267-47195-00 Rivet, Blind(4.7X16.4 Yellow)4.7X16.4 YELLOW |
90267-47195-00 |
from US $1.98 |
||
|
62
|
62
95822-10016-00 Bolt, Flange |
95822-10016-00 |
from US $1.07 |
||
| replacement | |||||
|
62
|
62
95817-10016-00 Bolt, Flange |
95817-10016-00 |
from US $1.07 |
||
|
63
|
63
95607-08200-00 Nut, Self-Locking |
95607-08200-00 |
from US $2.13 |
||
| replacement | |||||
|
63
|
63
901-85081-69-00 Nut, Self-Locking |
901-85081-69-00 |
from US $2.13 |
||
|
64
|
64
8GC-24708-01-00 Seat Bracket Assy |
8GC-24708-01-00 |
from US $57.75 |
||
|
65
|
65
8GC-77151-00-00 Pad 1 |
8GC-77151-00-00 |
from US $1.56 |
||
|
66
|
66
95822-08020-00 Bolt, Flange |
95822-08020-00 |
from US $1.07 |
||
| replacement | |||||
|
66
|
66
958-17080-20-00 Bolt, Flange |
958-17080-20-00 |
from US $0.85 |
||
|
67
|
67
8GC-21917-00-00 Panel, Sub Frame 6 |
8GC-21917-00-00 |
from US $33.15 |
||
|
68
|
68
8GJ-21960-00-00 Footrest Comp. 1 |
8GJ-21960-00-00 |
from US $120.34 |
||
|
69
|
69
90267-48010-00 Rivet, Blind4.8X12 YELLOW |
90267-48010-00 |
from US $1.28 |
||
|
70
|
70
90465-08368-00 Clamp |
90465-08368-00 |
from US $2.55 |
||
| replacement | |||||
|
70
|
70
90465-08277-00 Clamp(51Y) |
90465-08277-00 |
from US $4.11 |
||
|
71
|
71
90267-48083-00 Rivet, Blind4.8X15.2 SILVER |
90267-48083-00 |
from US $2.55 |
||
|
72
|
72
90201-043H7-00 Washer, Plate (34L) |
90201-043H7-00 |
from US $1.70 |
||
|
73
|
73
90480-13163-00 Grommet |
90480-13163-00 |
from US $1.70 |
||
|
74
|
74
95822-08016-00 Bolt, Flange |
95822-08016-00 |
from US $1.07 |
||
| replacements | |||||
|
74
|
74
95814-08016-00 Bolt, Flange |
95814-08016-00 |
from US $1.21 |
||
|
74
|
74
901-0508X-15-00
Blt,hex,1/4-20X5/8
|
901-0508X-15-00 |
— | ||
|
74
|
74
958-17080-16-00 Bolt, Flange |
958-17080-16-00 |
from US $1.07 |
||
|
75
|
75
95022-06012-00 Bolt, Flange |
95022-06012-00 |
from US $1.07 |
||
|
76
|
76
90105-06080-00 Bolt, Flange |
90105-06080-00 |
from US $1.56 |
||
| replacement | |||||
|
76
|
76
95812-06014-00 Bolt, Flange |
95812-06014-00 |
from US $1.34 |
||
|
77
|
77
8GJ-21970-00-00 Footrest Comp. 2 |
8GJ-21970-00-00 |
from US $88.01 |
||
|
78
|
78
95822-08020-00 Bolt, Flange |
95822-08020-00 |
from US $1.07 |
||
| replacement | |||||
|
78
|
78
958-17080-20-00 Bolt, Flange |
958-17080-20-00 |
from US $0.85 |
||
|
79
|
79
90105-08190-00 Bolt, Flange |
90105-08190-00 |
from US $1.07 |
||
| replacements | |||||
|
79
|
79
901-0508X-15-00
Blt,hex,1/4-20X5/8
|
901-0508X-15-00 |
— | ||
|
79
|
79
958-17080-16-00 Bolt, Flange |
958-17080-16-00 |
from US $1.07 |
||
|
80
|
80
8GC-2193A-00-00 Protector |
8GC-2193A-00-00 |
from US $18.56 |
||
|
81
|
81
90109-066G1-00 Bolt |
90109-066G1-00 |
from US $2.13 |
||
| replacement | |||||
|
81
|
81
901-09062-85-00 Bolt |
901-09062-85-00 |
from US $2.13 |
||
|
82
|
82
90480-27001-00 Grommet |
90480-27001-00 |
from US $1.84 |
||
|
83
|
83
90480-40003-00 Grommet |
90480-40003-00 |
from US $4.25 |
||
|
84
|
84
8GC-2195E-00-00 Plate, Steering Bracket 1 |
8GC-2195E-00-00 |
from US $7.23 |
||
|
85
|
85
8GC-2195F-00-00 Plate, Steering Bracket 2 |
8GC-2195F-00-00 |
from US $7.23 |
||
|
86
|
86
8GC-2198F-00-00 Cover 1 |
8GC-2198F-00-00 |
from US $17.28 |
||
|
87
|
87
8GC-2198J-00-00 Cover 3 |
8GC-2198J-00-00 |
from US $17.28 |
||
|
88
|
88
90269-05003-00 Rivet |
90269-05003-00 |
from US $1.98 |
||
|
89
|
89
90269-05002-00 Rivet |
90269-05002-00 |
from US $1.98 |
||
|
90
|
90
8GL-77319-00-00 Damper 1 |
8GL-77319-00-00 |
from US $1.21 |
||
|
91
|
91
8GC-2179D-31-00 Plate, Epa Offroad 2 |
8GC-2179D-31-00 |
US $5.74 |
||
|
92
|
92
8GC-21852-00-00 Damper |
8GC-21852-00-00 |
from US $17.99 |
||
|
93
|
93
90267-50010-00 Rivet, Blind (5X23.6 Black)5X23.6 BLACK |
90267-50010-00 |
from US $1.98 |
||
| replacement | |||||
|
93
|
93
90267-48024-00 Rivet, Blind5X23.6 BLACK |
90267-48024-00 |
from US $1.98 |
||
|
94
|
94
902-01080-79-00 Washer, Plate |
902-01080-79-00 |
from US $1.98 |
||
