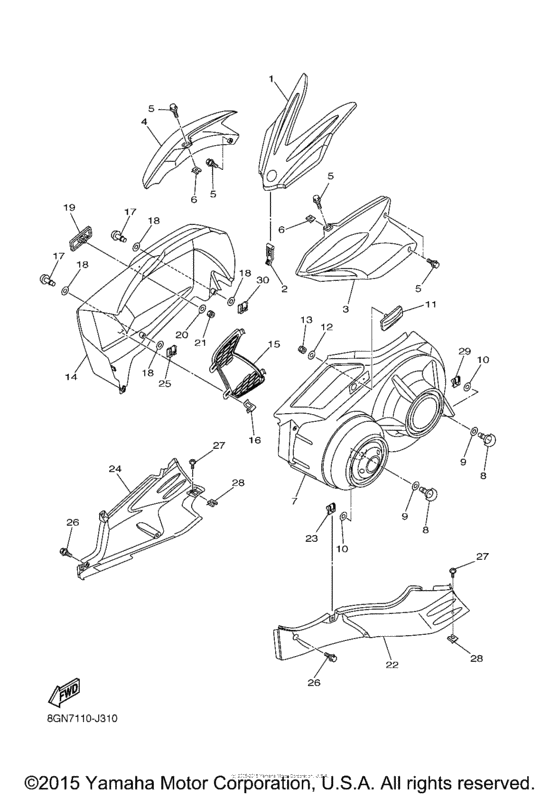

Shroud Diagram Yamaha PZ50/ RPZ50 Phazer R-TX
- Model code
- 8GN7
- Engine Capacity
- 499
- Year
- 2010
- Sales region
- USA
- Power
- 80 hp
- Model
- Phazer R-TX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8GC-77111-00-00 ShroudUR FOR YB |
8GC-77111-00-00 |
from US $29.61 |
||
|
1
|
1
8GC-77111-50-00 ShroudUR FOR VYRS4 |
8GC-77111-50-00 |
from US $30.18 |
||
|
2
|
2
59V-21646-00-00 Band |
59V-21646-00-00 |
from US $5.24 |
||
|
3
|
3
8GC-2835U-40-00 Panel 1UR FOR YB |
8GC-2835U-40-00 |
from US $34 |
||
|
3
|
3
8GC-2835U-50-00 Panel 1UR FOR VYRS4 |
8GC-2835U-50-00 |
from US $29.02 |
||
|
4
|
4
8GC-2835V-50-00 Panel 2UR FOR VYRS4 |
8GC-2835V-50-00 |
US $60.34 |
||
|
4
|
4
8GC-2835V-40-00 Panel 2UR FOR YB |
8GC-2835V-40-00 |
from US $34 |
||
|
5
|
5
90109-06220-00 Bolt |
90109-06220-00 |
from US $1.84 |
||
|
6
|
6
90183-06100-00 Nut, Spring |
90183-06100-00 |
from US $6.23 |
||
|
7
|
7
8GC-2197H-00-00 Hood 3 |
8GC-2197H-00-00 |
from US $67.97 |
||
|
8
|
8
3FV-28386-00-00 Head |
3FV-28386-00-00 |
from US $20.84 |
||
|
9
|
9
2TK-21757-00-00 Washer, Special 1 |
2TK-21757-00-00 |
from US $2.13 |
||
|
10
|
10
5TJ-21757-00-00 Washer, Special 1 |
5TJ-21757-00-00 |
from US $1.56 |
||
|
11
|
11
8FR-77185-00-00 Plate 1 |
8FR-77185-00-00 |
from US $10.01 |
||
|
12
|
12
90201-05036-00 Washer, Plate |
90201-05036-00 |
from US $1.84 |
||
| replacement | |||||
|
12
|
12
90201-061A5-00 Washer, Plate (4H7) |
90201-061A5-00 |
from US $1.84 |
||
|
13
|
13
95702-05300-00 Nut, Flange |
95702-05300-00 |
from US $1.42 |
||
| replacement | |||||
|
13
|
13
95707-05300-00 Nut, Flange |
95707-05300-00 |
from US $1.42 |
||
|
14
|
14
8GC-2198H-01-00 Hood 4 |
8GC-2198H-01-00 |
from US $64.52 |
||
|
15
|
15
8GC-77134-00-00 Louver 4 |
8GC-77134-00-00 |
from US $9.21 |
||
|
16
|
16
90468-06001-00 Clip |
90468-06001-00 |
from US $2.69 |
||
|
17
|
17
5PW-28386-00-00 Head |
5PW-28386-00-00 |
from US $12.89 |
||
|
18
|
18
2TK-21757-00-00 Washer, Special 1 |
2TK-21757-00-00 |
from US $2.13 |
||
|
19
|
19
8FR-77185-00-00 Plate 1 |
8FR-77185-00-00 |
from US $10.01 |
||
|
20
|
20
90201-05036-00 Washer, Plate |
90201-05036-00 |
from US $1.84 |
||
| replacement | |||||
|
20
|
20
90201-061A5-00 Washer, Plate (4H7) |
90201-061A5-00 |
from US $1.84 |
||
|
21
|
21
95702-05300-00 Nut, Flange |
95702-05300-00 |
from US $1.42 |
||
| replacement | |||||
|
21
|
21
95707-05300-00 Nut, Flange |
95707-05300-00 |
from US $1.42 |
||
|
22
|
22
8GC-2196A-00-00 Frame Under 1 |
8GC-2196A-00-00 |
from US $30.46 |
||
|
23
|
23
4XV-2177L-01-00 Plate, Spring |
4XV-2177L-01-00 |
from US $7.23 |
||
|
24
|
24
8GC-2196E-00-00 Frame, Under 2 |
8GC-2196E-00-00 |
from US $32.59 |
||
|
25
|
25
5PW-2177L-00-00
Plate, Spring
|
5PW-2177L-00-00 |
— | ||
| replacement | |||||
|
25
|
25
5PW-2177L-01-00 Plate, Spring |
5PW-2177L-01-00 |
from US $7.23 |
||
|
26
|
26
90109-06220-00 Bolt |
90109-06220-00 |
from US $1.84 |
||
|
27
|
27
90149-06105-00 Screw |
90149-06105-00 |
from US $5.67 |
||
|
28
|
28
90183-06100-00 Nut, Spring |
90183-06100-00 |
from US $6.23 |
||
|
29
|
29
4XV-2177L-01-00 Plate, Spring |
4XV-2177L-01-00 |
from US $7.23 |
||
|
30
|
30
5PW-2177L-00-00
Plate, Spring
|
5PW-2177L-00-00 |
— | ||
| replacement | |||||
|
30
|
30
5PW-2177L-01-00 Plate, Spring |
5PW-2177L-01-00 |
from US $7.23 |
||
