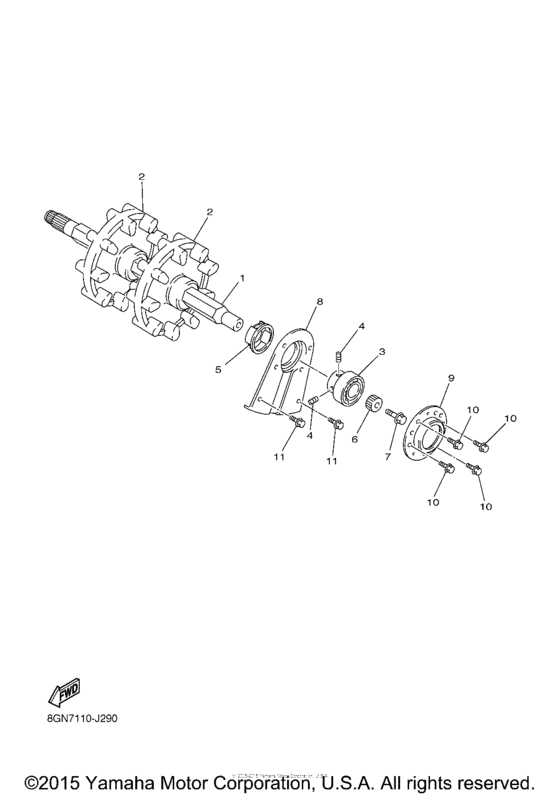

Track drive (1) Diagram Yamaha PZ50/ RPZ50 Phazer R-TX
- Model code
- 8GN7
- Engine Capacity
- 499
- Year
- 2010
- Sales region
- USA
- Power
- 80 hp
- Model
- Phazer R-TX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8GC-47511-20-00 Axle, Front |
8GC-47511-20-00 |
from US $270.79 |
||
|
2
|
2
8CM-47531-10-00 Wheel, Sprocket 1 |
8CM-47531-10-00 |
from US $119.92 |
||
|
3
|
3
933-06205-89-00 Bearing |
933-06205-89-00 |
from US $40.48 |
||
|
4
|
4
901-13060-64-00
Bolt, Set
|
901-13060-64-00 |
— | ||
| replacement | |||||
|
4
|
4
901-13060-06-00 Bolt, Set |
901-13060-06-00 |
from US $4.39 |
||
|
5
|
5
8FN-47377-00-00 Cap |
8FN-47377-00-00 |
from US $26.37 |
||
|
6
|
6
8EK-47715-00-00 Joint |
8EK-47715-00-00 |
from US $17.28 |
||
|
7
|
7
95822-10025-00 Bolt, Flange |
95822-10025-00 |
from US $1.07 |
||
| replacement | |||||
|
7
|
7
95817-10025-00 Bolt, Flange |
95817-10025-00 |
from US $1.07 |
||
|
8
|
8
8GC-21920-00-00 Housing, Reinf Sub-Assy (L.h) |
8GC-21920-00-00 |
from US $12.33 |
||
|
9
|
9
8EK-47551-00-00 Housing, Front Axle |
8EK-47551-00-00 |
from US $4.53 |
||
|
10
|
10
90105-08168-00 Bolt, Flange |
90105-08168-00 |
from US $1.73 |
||
|
11
|
11
90105-08450-00 Bolt, Flange |
90105-08450-00 |
from US $0.85 |
||
| replacement | |||||
|
11
|
11
958-17080-20-00 Bolt, Flange |
958-17080-20-00 |
from US $0.85 |
||
