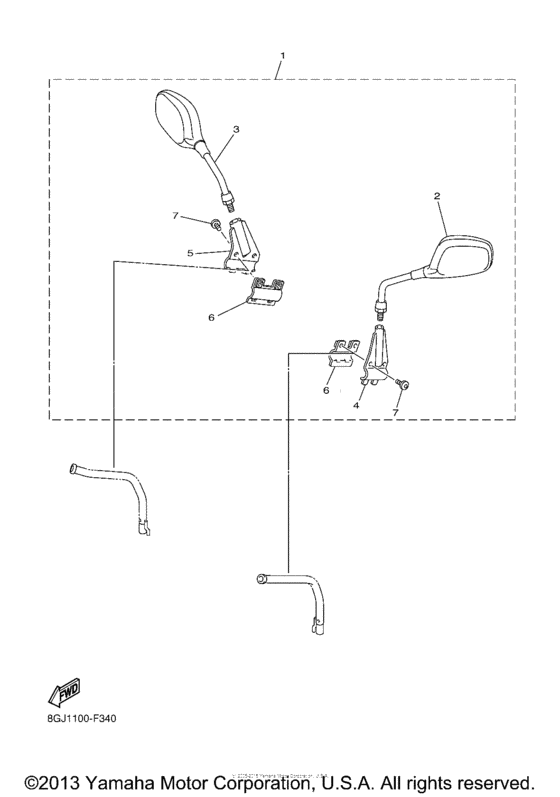

Rear view mirror Diagram Yamaha PZ50/ RPZ50 Venture Lite
- Model code
- 8GJ3
- Engine Capacity
- 499
- Year
- 2008
- Sales region
- USA
- Power
- 80 hp
- Model
- Venture Lite
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8GR-W2628-00-00 Rear View Mirror Set |
8GR-W2628-00-00 |
from US $163.86 |
||
|
2
|
2
4GA-26280-10-00 Rear View Mirror Assy (Left) |
4GA-26280-10-00 |
from US $21.54 |
||
|
3
|
3
4GA-26290-10-00 Rear View Mirror Assy (Right) |
4GA-26290-10-00 |
from US $21.54 |
||
|
4
|
4
8GJ-78386-00-00 Bracket Mirror 3 |
8GJ-78386-00-00 |
from US $48.36 |
||
|
5
|
5
8GJ-78387-00-00 Bracket Mirror 4 |
8GJ-78387-00-00 |
from US $48.36 |
||
|
6
|
6
8GJ-78357-00-00 Holder 1 |
8GJ-78357-00-00 |
from US $9.78 |
||
|
7
|
7
901-49062-98-00 Screw |
901-49062-98-00 |
from US $1.56 |
