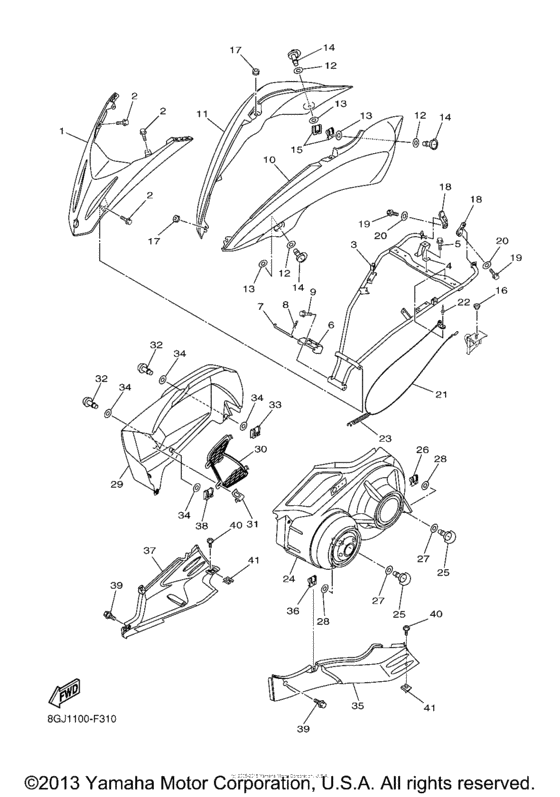

Shroud Diagram Yamaha PZ50/ RPZ50 Venture Lite
- Model code
- 8GJ3
- Engine Capacity
- 499
- Year
- 2008
- Sales region
- USA
- Power
- 80 hp
- Model
- Venture Lite
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8GJ-77111-00-P2 ShroudUR FOR DRMK |
8GJ-77111-00-P2 |
from US $274.94 |
||
|
1
|
1
8GJ-77111-00-P1 ShroudUR FOR DPBML |
8GJ-77111-00-P1 |
from US $274.94 |
||
|
2
|
2
90109-06220-00 Bolt |
90109-06220-00 |
from US $1.84 |
||
|
3
|
3
8GJ-77145-00-00 Hinge 1 |
8GJ-77145-00-00 |
from US $216.91 |
||
|
4
|
4
8GJ-77125-00-00 Stay 1 |
8GJ-77125-00-00 |
from US $7.37 |
||
|
5
|
5
958-22060-12-00
Bolt, Flange
|
958-22060-12-00 |
— | ||
| replacements | |||||
|
5
|
5
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.07 |
||
|
5
|
5
95812-06012-00 Bolt, Flange |
95812-06012-00 |
from US $1.07 |
||
|
6
|
6
8GJ-77146-00-00 Hinge 2 |
8GJ-77146-00-00 |
from US $13.18 |
||
|
7
|
7
8GJ-77384-00-00 Pin |
8GJ-77384-00-00 |
from US $7.37 |
||
|
8
|
8
90468-12120-00 Clip |
90468-12120-00 |
from US $1.70 |
||
|
9
|
9
95822-06016-00 Bolt, Flange |
95822-06016-00 |
from US $1.07 |
||
| replacement | |||||
|
9
|
9
95817-06016-00 Bolt, Flange |
95817-06016-00 |
from US $1.07 |
||
|
10
|
10
8GJ-2835U-00-00 Panel 1 |
8GJ-2835U-00-00 |
from US $87.87 |
||
|
11
|
11
8GJ-2835V-00-00 Panel 2 |
8GJ-2835V-00-00 |
from US $87.87 |
||
|
12
|
12
2TK-21757-00-00 Washer, Special 1 |
2TK-21757-00-00 |
from US $2.13 |
||
|
13
|
13
5TJ-21757-00-00 Washer, Special 1 |
5TJ-21757-00-00 |
from US $1.56 |
||
|
14
|
14
3FV-28386-00-00 Head |
3FV-28386-00-00 |
from US $20.84 |
||
|
15
|
15
4XV-2177L-01-00 Plate, Spring |
4XV-2177L-01-00 |
from US $7.23 |
||
|
16
|
16
4N0-27114-00-00 Stopper, Main Stand |
4N0-27114-00-00 |
from US $4.53 |
||
|
17
|
17
90480-12053-00 Grommet |
90480-12053-00 |
from US $1.66 |
||
|
18
|
18
8GJ-77171-00-00 Body, Latch 1 |
8GJ-77171-00-00 |
from US $4.68 |
||
|
19
|
19
90109-085G1-00 Bolt |
90109-085G1-00 |
from US $4.68 |
||
|
20
|
20
92902-10200-00 Washer, Plain |
92902-10200-00 |
US $1.07 |
||
| replacement | |||||
|
20
|
20
92990-10200-00 Washer, Plain |
92990-10200-00 |
from US $1.07 |
||
|
21
|
21
8GJ-77118-00-00 Stopper, Shroud |
8GJ-77118-00-00 |
from US $12.61 |
||
|
22
|
22
90267-47187-00 Rivet, Blind (4.7X16.4 Black)4.7X16.4 BLACK |
90267-47187-00 |
from US $1.28 |
||
|
23
|
23
89A-77159-00-00 Clamp, Rod |
89A-77159-00-00 |
from US $4.68 |
||
|
24
|
24
8GC-2197H-20-00 Hood 3 |
8GC-2197H-20-00 |
from US $70.05 |
||
|
25
|
25
3FV-28386-00-00 Head |
3FV-28386-00-00 |
from US $20.84 |
||
|
26
|
26
4XV-2177L-01-00 Plate, Spring |
4XV-2177L-01-00 |
from US $7.23 |
||
|
27
|
27
2TK-21757-00-00 Washer, Special 1 |
2TK-21757-00-00 |
from US $2.13 |
||
|
28
|
28
5TJ-21757-00-00 Washer, Special 1 |
5TJ-21757-00-00 |
from US $1.56 |
||
|
29
|
29
8GC-2198H-21-00 Hood 4 |
8GC-2198H-21-00 |
from US $65.49 |
||
|
30
|
30
8GC-77134-00-00 Louver 4 |
8GC-77134-00-00 |
from US $9.21 |
||
|
31
|
31
90468-06001-00 Clip |
90468-06001-00 |
from US $2.69 |
||
|
32
|
32
5PW-28386-00-00 Head |
5PW-28386-00-00 |
from US $12.89 |
||
|
33
|
33
5PW-2177L-00-00
Plate, Spring
|
5PW-2177L-00-00 |
— | ||
| replacement | |||||
|
33
|
33
5PW-2177L-01-00 Plate, Spring |
5PW-2177L-01-00 |
from US $7.23 |
||
|
34
|
34
2TK-21757-00-00 Washer, Special 1 |
2TK-21757-00-00 |
from US $2.13 |
||
|
35
|
35
8GC-2196A-20-00 Frame Under 1 |
8GC-2196A-20-00 |
from US $31.45 |
||
|
36
|
36
4XV-2177L-01-00 Plate, Spring |
4XV-2177L-01-00 |
from US $7.23 |
||
|
37
|
37
8GC-2196E-20-00 Frame, Under 2 |
8GC-2196E-20-00 |
from US $28.61 |
||
|
38
|
38
5PW-2177L-00-00
Plate, Spring
|
5PW-2177L-00-00 |
— | ||
| replacement | |||||
|
38
|
38
5PW-2177L-01-00 Plate, Spring |
5PW-2177L-01-00 |
from US $7.23 |
||
|
39
|
39
90109-06220-00 Bolt |
90109-06220-00 |
from US $1.84 |
||
|
40
|
40
90149-06105-00 Screw |
90149-06105-00 |
from US $5.67 |
||
|
41
|
41
90183-06100-00 Nut, Spring |
90183-06100-00 |
from US $6.23 |
||
