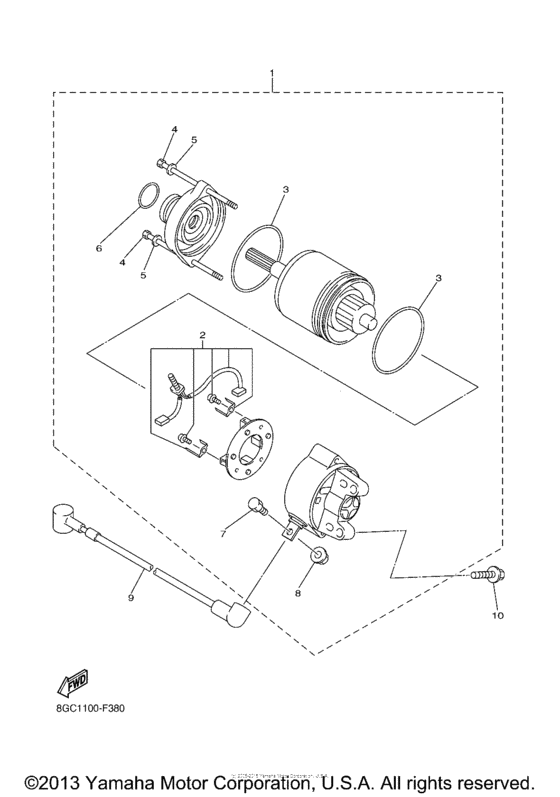

Starting motor Diagram Yamaha PZ50/ RPZ50 Venture Lite
- Model code
- 8GJ3
- Engine Capacity
- 499
- Year
- 2008
- Sales region
- USA
- Power
- 80 hp
- Model
- Venture Lite
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8GC-81890-00-00 Motor Assy |
8GC-81890-00-00 |
from US $435.12 |
||
| replacements | |||||
|
1
|
1
8GC-81890-01-00 Motor Assy |
8GC-81890-01-00 |
from US $435.12 |
||
|
1
|
1
8GC-81890-02-00 |
8GC-81890-02-00 |
US $910.61 |
||
|
2
|
2
8GC-81801-00-00 Brush Set |
8GC-81801-00-00 |
from US $79.17 |
||
|
3
|
3
93210-55669-00 O-Ring |
93210-55669-00 |
from US $2.55 |
||
|
4
|
4
8GC-81846-00-00 Screw |
8GC-81846-00-00 |
from US $4.39 |
||
|
5
|
5
8GC-8181L-00-00 Washer, Plain |
8GC-8181L-00-00 |
from US $3.68 |
||
|
6
|
6
93210-25711-00 O-Ring |
93210-25711-00 |
from US $9.99 |
||
|
7
|
7
5PW-81828-00-00 Screw 2 |
5PW-81828-00-00 |
from US $1.93 |
||
|
8
|
8
95380-05700-00 Nut |
95380-05700-00 |
from US $1.98 |
||
|
9
|
9
8GC-8183G-00-00 Cord Comp |
8GC-8183G-00-00 |
from US $36.75 |
||
|
10
|
10
95812-06025-00 Bolt, Flange |
95812-06025-00 |
from US $1.07 |
||
| replacements | |||||
|
10
|
10
958-17060-25-00
Bolt, Flange
|
958-17060-25-00 |
— | ||
|
10
|
10
95822-06025-00 Bolt, Flange |
95822-06025-00 |
from US $0.99 |
||
