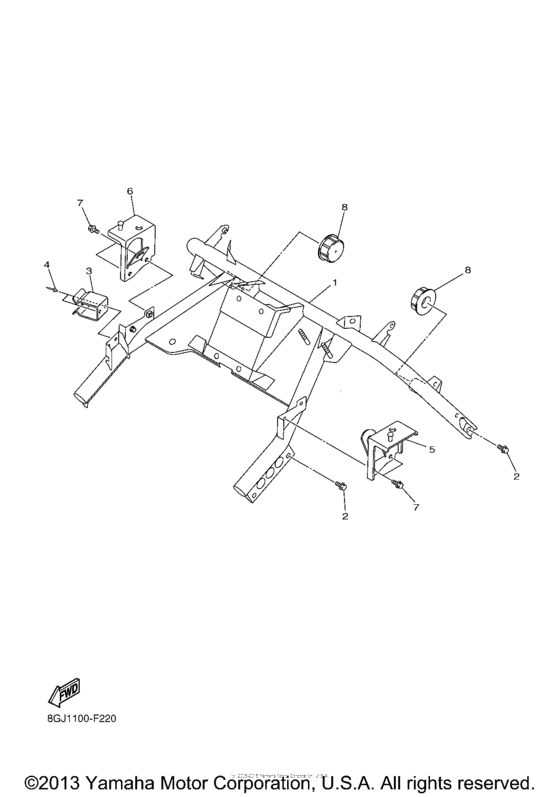

Steering gate Diagram Yamaha PZ50/ RPZ50 Venture Lite
- Model code
- 8GJ3
- Engine Capacity
- 499
- Year
- 2008
- Sales region
- USA
- Power
- 80 hp
- Model
- Venture Lite
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8GJ-23870-01-00 Steering Gate Comp |
8GJ-23870-01-00 |
from US $305.33 |
||
| replacement | |||||
|
1
|
1
8GJ-23870-02-00 Steering Gate Comp |
8GJ-23870-02-00 |
from US $305.33 |
||
|
2
|
2
95812-08016-00 Bolt, Flange |
95812-08016-00 |
from US $1.07 |
||
| replacements | |||||
|
2
|
2
901-0508X-15-00
Blt,hex,1/4-20X5/8
|
901-0508X-15-00 |
— | ||
|
2
|
2
958-17080-16-00 Bolt, Flange |
958-17080-16-00 |
from US $1.07 |
||
|
3
|
3
8CR-77338-00-00 Stay, Belt |
8CR-77338-00-00 |
from US $4.53 |
||
|
4
|
4
90267-48010-00 Rivet, Blind4.8X12 YELLOW |
90267-48010-00 |
from US $1.28 |
||
|
5
|
5
8GJ-23881-00-00 Bracket 1 |
8GJ-23881-00-00 |
from US $17.43 |
||
|
6
|
6
8GJ-23882-00-00 Bracket 2 |
8GJ-23882-00-00 |
from US $17.43 |
||
|
7
|
7
958-22060-12-00
Bolt, Flange
|
958-22060-12-00 |
— | ||
| replacements | |||||
|
7
|
7
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.07 |
||
|
7
|
7
95812-06012-00 Bolt, Flange |
95812-06012-00 |
from US $1.07 |
||
|
8
|
8
4H7-24181-00-00 Damper, Locating 1 |
4H7-24181-00-00 |
from US $7.93 |
||
