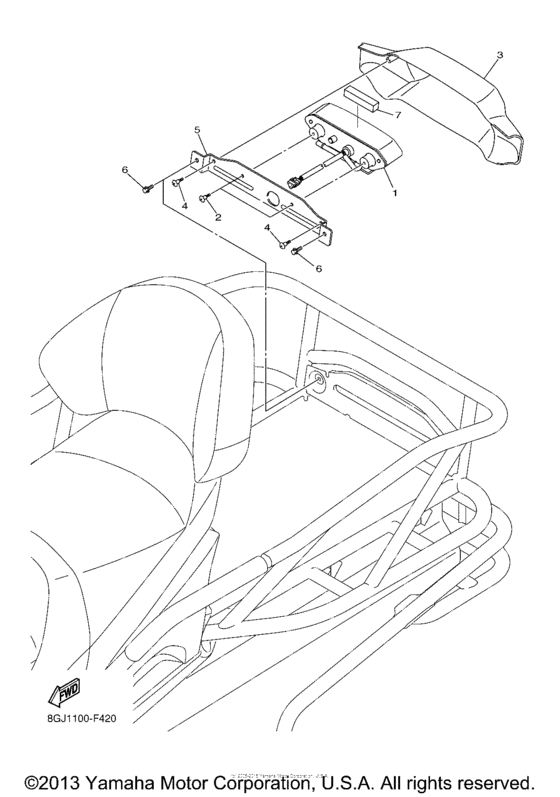

Taillight Diagram Yamaha PZ50/ RPZ50 Venture Lite
- Model code
- 8GJ7
- Engine Capacity
- 499
- Year
- 2010
- Sales region
- USA
- Power
- 80 hp
- Model
- Venture Lite
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8GJ-84710-01-00 Taillight Unit Assy |
8GJ-84710-01-00 |
from US $147.83 |
||
|
2
|
2
97702-50016-00 Screw, Tapping |
97702-50016-00 |
from US $1.42 |
||
| replacement | |||||
|
2
|
2
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $1.84 |
||
|
3
|
3
8GJ-84516-00-00 Cover, Taillight |
8GJ-84516-00-00 |
from US $22.67 |
||
|
4
|
4
97702-50016-00 Screw, Tapping |
97702-50016-00 |
from US $1.42 |
||
| replacement | |||||
|
4
|
4
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $1.84 |
||
|
5
|
5
8GJ-84702-00-00 Bracket, Taillight |
8GJ-84702-00-00 |
from US $14.45 |
||
|
6
|
6
958-22060-12-00
Bolt, Flange
|
958-22060-12-00 |
— | ||
| replacements | |||||
|
6
|
6
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.07 |
||
|
6
|
6
95812-06012-00 Bolt, Flange |
95812-06012-00 |
from US $1.07 |
||
|
7
|
7
8FN-241A3-00-00 Seal 3 |
8FN-241A3-00-00 |
from US $1.28 |
||
