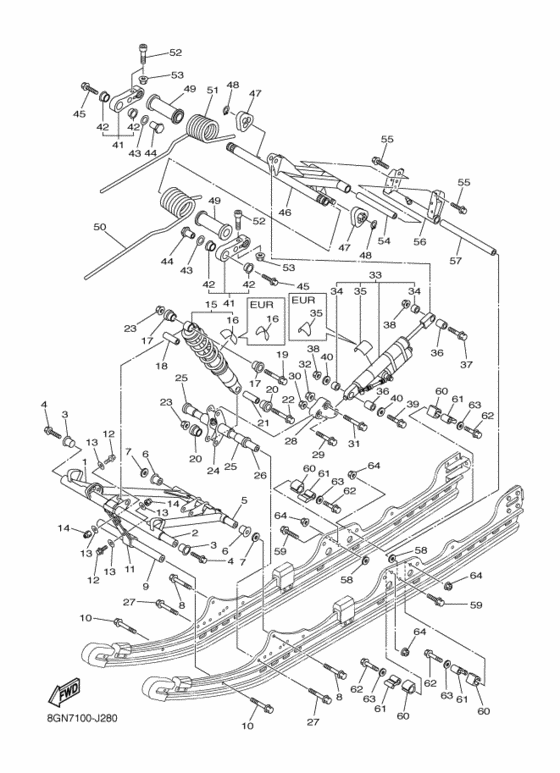

Track suspension 2 Diagram Yamaha PZ50/ RPZ50 Phazer R-TX
- Model code
- 8GN8
- Engine Capacity
- 499
- Year
- 2010
- Sales region
- Europe (010)
- Colour
- Vivid Yellowish Red Solid 4
- Color Variant
- A
- Model
- Phazer R-TX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8GN-47331-03-00 Arm, Pivot 1 |
8GN-47331-03-00 |
from US $290.14 |
||
|
2
|
2
8GC-47465-10-00 Shaft 1 |
8GC-47465-10-00 |
from US $46.01 |
||
|
3
|
3
90386-22001-00 Bush |
90386-22001-00 |
from US $5.81 |
||
|
4
|
4
90109-10030-00 Bolt |
90109-10030-00 |
from US $4.11 |
||
| replacement | |||||
|
4
|
4
901-09100-32-00 Bolt |
901-09100-32-00 |
from US $4.11 |
||
|
5
|
5
8ES-47486-00-00 Shaft 4 |
8ES-47486-00-00 |
from US $24.65 |
||
|
6
|
6
903-87100-22-00 Collar |
903-87100-22-00 |
from US $10.06 |
||
|
7
|
7
90201-10064-00 Washer, Plate |
90201-10064-00 |
from US $4.11 |
||
|
8
|
8
90105-10329-00 Bolt, Flange |
90105-10329-00 |
from US $3.54 |
||
| replacement | |||||
|
8
|
8
90105-10209-00 Bolt, Flange |
90105-10209-00 |
from US $3.54 |
||
|
9
|
9
8ES-47485-00-00 Shaft 3 |
8ES-47485-00-00 |
from US $29.89 |
||
|
10
|
10
90105-10209-00 Bolt, Flange |
90105-10209-00 |
from US $3.54 |
||
|
11
|
11
8GC-47495-00-00 Stopper 1 |
8GC-47495-00-00 |
from US $49.88 |
||
|
12
|
12
97002-06025-00 Bolt |
97002-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
12
|
12
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.34 |
||
|
13
|
13
90201-06036-00 Washer, Plate |
90201-06036-00 |
from US $1.70 |
||
|
14
|
14
95702-06300-00 Nut, Nylon |
95702-06300-00 |
from US $1.56 |
||
| replacement | |||||
|
14
|
14
95707-06300-00 Nut, Nylon |
95707-06300-00 |
from US $1.56 |
||
|
15
|
15
8GN-47481-30-00 Shock Absorber 2 |
8GN-47481-30-00 |
US $454.21 |
||
|
15
|
15
8GN-47481-40-00 Shock Absorber 2FOR JPN |
8GN-47481-40-00 |
US $454.21 |
||
|
16
|
16
4AA-22259-40-00 Label, Warning |
4AA-22259-40-00 |
from US $6.52 |
||
|
16
|
16
4AA-22259-50-00 Label, WarningFOR JPN |
4AA-22259-50-00 |
from US $2.98 |
||
|
17
|
17
903-87150-09-00 Collar |
903-87150-09-00 |
from US $1.98 |
||
|
18
|
18
90387-10054-00 Collar |
90387-10054-00 |
from US $7.65 |
||
|
19
|
19
95812-10060-00 Bolt, Flange |
95812-10060-00 |
from US $1.98 |
||
| replacement | |||||
|
19
|
19
95817-10060-00 Bolt, Flange |
95817-10060-00 |
from US $2.83 |
||
|
20
|
20
903-81141-01-00 Bush, Solid |
903-81141-01-00 |
from US $3.54 |
||
|
21
|
21
90387-105G5-00 Collar (8U7) |
90387-105G5-00 |
from US $1.42 |
||
|
22
|
22
90101-10738-00 Bolt |
90101-10738-00 |
from US $2.69 |
||
| replacement | |||||
|
22
|
22
90101-10559-00 Bolt |
90101-10559-00 |
from US $3.64 |
||
|
23
|
23
956-02102-00-00 Nut, U Flange |
956-02102-00-00 |
from US $1.56 |
||
|
24
|
24
8GT-47349-01-00 Bracket, Arm Pivot |
8GT-47349-01-00 |
from US $55.68 |
||
|
25
|
25
903-86200-01-00 Bush |
903-86200-01-00 |
from US $4.82 |
||
|
26
|
26
8GN-47487-00-00 Shaft 5 |
8GN-47487-00-00 |
from US $67.70 |
||
|
27
|
27
90105-10209-00 Bolt, Flange |
90105-10209-00 |
from US $3.54 |
||
|
28
|
28
8GN-4741B-00-00 Bracket |
8GN-4741B-00-00 |
from US $198.95 |
||
|
29
|
29
95812-10055-00 Bolt, Flange |
95812-10055-00 |
from US $2.83 |
||
| replacement | |||||
|
29
|
29
95817-10055-00 Bolt, Flange |
95817-10055-00 |
from US $2.83 |
||
|
30
|
30
956-02102-00-00 Nut, U Flange |
956-02102-00-00 |
from US $1.56 |
||
|
31
|
31
95812-12060-00 Bolt, Flange |
95812-12060-00 |
from US $4.11 |
||
|
32
|
32
95602-12200-00 Nut, Self-Locking |
95602-12200-00 |
from US $3.12 |
||
|
33
|
33
8GN-47480-60-00 Shock Absorber |
8GN-47480-60-00 |
US $971.52 |
||
|
33
|
33
8GN-47480-70-00 Shock AbsorberFOR JPN |
8GN-47480-70-00 |
US $971.52 |
||
|
34
|
34
90384-18190-00 Bush, Bimetal Formed |
90384-18190-00 |
from US $6.94 |
||
|
35
|
35
4AA-22259-40-00 Label, Warning |
4AA-22259-40-00 |
from US $6.52 |
||
|
35
|
35
3YK-22259-00-00 Label, WarningFOR JPN |
3YK-22259-00-00 |
US $2.24 |
||
|
36
|
36
90387-10023-00 Collar |
90387-10023-00 |
from US $6.23 |
||
|
37
|
37
95812-10040-00 Bolt, Flange |
95812-10040-00 |
from US $1.45 |
||
|
38
|
38
956-02102-00-00 Nut, U Flange |
956-02102-00-00 |
from US $1.56 |
||
|
39
|
39
90105-10295-00 Bolt, Flange |
90105-10295-00 |
from US $7.51 |
||
|
40
|
40
90201-10052-00 Washer, Plate |
90201-10052-00 |
from US $1.84 |
||
|
41
|
41
8GC-47361-00-00 Arm, Rear Pivot 1 |
8GC-47361-00-00 |
from US $71.29 |
||
|
42
|
42
90381-20002-00 Bush, Solid |
90381-20002-00 |
from US $12.75 |
||
|
43
|
43
90201-225M9-00 Washer, Plate |
90201-225M9-00 |
from US $1.84 |
||
|
44
|
44
8GC-47368-00-00 Nut |
8GC-47368-00-00 |
from US $29.47 |
||
|
45
|
45
90105-12054-00 Bolt, Flange |
90105-12054-00 |
from US $3.12 |
||
| replacement | |||||
|
45
|
45
958-12120-30-00 Bolt, Flange |
958-12120-30-00 |
from US $3.12 |
||
|
46
|
46
8GC-47332-02-00 Arm, Pivot 2 |
8GC-47332-02-00 |
from US $295.66 |
||
|
47
|
47
8ES-47447-00-00 Hook 2 |
8ES-47447-00-00 |
from US $5.53 |
||
|
48
|
48
99009-14400-00 Circlip |
99009-14400-00 |
from US $2.41 |
||
|
49
|
49
8GC-47445-00-00 Protector |
8GC-47445-00-00 |
from US $8.22 |
||
|
50
|
50
8GC-47473-00-00 Spring, Rear 1 (K=2500Nmm/deg) |
8GC-47473-00-00 |
from US $219.67 |
||
|
50
|
50
8GK-47473-00-00 Spring, Rear 1 (K=2100Nmm/deg)AP |
8GK-47473-00-00 |
from US $208.62 |
||
|
50
|
50
8GP-47473-00-00 Spring, Rear 1 (K=1700Nmm/deg)AP |
8GP-47473-00-00 |
from US $189.28 |
||
|
51
|
51
8GC-47474-00-00 Spring, Rear 2 (K=2500Nmm/deg) |
8GC-47474-00-00 |
from US $219.67 |
||
|
51
|
51
8GK-47474-00-00 Spring, Rear 2 (K=2100Nmm/deg)AP |
8GK-47474-00-00 |
from US $208.62 |
||
|
51
|
51
8GP-47474-00-00 Spring, Rear 2 (K=1700Nmm/deg)AP |
8GP-47474-00-00 |
from US $189.28 |
||
|
52
|
52
91312-08045-00 Bolt |
91312-08045-00 |
from US $1.56 |
||
| replacements | |||||
|
52
|
52
91317-08045-00 Bolt |
91317-08045-00 |
from US $1.56 |
||
|
52
|
52
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
53
|
53
95602-08200-00 Nut, U Flange |
95602-08200-00 |
from US $1.84 |
||
| replacement | |||||
|
53
|
53
901-85081-69-00 Nut, Self-Locking |
901-85081-69-00 |
from US $2.13 |
||
|
54
|
54
8GC-47488-00-00 Shaft 6 |
8GC-47488-00-00 |
from US $29.89 |
||
|
55
|
55
90105-10237-00 Bolt, Flange |
90105-10237-00 |
from US $1.07 |
||
| replacement | |||||
|
55
|
55
958-17100-30-00 Bolt, Flange |
958-17100-30-00 |
from US $1.07 |
||
|
56
|
56
8GC-47417-A0-00 Bracket 3 |
8GC-47417-A0-00 |
from US $70.05 |
||
|
57
|
57
8FU-47485-00-00 Shaft 3 |
8FU-47485-00-00 |
from US $27.49 |
||
|
58
|
58
902-01101-36-00 Washer, Plate |
902-01101-36-00 |
from US $2.13 |
||
|
59
|
59
90105-10237-00 Bolt, Flange |
90105-10237-00 |
from US $1.07 |
||
| replacement | |||||
|
59
|
59
958-17100-30-00 Bolt, Flange |
958-17100-30-00 |
from US $1.07 |
||
|
60
|
60
8GC-47496-00-00 Stopper 2 |
8GC-47496-00-00 |
from US $2.83 |
||
|
61
|
61
8GN-47338-00-00 Collar |
8GN-47338-00-00 |
from US $21.96 |
||
|
62
|
62
97012-10050-00 Bolt |
97012-10050-00 |
from US $3.54 |
||
| replacement | |||||
|
62
|
62
97017-10050-00 Bolt |
97017-10050-00 |
from US $2.94 |
||
|
63
|
63
90201-10061-00 Washer, Plate |
90201-10061-00 |
from US $1.70 |
||
|
64
|
64
956-02102-00-00 Nut, U Flange |
956-02102-00-00 |
from US $1.56 |
||
