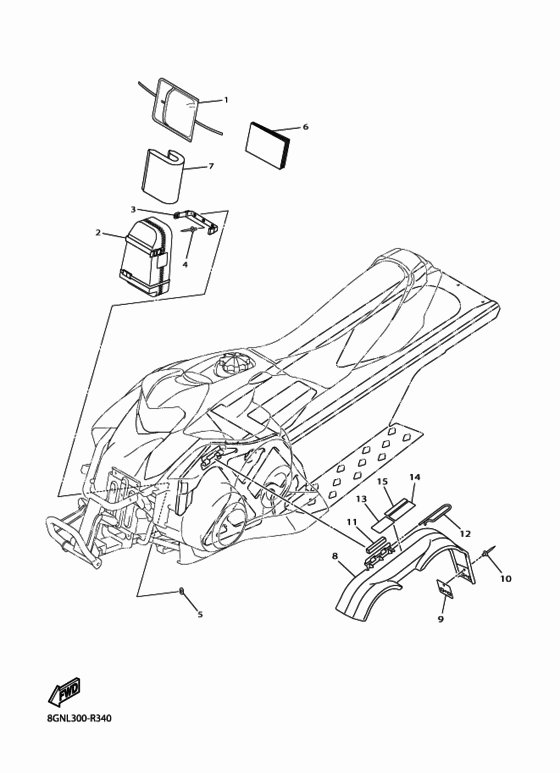

Guard & luggage box Diagram Yamaha PZ50/ RPZ50 Phazer R-TX
- Model code
- 8GNL
- Engine Capacity
- 499
- Year
- 2016
- Sales region
- Europe (010)
- Colour
- Yamaha Black
- Color Variant
- A
- Model
- Phazer R-TX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8GK-28100-00-00 Tool Kit |
8GK-28100-00-00 |
from US $55.82 |
||
|
2
|
2
8GC-77735-00-00 Box, Glove |
8GC-77735-00-00 |
from US $139.54 |
||
|
3
|
3
8GC-2811G-00-00 Band |
8GC-2811G-00-00 |
from US $31.59 |
||
|
4
|
4
90267-47200-00 Rivet, Blind (4.7X19.5 Black) |
90267-47200-00 |
from US $1.98 |
||
|
5
|
5
92902-05200-00 Washer, Plain |
92902-05200-00 |
from US $1.56 |
||
| replacement | |||||
|
5
|
5
92990-05200-00 Washer, Plain |
92990-05200-00 |
from US $1.34 |
||
|
6
|
6
8GK-28199-S9-00
Manual,owner's
|
8GK-28199-S9-00 |
— | ||
|
7
|
7
8GC-28186-00-00 Pouch |
8GC-28186-00-00 |
from US $12.98 |
||
|
8
|
8
8GC-77311-00-00 Guard, Drive |
8GC-77311-00-00 |
from US $54.85 |
||
|
9
|
9
8GC-77373-00-00 Protector |
8GC-77373-00-00 |
from US $2.27 |
||
|
10
|
10
90267-47195-00 Rivet, Blind(4.7X16.4 Yellow) |
90267-47195-00 |
from US $1.98 |
||
|
11
|
11
8CR-77319-00-00 Damper 1 |
8CR-77319-00-00 |
from US $0.59 |
||
|
12
|
12
8CR-77384-01-00 Pin |
8CR-77384-01-00 |
from US $6.09 |
||
|
13
|
13
86D-77762-00-00 Label, Warning 2 |
86D-77762-00-00 |
from US $4.39 |
||
|
14
|
14
8ES-47578-00-00 Label 1 |
8ES-47578-00-00 |
from US $2.27 |
||
|
15
|
15
8GC-1417E-01-00 Label, Caution |
8GC-1417E-01-00 |
from US $1.70 |
||
