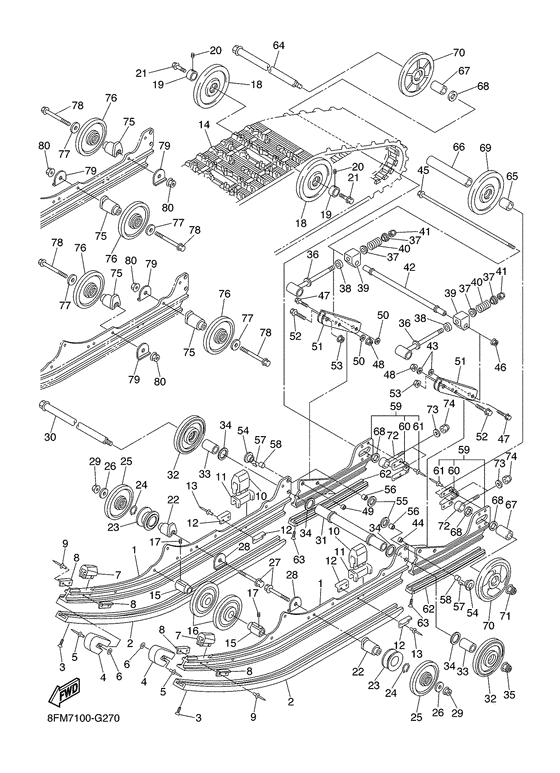

Track suspension 1 Diagram Yamaha RS10/RS90/RST90/RSG90 RS Venture TF
- Model code
- 8FM8
- Engine Capacity
- 1000
- Year
- 2008
- Sales region
- Russia (020)
- Colour
- Silver 3 (S3; 0791)
- Power
- 120 hp
- Model
- RS Venture TF
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
8FM-4741A-01-00 Frame, Sliding |
8FM-4741A-01-00 |
from US $211.38 |
||
|
02
|
02
8FM-47421-00-00 Runner,sliding 1 |
8FM-47421-00-00 |
from US $26.77 |
||
| replacement | |||||
|
02
|
02
8FM-47421-00-XX RUNNER,SLIDING |
8FM-47421-00-XX |
US $25.60 |
||
|
03
|
03
90151-06010-00 Screw, Countersunk |
90151-06010-00 |
from US $1.70 |
||
| replacement | |||||
|
03
|
03
901-51060-05-00 Screw, Countersunk |
901-51060-05-00 |
from US $1.70 |
||
|
04
|
04
8ED-47422-00-00 Runner, Sliding 2 |
8ED-47422-00-00 |
from US $35.14 |
||
|
05
|
05
902-67481-94-00 Rivet, Blind (4.8X28 Silver) |
902-67481-94-00 |
from US $1.42 |
||
|
06
|
06
90201-047R8-00 Washer, Plate |
90201-047R8-00 |
from US $1.35 |
||
|
07
|
07
8ES-47456-00-00 Damper 1 |
8ES-47456-00-00 |
from US $4.11 |
||
|
08
|
08
8K2-47458-01-00 Plate, Damper |
8K2-47458-01-00 |
from US $4.53 |
||
|
09
|
09
902-67481-99-00 Rivet, Blind (4.8X28.3) |
902-67481-99-00 |
from US $1.98 |
||
|
10
|
10
8CM-47457-00-00 Damper 2 |
8CM-47457-00-00 |
from US $8.36 |
||
|
11
|
11
8CM-47341-00-00 Spacer |
8CM-47341-00-00 |
from US $6.23 |
||
|
12
|
12
8AX-47458-00-00 Plate, Damper |
8AX-47458-00-00 |
from US $5.53 |
||
|
13
|
13
902-67481-99-00 Rivet, Blind (4.8X28.3) |
902-67481-99-00 |
from US $1.98 |
||
|
14
|
14
8FM-47110-10-00 Track Assy |
8FM-47110-10-00 |
US $1,808.40 |
||
| replacements | |||||
|
14
|
14
8FM-47110-20-00 Track Assy |
8FM-47110-20-00 |
from US $1,808.40 |
||
|
14
|
14
SMA-TRACK-90-07 TRACK RIP SAW 15X151 |
SMA-TRACK-90-07 |
US $1,469.72 |
||
|
15
|
15
8ES-47319-01-00 Collar |
8ES-47319-01-00 |
from US $14.73 |
||
|
16
|
16
8ET-47310-00-00 Suspension Wheel Assy |
8ET-47310-00-00 |
from US $88.98 |
||
|
17
|
17
90113-06039-00 Bolt, Set (8K2) |
90113-06039-00 |
from US $1.84 |
||
|
18
|
18
8CR-47550-00-00 Guide Wheel Assy |
8CR-47550-00-00 |
from US $29.16 |
||
|
19
|
19
8ES-47365-00-00 Collar 1 |
8ES-47365-00-00 |
from US $8.36 |
||
|
20
|
20
90113-06039-00 Bolt, Set (8K2) |
90113-06039-00 |
from US $1.84 |
||
|
21
|
21
90105-103A1-00 Bolt |
90105-103A1-00 |
from US $2.41 |
||
| replacement | |||||
|
21
|
21
901-09107-71-00 Bolt |
901-09107-71-00 |
from US $2.41 |
||
|
22
|
22
8ES-47419-10-00 Bracket 7 |
8ES-47419-10-00 |
from US $11.33 |
||
|
23
|
23
8ET-47446-00-00 Hook 1 |
8ET-47446-00-00 |
from US $6.80 |
||
|
24
|
24
990-09354-00-00
Circlip (6U2)
|
990-09354-00-00 |
— | ||
| replacement | |||||
|
24
|
24
93410-35M10-00 Circlip (6U2) |
93410-35M10-00 |
from US $4.11 |
||
|
25
|
25
8ET-47310-00-00 Suspension Wheel Assy |
8ET-47310-00-00 |
from US $88.98 |
||
|
26
|
26
90201-104A7-00 Washer, Plate |
90201-104A7-00 |
from US $3.74 |
||
| replacement | |||||
|
26
|
26
90201-105H3-00 Washer, Plate |
90201-105H3-00 |
from US $4.11 |
||
|
27
|
27
958-17100-80-00 Bolt, Flange |
958-17100-80-00 |
from US $4.39 |
||
|
28
|
28
90214-10003-00 Washer, Claw |
90214-10003-00 |
from US $8.08 |
||
|
29
|
29
956-07102-00-00 Nut, U Flange |
956-07102-00-00 |
from US $5.67 |
||
|
30
|
30
8L8-47520-10-00 Rear Axle Comp |
8L8-47520-10-00 |
from US $31.17 |
||
|
31
|
31
8FM-47469-00-00 Collar 1 |
8FM-47469-00-00 |
from US $19.55 |
||
|
32
|
32
8FM-47310-00-00 Suspension Wheel Assy |
8FM-47310-00-00 |
from US $68.39 |
||
|
33
|
33
903-87200-19-00 Collar |
903-87200-19-00 |
from US $7.08 |
||
|
34
|
34
90201-205R6-00 Washer, Plate |
90201-205R6-00 |
from US $8.50 |
||
|
35
|
35
956-07142-00-00 Nut, Self-Locking |
956-07142-00-00 |
from US $7.48 |
||
|
36
|
36
83R-47337-00-00 Shaft, Pivot |
83R-47337-00-00 |
from US $23.94 |
||
|
37
|
37
83R-23768-00-00 Seat, Spring 1 |
83R-23768-00-00 |
from US $4.53 |
||
|
38
|
38
83R-47335-00-00 Spring |
83R-47335-00-00 |
from US $8.64 |
||
|
39
|
39
83R-47446-00-00 Hook 1 |
83R-47446-00-00 |
from US $18.42 |
||
|
40
|
40
90501-407E4-00 Spring, Compression |
90501-407E4-00 |
from US $6.23 |
||
|
41
|
41
95707-12300-00 Nut, Flange |
95707-12300-00 |
from US $3.54 |
||
| replacement | |||||
|
41
|
41
95717-12300-00 Nut, Flange |
95717-12300-00 |
from US $2.66 |
||
|
42
|
42
8FM-47478-00-00 Collar 2 |
8FM-47478-00-00 |
from US $30.32 |
||
|
43
|
43
90201-08649-00 Washer, Plate |
90201-08649-00 |
from US $1.28 |
||
|
44
|
44
90387-082J1-00 Collar |
90387-082J1-00 |
from US $2.13 |
||
|
45
|
45
90105-08069-00 Bolt, Flange |
90105-08069-00 |
from US $10.06 |
||
|
46
|
46
95607-08200-00 Nut, Self-Locking |
95607-08200-00 |
from US $2.13 |
||
| replacement | |||||
|
46
|
46
901-85081-69-00 Nut, Self-Locking |
901-85081-69-00 |
from US $2.13 |
||
|
47
|
47
95812-08035-00 Bolt, Flange |
95812-08035-00 |
from US $1.07 |
||
| replacement | |||||
|
47
|
47
95817-08035-00 Bolt, Flange |
95817-08035-00 |
from US $1.07 |
||
|
48
|
48
95602-08200-00 Nut, U Flange |
95602-08200-00 |
from US $1.84 |
||
| replacement | |||||
|
48
|
48
901-85081-69-00 Nut, Self-Locking |
901-85081-69-00 |
from US $2.13 |
||
|
49
|
49
90387-082J1-00 Collar |
90387-082J1-00 |
from US $2.13 |
||
|
50
|
50
90201-08649-00 Washer, Plate |
90201-08649-00 |
from US $1.28 |
||
|
51
|
51
8FM-47333-00-00 Arm, Pivot 3 |
8FM-47333-00-00 |
from US $18.28 |
||
|
52
|
52
958-17100-30-00 Bolt, Flange |
958-17100-30-00 |
from US $1.07 |
||
|
53
|
53
90185-10115-00 Nut, Self-Locking |
90185-10115-00 |
from US $1.84 |
||
| replacement | |||||
|
53
|
53
90185-10154-00 Nut, Self-Locking |
90185-10154-00 |
from US $2.69 |
||
|
54
|
54
90387-1815A-00 Collar |
90387-1815A-00 |
from US $35.56 |
||
|
55
|
55
90202-22238-00 Washer, Plate |
90202-22238-00 |
from US $1.84 |
||
|
56
|
56
90387-1014Y-00 Collar |
90387-1014Y-00 |
from US $8.93 |
||
|
57
|
57
91609-30008-00 Pin,spring |
91609-30008-00 |
from US $1.56 |
||
| replacement | |||||
|
57
|
57
91690-30008-00 Pin, Spring |
91690-30008-00 |
from US $1.56 |
||
|
58
|
58
90380-16109-00 Bush, Solid |
90380-16109-00 |
from US $7.37 |
||
|
59
|
59
8FM-W4741-10-00 Frame, Sliding |
8FM-W4741-10-00 |
from US $126.42 |
||
|
60
|
60
8DM-4741B-00-00 Bracket |
8DM-4741B-00-00 |
from US $18.70 |
||
|
61
|
61
8V0-47468-00-00 Rivet |
8V0-47468-00-00 |
from US $1.42 |
||
|
62
|
62
8FM-47424-00-00 Runner,sliding 4 |
8FM-47424-00-00 |
US $18.42 |
||
| replacements | |||||
|
62
|
62
8FM-47424-00-XX Runner,sliding |
8FM-47424-00-XX |
US $11.92 |
||
|
62
|
62
8FM-47424-00-BK
Sld Wide Slides 151 P25 Bk Rr
|
8FM-47424-00-BK |
— | ||
|
63
|
63
90151-06010-00 Screw, Countersunk |
90151-06010-00 |
from US $1.70 |
||
| replacement | |||||
|
63
|
63
901-51060-05-00 Screw, Countersunk |
901-51060-05-00 |
from US $1.70 |
||
|
64
|
64
8L8-47520-10-00 Rear Axle Comp |
8L8-47520-10-00 |
from US $31.17 |
||
|
65
|
65
90387-20015-00 Collar |
90387-20015-00 |
from US $5.81 |
||
|
66
|
66
90387-20016-00 Collar |
90387-20016-00 |
from US $14.03 |
||
|
67
|
67
903-87200-19-00 Collar |
903-87200-19-00 |
from US $7.08 |
||
|
68
|
68
90201-205R6-00 Washer, Plate |
90201-205R6-00 |
from US $8.50 |
||
|
69
|
69
8CR-47550-10-00 Guide Wheel Assy |
8CR-47550-10-00 |
from US $27.99 |
||
|
70
|
70
8EK-47550-10-00 Guide Wheel Assy |
8EK-47550-10-00 |
from US $93.26 |
||
|
71
|
71
956-07142-00-00 Nut, Self-Locking |
956-07142-00-00 |
from US $7.48 |
||
|
72
|
72
8DM-47479-00-00 Collar 3 |
8DM-47479-00-00 |
from US $12.04 |
||
|
73
|
73
929-02106-00-00 Washer, Plate |
929-02106-00-00 |
US $1.07 |
||
| replacement | |||||
|
73
|
73
929-90106-00-00 Washer, Plate |
929-90106-00-00 |
from US $1.07 |
||
|
74
|
74
95702-10300-00 Nut, Flange |
95702-10300-00 |
from US $2.24 |
||
| replacement | |||||
|
74
|
74
95707-10300-00 Nut, Flange |
95707-10300-00 |
from US $1.34 |
||
|
75
|
75
8ES-47419-00-00 Bracket 7 |
8ES-47419-00-00 |
from US $11.33 |
||
|
76
|
76
8ET-47310-00-00 Suspension Wheel Assy |
8ET-47310-00-00 |
from US $88.98 |
||
|
77
|
77
90201-104A7-00 Washer, Plate |
90201-104A7-00 |
from US $3.74 |
||
| replacement | |||||
|
77
|
77
90201-105H3-00 Washer, Plate |
90201-105H3-00 |
from US $4.11 |
||
|
78
|
78
958-17100-80-00 Bolt, Flange |
958-17100-80-00 |
from US $4.39 |
||
|
79
|
79
90214-10003-00 Washer, Claw |
90214-10003-00 |
from US $8.08 |
||
|
80
|
80
956-07102-00-00 Nut, U Flange |
956-07102-00-00 |
from US $5.67 |
||
