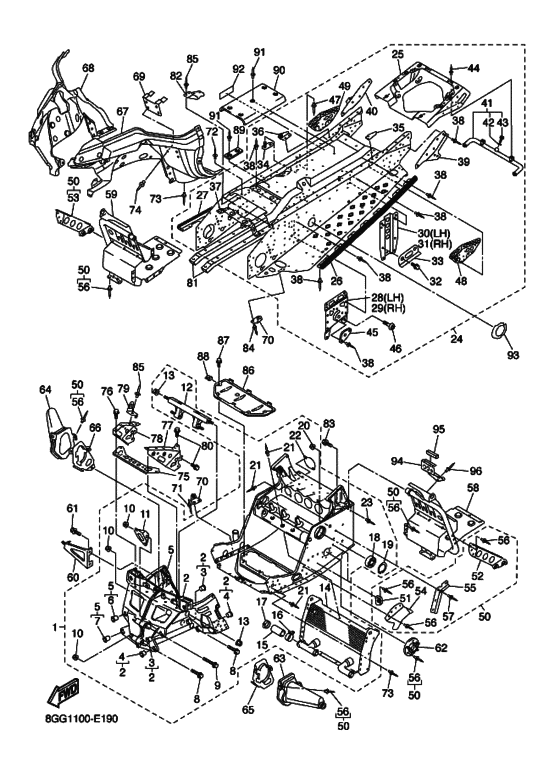

Frame Diagram Yamaha RS10/RS90/RST90/RSG90 RS Vector GT
- Model code
- 8GG1
- Engine Capacity
- 1000
- Year
- 2006
- Sales region
- Europe (020)
- Colour
- Yamaha Black (YB; 0033)
- Color Variant
- A
- Power
- 120 hp
- Model
- RS Vector GT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8ES-21940-00-00 Front Frame Comp |
8ES-21940-00-00 |
US $2,042.01 |
||
| replacement | |||||
|
1
|
1
8ES-21940-01-00 Front Frame Comp |
8ES-21940-01-00 |
US $2,041.11 |
||
|
2
|
2
8FA-W2197-11-00 Bulkhead |
8FA-W2197-11-00 |
from US $495.13 |
||
| replacement | |||||
|
2
|
2
8FA-W2197-13-00 Bulkhead |
8FA-W2197-13-00 |
from US $495.13 |
||
|
3
|
3
90381-15001-00 Bush, Solid |
90381-15001-00 |
from US $2.55 |
||
|
4
|
4
90381-16001-00 Bush, Solid |
90381-16001-00 |
from US $4.25 |
||
| replacement | |||||
|
4
|
4
903-81160-04-00 Bush, Solid |
903-81160-04-00 |
from US $4.11 |
||
|
5
|
5
8FA-W2198-11-00 Bulkhead 2 |
8FA-W2198-11-00 |
from US $495.13 |
||
| replacements | |||||
|
5
|
5
8FA-W2198-15-00 Bulkhead 2 |
8FA-W2198-15-00 |
from US $495.13 |
||
|
5
|
5
8FA-W2198-20-00 Bulkhead 2 |
8FA-W2198-20-00 |
US $509.63 |
||
|
6
|
6
90381-15001-00 Bush, Solid |
90381-15001-00 |
from US $2.55 |
||
|
7
|
7
90381-16001-00 Bush, Solid |
90381-16001-00 |
from US $4.25 |
||
| replacement | |||||
|
7
|
7
903-81160-04-00 Bush, Solid |
903-81160-04-00 |
from US $4.11 |
||
|
8
|
8
95827-08060-00 Bolt, Flange |
95827-08060-00 |
from US $1.07 |
||
| replacement | |||||
|
8
|
8
958-17080-60-00 Bolt, Flange |
958-17080-60-00 |
from US $1.07 |
||
|
9
|
9
95827-08065-00 Bolt, Flange |
95827-08065-00 |
from US $5.10 |
||
| replacements | |||||
|
9
|
9
90105-084A1-00 Bolt, Flange |
90105-084A1-00 |
from US $5.10 |
||
|
9
|
9
90105-08721-00 Bolt, Washer Based(4Jg) |
90105-08721-00 |
from US $4.79 |
||
|
10
|
10
95607-08200-00 Nut, Self-Locking |
95607-08200-00 |
from US $2.13 |
||
| replacement | |||||
|
10
|
10
901-85081-69-00 Nut, Self-Locking |
901-85081-69-00 |
from US $2.13 |
||
|
11
|
11
8FA-2128A-00-00 Bracket, Regulator |
8FA-2128A-00-00 |
from US $6.23 |
||
| replacement | |||||
|
11
|
11
8FA-2128A-01-00 Bracket, Regulator |
8FA-2128A-01-00 |
from US $6.23 |
||
|
12
|
12
8FG-21947-00-00 Bracket, Steering 1 |
8FG-21947-00-00 |
from US $146.45 |
||
|
13
|
13
956-07102-00-00 Nut, U Flange |
956-07102-00-00 |
from US $5.67 |
||
|
14
|
14
8FA-12440-00-00 Heat Exchanger Assy |
8FA-12440-00-00 |
from US $501.95 |
||
|
15
|
15
8FA-12551-00-00 Hose 7 |
8FA-12551-00-00 |
from US $3.97 |
||
|
16
|
16
90467-28046-00 Clip (8M6) |
90467-28046-00 |
from US $3.54 |
||
|
17
|
17
904-50350-01-00 Hose Clamp Assy |
904-50350-01-00 |
from US $5.24 |
||
|
18
|
18
93306-20650-00 Bearing |
93306-20650-00 |
from US $44.21 |
||
|
19
|
19
99009-62500-00 Circlip |
99009-62500-00 |
from US $1.98 |
||
|
20
|
20
95607-08200-00 Nut, Self-Locking |
95607-08200-00 |
from US $2.13 |
||
| replacement | |||||
|
20
|
20
901-85081-69-00 Nut, Self-Locking |
901-85081-69-00 |
from US $2.13 |
||
|
21
|
21
90267-47195-00 Rivet, Blind(4.7X16.4 Yellow) |
90267-47195-00 |
from US $1.98 |
||
|
22
|
22
8ES-2131D-00-00 Plate, Cover |
8ES-2131D-00-00 |
from US $3.26 |
||
|
23
|
23
90267-48016-00 Rivet, Blind (4.8X16.4 Yellow |
90267-48016-00 |
from US $1.84 |
||
|
24
|
24
8GG-21950-00-00 Rear Frame CompUR FOR YB |
8GG-21950-00-00 |
US $2,647.06 |
||
| replacement | |||||
|
24
|
24
8GG-21950-01-00 Rear Frame CompUR FOR YB |
8GG-21950-01-00 |
US $2,647.06 |
||
|
25
|
25
8FA-W2199-10-00 Reineforcement, Frame Rear 1 |
8FA-W2199-10-00 |
from US $422.84 |
||
|
26
|
26
8FU-21926-00-00 Reinforcement, Footrest 1 |
8FU-21926-00-00 |
from US $154.74 |
||
|
27
|
27
8FU-21936-00-00 Reinforcement, Footrest 2 |
8FU-21936-00-00 |
from US $154.74 |
||
|
28
|
28
8FU-21943-00-00 Bracket, Main Track 1 |
8FU-21943-00-00 |
from US $20.20 |
||
|
29
|
29
8FU-21953-00-00 Bracket, Main Track 2 |
8FU-21953-00-00 |
from US $24.09 |
||
|
30
|
30
8FP-21944-00-00 Bracket, Rr. Track Suspensi |
8FP-21944-00-00 |
from US $20.83 |
||
|
31
|
31
8FP-21954-00-00 Bracket, Rr. Track Suspensi |
8FP-21954-00-00 |
from US $20.83 |
||
|
32
|
32
958-17100-20-00 Bolt, FlangeUR FOR YB |
958-17100-20-00 |
from US $1.07 |
||
|
32
|
32
95814-10020-00 Bolt, FlangeUR FOR DRMK |
95814-10020-00 |
from US $3.26 |
||
|
33
|
33
8FP-21988-00-00 Patch 8UR FOR YB |
8FP-21988-00-00 |
US $11.21 |
||
|
33
|
33
8FU-21988-01-00 Patch 8UR FOR DRMK |
8FU-21988-01-00 |
from US $5.81 |
||
|
34
|
34
8CR-2194N-00-00 Bracket, Fuel Tank 1 |
8CR-2194N-00-00 |
from US $2.41 |
||
|
35
|
35
8FA-2194X-00-00 Bracket 1 |
8FA-2194X-00-00 |
from US $1.98 |
||
|
36
|
36
8FA-2195X-00-00 Bracket 2 |
8FA-2195X-00-00 |
from US $1.98 |
||
|
37
|
37
8ES-2194H-00-00 Protector, Muffler |
8ES-2194H-00-00 |
from US $45.59 |
||
|
38
|
38
90267-47186-00 Rivet, Blind (4.7X16.4 Black)QTY:122 |
90267-47186-00 |
from US $1.35 |
||
|
38
|
38
90267-47195-00 Rivet, Blind(4.7X16.4 Yellow)QTY:122 |
90267-47195-00 |
from US $1.98 |
||
|
39
|
39
8FU-21963-00-00 Patch 3 |
8FU-21963-00-00 |
from US $14.03 |
||
|
40
|
40
8FU-21964-00-00 Patch 4 |
8FU-21964-00-00 |
from US $14.03 |
||
|
41
|
41
8FU-1241A-00-00 Heat Exchanger Assy 4 |
8FU-1241A-00-00 |
from US $120.06 |
||
|
42
|
42
90210-06006-00 Washer, Seal |
90210-06006-00 |
from US $1.98 |
||
|
43
|
43
95817-06016-00 Bolt, Flange |
95817-06016-00 |
from US $1.07 |
||
|
44
|
44
90267-48095-00 Rivet, Blind (4.8X12.6 Silver) |
90267-48095-00 |
from US $1.98 |
||
|
45
|
45
8FP-21919-00-00 Bracket, Main Track 3UR FOR YB |
8FP-21919-00-00 |
US $7.78 |
||
|
45
|
45
8FU-21919-00-00 Bracket, Main Track 3UR FOR DRMK |
8FU-21919-00-00 |
from US $3.83 |
||
|
46
|
46
92017-10020-00 Bolt, Button HeadUR FOR YB |
92017-10020-00 |
from US $2.13 |
||
|
46
|
46
92014-10020-00 Bolt, Button HeadUR FOR DRMK |
92014-10020-00 |
from US $4.11 |
||
|
47
|
47
90267-47195-00 Rivet, Blind(4.7X16.4 Yellow) |
90267-47195-00 |
from US $1.98 |
||
|
48
|
48
8FP-21928-00-00 Reinf., Sub Frame 1 |
8FP-21928-00-00 |
from US $23.94 |
||
|
49
|
49
8FP-21938-00-00 Reinf., Sub Frame 2 |
8FP-21938-00-00 |
from US $23.94 |
||
|
50
|
50
8FK-W2195-00-00 Frame Connection Kit |
8FK-W2195-00-00 |
from US $114.80 |
||
|
51
|
51
8CR-21939-01-00 Bracket, Chain Housing |
8CR-21939-01-00 |
from US $4.39 |
||
|
52
|
52
8FU-2196M-00-00 Bracket, 5 |
8FU-2196M-00-00 |
from US $10.48 |
||
|
53
|
53
8FU-2197M-00-00 Bracket, 6 |
8FU-2197M-00-00 |
from US $10.48 |
||
|
54
|
54
8FU-2198G-00-00 Cover 2 |
8FU-2198G-00-00 |
from US $14.31 |
||
|
55
|
55
8FA-21999-00-00 Clamp, Wire Harness |
8FA-21999-00-00 |
from US $3.40 |
||
|
56
|
56
90267-47195-00 Rivet, Blind(4.7X16.4 Yellow) |
90267-47195-00 |
from US $1.98 |
||
|
57
|
57
90267-48018-00 Rivet, Blind (4.8X18.6 Black) |
90267-48018-00 |
from US $1.28 |
||
|
58
|
58
8FU-21960-00-00 Footrest Comp. 1 |
8FU-21960-00-00 |
from US $151.98 |
||
| replacement | |||||
|
58
|
58
8FU-21960-01-00 Footrest Comp. 1 |
8FU-21960-01-00 |
from US $151.98 |
||
|
59
|
59
8FU-21970-00-00 Footrest Comp. 2 |
8FU-21970-00-00 |
from US $151.98 |
||
| replacement | |||||
|
59
|
59
8FU-21970-01-00 Footrest Comp. 2 |
8FU-21970-01-00 |
from US $151.98 |
||
|
60
|
60
8ES-2193E-00-00 Bracket, Oil Tank 1 |
8ES-2193E-00-00 |
from US $11.33 |
||
|
61
|
61
95827-08014-00 Bolt, Flange |
95827-08014-00 |
from US $1.56 |
||
| replacement | |||||
|
61
|
61
958-17080-14-00 Bolt, Flange |
958-17080-14-00 |
from US $1.34 |
||
|
62
|
62
8EK-21920-01-00 Housing, Reinf Sub-Assy (L.h) |
8EK-21920-01-00 |
from US $10.48 |
||
|
63
|
63
8FU-2198F-00-00 Cover 1 |
8FU-2198F-00-00 |
from US $17.71 |
||
| replacement | |||||
|
63
|
63
8FU-2198F-01-00 Cover 1 |
8FU-2198F-01-00 |
from US $17.71 |
||
|
64
|
64
8FU-2198J-00-00 Cover 3 |
8FU-2198J-00-00 |
from US $17.71 |
||
| replacement | |||||
|
64
|
64
8FU-2198J-01-00 Cover 3 |
8FU-2198J-01-00 |
from US $17.71 |
||
|
65
|
65
8FU-2195E-01-00 Plate, Steering Bracket 1 |
8FU-2195E-01-00 |
from US $8.36 |
||
|
66
|
66
8FU-2195F-01-00 Plate, Steering Bracket 2 |
8FU-2195F-01-00 |
from US $8.36 |
||
|
67
|
67
8ES-2196A-00-00 Frame Under 1 |
8ES-2196A-00-00 |
from US $37.72 |
||
| replacement | |||||
|
67
|
67
8ES-2196A-01-00 Frame Under 1 |
8ES-2196A-01-00 |
from US $37.72 |
||
|
68
|
68
8FA-2196E-00-00 Frame, Under 2 |
8FA-2196E-00-00 |
from US $43.38 |
||
| replacement | |||||
|
68
|
68
8FA-2196E-01-00 Frame, Under 2 |
8FA-2196E-01-00 |
from US $43.38 |
||
|
69
|
69
8FA-21972-00-00 Bracket, Guard Fitting |
8FA-21972-00-00 |
from US $4.11 |
||
| replacement | |||||
|
69
|
69
8FA-21972-01-00 Bracket, Guard Fitting |
8FA-21972-01-00 |
from US $4.11 |
||
|
70
|
70
8FA-2196F-00-00 Bracket 3 |
8FA-2196F-00-00 |
from US $2.69 |
||
|
71
|
71
90267-48083-00 Rivet, Blind |
90267-48083-00 |
from US $2.55 |
||
|
72
|
72
90267-48169-00 Rivet, Blind (4.7X16.4 Black) |
90267-48169-00 |
from US $1.35 |
||
| replacement | |||||
|
72
|
72
90267-47186-00 Rivet, Blind (4.7X16.4 Black) |
90267-47186-00 |
from US $1.35 |
||
|
73
|
73
90267-48018-00 Rivet, Blind (4.8X18.6 Black) |
90267-48018-00 |
from US $1.28 |
||
|
74
|
74
90267-47200-00 Rivet, Blind (4.7X19.5 Black) |
90267-47200-00 |
from US $1.98 |
||
|
75
|
75
8FA-77512-00-00 Bumper, Front 2 |
8FA-77512-00-00 |
from US $25.64 |
||
|
76
|
76
958-27060-12-00
Bolt, Flange
|
958-27060-12-00 |
— | ||
| replacement | |||||
|
76
|
76
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.07 |
||
|
77
|
77
8FA-21949-00-00 Bracket, Front |
8FA-21949-00-00 |
from US $17.99 |
||
|
78
|
78
8FA-21959-00-00 Bracket, Front Bumper |
8FA-21959-00-00 |
from US $17.99 |
||
|
79
|
79
8FA-77125-00-00 Stay 1 |
8FA-77125-00-00 |
from US $2.69 |
||
|
80
|
80
95827-08016-00 Bolt, Flange |
95827-08016-00 |
from US $1.07 |
||
| replacements | |||||
|
80
|
80
901-0508X-15-00
Blt,hex,1/4-20X5/8
|
901-0508X-15-00 |
— | ||
|
80
|
80
958-17080-16-00 Bolt, Flange |
958-17080-16-00 |
from US $1.07 |
||
|
81
|
81
8FA-21978-01-00 Protector, Frame |
8FA-21978-01-00 |
from US $53.74 |
||
|
82
|
82
8FU-2197N-00-00 Bracket 7 |
8FU-2197N-00-00 |
from US $7.93 |
||
|
83
|
83
95827-08020-00 Bolt, Flange |
95827-08020-00 |
from US $0.85 |
||
| replacement | |||||
|
83
|
83
958-17080-20-00 Bolt, Flange |
958-17080-20-00 |
from US $0.85 |
||
|
84
|
84
90267-48095-00 Rivet, Blind (4.8X12.6 Silver) |
90267-48095-00 |
from US $1.98 |
||
|
85
|
85
90267-47195-00 Rivet, Blind(4.7X16.4 Yellow) |
90267-47195-00 |
from US $1.98 |
||
|
86
|
86
8FA-2197E-01-00
Protector, Frame Fr
|
8FA-2197E-01-00 |
— | ||
|
87
|
87
90109-065F3-00 Bolt |
90109-065F3-00 |
from US $1.84 |
||
|
88
|
88
901-83060-53-00
Nut, Spring
|
901-83060-53-00 |
— | ||
| replacement | |||||
|
88
|
88
90183-06069-00 Nut, Spring |
90183-06069-00 |
from US $3.54 |
||
|
89
|
89
8FA-21998-00-00 Spacer |
8FA-21998-00-00 |
from US $3.12 |
||
|
90
|
90
8FG-23892-00-00 Shield, Heat |
8FG-23892-00-00 |
from US $35.85 |
||
|
91
|
91
90267-48059-00 Rivet, Blind (4.8X12.3) |
90267-48059-00 |
from US $1.70 |
||
|
92
|
92
8ES-2179D-00-00 Plete, Epa Offroad 2 |
8ES-2179D-00-00 |
US $3.71 |
||
|
93
|
93
8FU-474AA-00-00 Graphic, 1 |
8FU-474AA-00-00 |
from US $18.84 |
||
|
94
|
94
8FA-21973-00-00 Hook |
8FA-21973-00-00 |
from US $8.08 |
||
|
95
|
95
8CR-77319-00-00 Damper 1 |
8CR-77319-00-00 |
from US $0.59 |
||
|
96
|
96
90267-47195-00 Rivet, Blind(4.7X16.4 Yellow) |
90267-47195-00 |
from US $1.98 |
||
