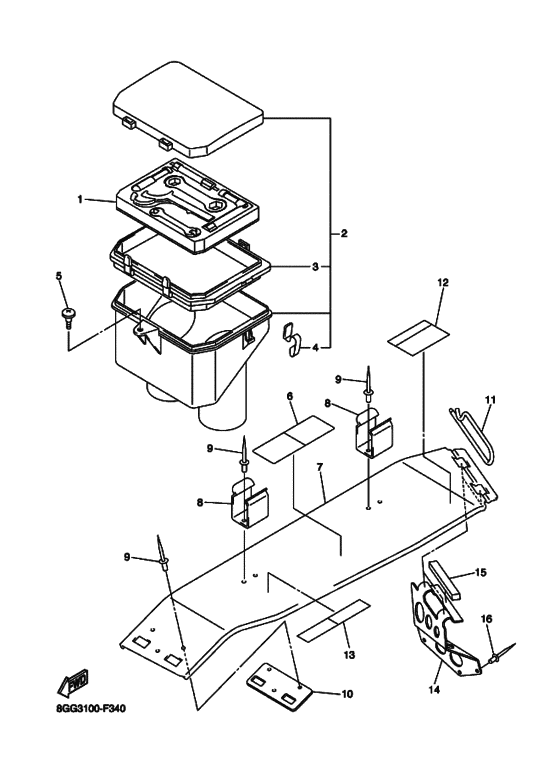

Guard & luggage box Diagram Yamaha RS10/RS90/RST90/RSG90 RS Vector GT
- Model code
- 8GG3
- Engine Capacity
- 1000
- Year
- 2007
- Sales region
- Europe (020)
- Colour
- Yamaha Black (YB; 0033)
- Color Variant
- A
- Power
- 120 hp
- Model
- RS Vector GT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8FU-28100-10-00 Tool Kit |
8FU-28100-10-00 |
from US $94.78 |
||
|
2
|
2
8FA-77390-00-00 Luggage Box Assy |
8FA-77390-00-00 |
from US $80.55 |
||
|
3
|
3
8FA-77381-00-00 Box, Tool |
8FA-77381-00-00 |
from US $13.46 |
||
|
4
|
4
8FA-2814E-00-00 Hook |
8FA-2814E-00-00 |
from US $5.24 |
||
|
5
|
5
90154-06009-00 Screw, Binding |
90154-06009-00 |
from US $2.69 |
||
|
6
|
6
8ES-47578-00-00 Label 1 |
8ES-47578-00-00 |
from US $2.27 |
||
|
7
|
7
8FA-77311-02-00 Guard, Drive |
8FA-77311-02-00 |
from US $41.72 |
||
|
8
|
8
8CR-77338-00-00 Stay, Belt |
8CR-77338-00-00 |
from US $4.53 |
||
|
9
|
9
90267-48010-00 Rivet, Blind |
90267-48010-00 |
from US $1.28 |
||
|
10
|
10
8FA-77373-00-00 Protector |
8FA-77373-00-00 |
from US $1.84 |
||
|
11
|
11
8CR-77384-01-00 Pin |
8CR-77384-01-00 |
from US $6.09 |
||
|
12
|
12
8BD-77762-00-00 Label, Warning 2 |
8BD-77762-00-00 |
from US $3.12 |
||
|
13
|
13
8ES-1417E-00-00 Label, Caution |
8ES-1417E-00-00 |
from US $1.70 |
||
|
14
|
14
8FA-21973-00-00 Hook |
8FA-21973-00-00 |
from US $8.08 |
||
|
15
|
15
8CR-77319-00-00 Damper 1 |
8CR-77319-00-00 |
from US $0.59 |
||
|
16
|
16
90267-47195-00 Rivet, Blind(4.7X16.4 Yellow) |
90267-47195-00 |
from US $1.98 |
