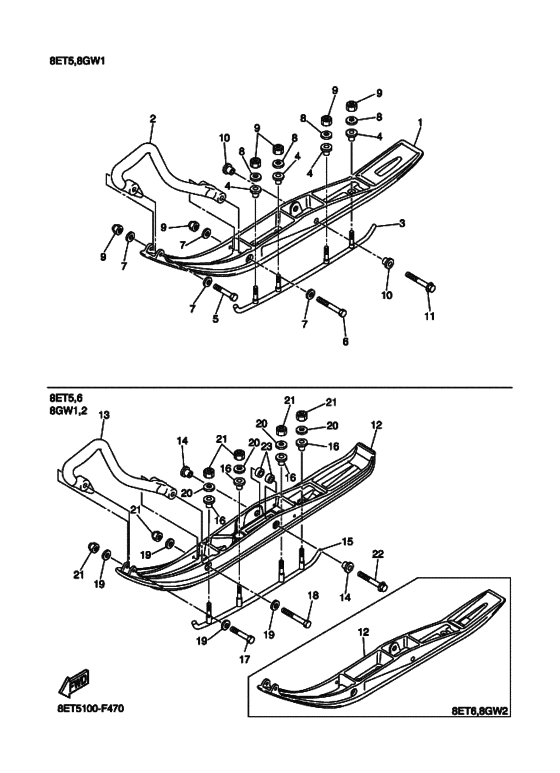

Alternate ski Diagram Yamaha RS10/RS90/RST90/RSG90 RS Venture GT
- Model code
- 8GW1
- Engine Capacity
- 1000
- Year
- 2007
- Sales region
- Europe (020)
- Colour
- Yamaha Black (YB; 0033)
- Color Variant
- A
- Power
- 120 hp
- Model
- RS Venture GT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8ES-F3711-00-00 Ski 1AP |
8ES-F3711-00-00 |
US $117.99 |
||
| replacement | |||||
|
1
|
1
8ES-23711-00-BK Ski 1AP |
8ES-23711-00-BK |
US $139.63 |
||
|
2
|
2
8DM-F3712-00-00 Reinforcement, HeadAP |
8DM-F3712-00-00 |
from US $27.61 |
||
| replacement | |||||
|
2
|
2
8DM-23712-00-BK Reinforcement, HeadAP |
8DM-23712-00-BK |
US $25.99 |
||
|
3
|
3
8EK-F3731-00-00
Runner 1
AP |
8EK-F3731-00-00 |
— | ||
| replacements | |||||
|
3
|
3
SMA-F3731-EK-00
element
AP |
SMA-F3731-EK-00 |
— | ||
|
3
|
3
8EK-23731-00-XX
Runner 1
AP |
8EK-23731-00-XX |
— | ||
|
4
|
4
8EK-F3751-00-00 Bush, Ski 1AP |
8EK-F3751-00-00 |
from US $4.68 |
||
| replacements | |||||
|
4
|
4
999-99999-99-00
Not Available
AP |
999-99999-99-00 |
— | ||
|
4
|
4
8EK-23751-00-00 Bush, Ski 1AP |
8EK-23751-00-00 |
from US $4.68 |
||
|
5
|
5
9702M-08055-00 BoltAP |
9702M-08055-00 |
from US $4.68 |
||
| replacement | |||||
|
5
|
5
97017-08055-00 BoltAP |
97017-08055-00 |
from US $4.68 |
||
|
6
|
6
9702M-08100-00 BoltAP |
9702M-08100-00 |
from US $2.13 |
||
| replacement | |||||
|
6
|
6
970-27081-00-00 Bolt, HexagonAP |
970-27081-00-00 |
from US $2.13 |
||
|
7
|
7
90201-08784-00 Washer, PlateAP |
90201-08784-00 |
from US $1.70 |
||
|
8
|
8
90201-086P8-00 Washer, Plate(3Xp)AP |
90201-086P8-00 |
from US $1.70 |
||
|
9
|
9
9570M-08300-00 Nut, NylonAP |
9570M-08300-00 |
from US $3.21 |
||
| replacement | |||||
|
9
|
9
957-17083-00-00 Nut, FlangeAP |
957-17083-00-00 |
from US $3.26 |
||
|
10
|
10
8EX-F3754-00-00 Collar 1AP |
8EX-F3754-00-00 |
from US $10.80 |
||
| replacements | |||||
|
10
|
10
8JH-23754-00-00 Collar, 1AP |
8JH-23754-00-00 |
from US $11.76 |
||
|
10
|
10
8EX-23754-00-00 Collar, 1AP |
8EX-23754-00-00 |
from US $11.76 |
||
|
11
|
11
90105-10070-00 Bolt, FlangeAP |
90105-10070-00 |
from US $7.65 |
||
|
12
|
12
8FM-F3711-00-00
Ski 1
AP |
8FM-F3711-00-00 |
— | ||
|
13
|
13
8DM-F3712-00-00 Reinforcement, HeadAP |
8DM-F3712-00-00 |
from US $27.61 |
||
| replacement | |||||
|
13
|
13
8DM-23712-00-BK Reinforcement, HeadAP |
8DM-23712-00-BK |
US $25.99 |
||
|
14
|
14
8EX-23754-00-00 Collar, 1AP |
8EX-23754-00-00 |
from US $11.76 |
||
|
15
|
15
8EN-F3731-00-00 Runner 1AP |
8EN-F3731-00-00 |
US $179.61 |
||
| replacement | |||||
|
15
|
15
SMA-F3731-EN-00 Ski Runner KitAP |
SMA-F3731-EN-00 |
US $155.78 |
||
|
16
|
16
8EK-F3751-00-00 Bush, Ski 1AP |
8EK-F3751-00-00 |
from US $4.68 |
||
| replacements | |||||
|
16
|
16
999-99999-99-00
Not Available
AP |
999-99999-99-00 |
— | ||
|
16
|
16
8EK-23751-00-00 Bush, Ski 1AP |
8EK-23751-00-00 |
from US $4.68 |
||
|
17
|
17
9702M-08055-00 BoltAP |
9702M-08055-00 |
from US $4.68 |
||
| replacement | |||||
|
17
|
17
97017-08055-00 BoltAP |
97017-08055-00 |
from US $4.68 |
||
|
18
|
18
9702M-08100-00 BoltAP |
9702M-08100-00 |
from US $2.13 |
||
| replacement | |||||
|
18
|
18
970-27081-00-00 Bolt, HexagonAP |
970-27081-00-00 |
from US $2.13 |
||
|
19
|
19
90201-08784-00 Washer, PlateAP |
90201-08784-00 |
from US $1.70 |
||
|
20
|
20
90201-086P8-00 Washer, Plate(3Xp)AP |
90201-086P8-00 |
from US $1.70 |
||
|
21
|
21
9570M-08300-00 Nut, NylonAP |
9570M-08300-00 |
from US $3.21 |
||
| replacement | |||||
|
21
|
21
957-17083-00-00 Nut, FlangeAP |
957-17083-00-00 |
from US $3.26 |
||
|
22
|
22
90105-10106-00 Bolt, FlangeAP |
90105-10106-00 |
from US $7.79 |
||
| replacement | |||||
|
22
|
22
901-05104-10-00 Bolt, FlangeAP |
901-05104-10-00 |
from US $7.79 |
||
|
23
|
23
90387-10029-00 CollarAP |
90387-10029-00 |
from US $4.53 |
||
