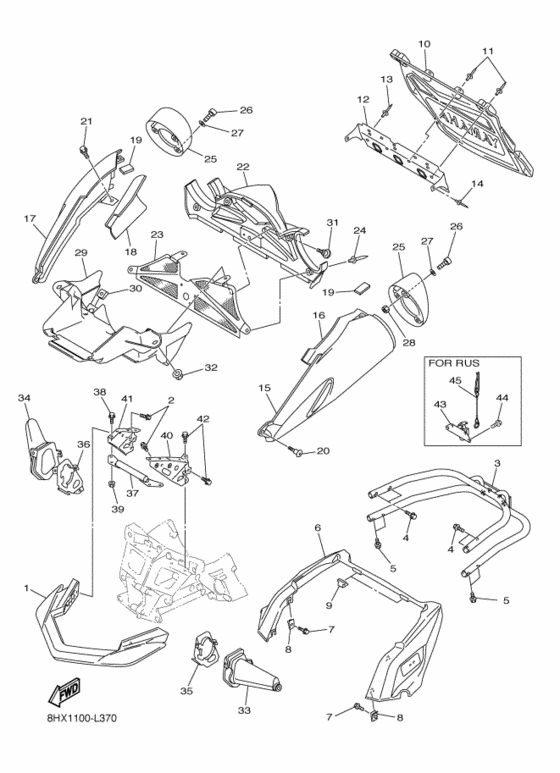

Bumper Diagram Yamaha RS10/RS90/RST90/RSG90 RS Venture GT
- Model code
- 8HX2
- Engine Capacity
- 1000
- Year
- 2012
- Sales region
- Europe (010)
- Colour
- Deep Red Metallic K
- Color Variant
- A
- Model
- RS Venture GT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8FA-77511-01-00 Bumper, Front 1 |
8FA-77511-01-00 |
from US $126 |
||
|
2
|
2
95812-08016-00 Bolt, Flange |
95812-08016-00 |
from US $1.07 |
||
| replacements | |||||
|
2
|
2
901-0508X-15-00
Blt,hex,1/4-20X5/8
|
901-0508X-15-00 |
— | ||
|
2
|
2
958-17080-16-00 Bolt, Flange |
958-17080-16-00 |
from US $1.07 |
||
|
3
|
3
8ET-77541-01-00 Bumper, Rear 1 |
8ET-77541-01-00 |
from US $163.03 |
||
|
4
|
4
95822-08020-00 Bolt, Flange |
95822-08020-00 |
from US $1.07 |
||
| replacement | |||||
|
4
|
4
958-17080-20-00 Bolt, Flange |
958-17080-20-00 |
from US $0.85 |
||
|
5
|
5
95822-08016-00 Bolt, Flange |
95822-08016-00 |
from US $1.07 |
||
| replacements | |||||
|
5
|
5
95814-08016-00 Bolt, Flange |
95814-08016-00 |
from US $1.21 |
||
|
5
|
5
901-0508X-15-00
Blt,hex,1/4-20X5/8
|
901-0508X-15-00 |
— | ||
|
5
|
5
958-17080-16-00 Bolt, Flange |
958-17080-16-00 |
from US $1.07 |
||
|
6
|
6
8FA-77542-00-00 Bumper, Rear 2 |
8FA-77542-00-00 |
from US $78.20 |
||
|
7
|
7
95802-06016-00 Bolt, Flange |
95802-06016-00 |
US $1.07 |
||
| replacement | |||||
|
7
|
7
95817-06016-00 Bolt, Flange |
95817-06016-00 |
from US $1.07 |
||
|
8
|
8
901-83060-53-00
Nut, Spring
|
901-83060-53-00 |
— | ||
| replacement | |||||
|
8
|
8
90183-06069-00 Nut, Spring |
90183-06069-00 |
from US $3.54 |
||
|
9
|
9
8HV-7717H-00-00 Tape 4 |
8HV-7717H-00-00 |
US $2.05 |
||
|
10
|
10
8GW-77595-00-00 Flap |
8GW-77595-00-00 |
from US $57.51 |
||
|
11
|
11
90267-47187-00 Rivet, Blind (4.7X16.4 Black) |
90267-47187-00 |
from US $1.28 |
||
|
12
|
12
8GW-77596-01-00 Stopper, Flap |
8GW-77596-01-00 |
from US $70.90 |
||
|
13
|
13
90267-48095-00 Rivet, Blind (4.8X12.6 Silver) |
90267-48095-00 |
from US $1.98 |
||
|
14
|
14
90267-47195-00 Rivet, Blind(4.7X16.4 Yellow) |
90267-47195-00 |
from US $1.98 |
||
|
15
|
15
8FP-77551-01-P0 Protector 1UR FOR DRMK |
8FP-77551-01-P0 |
from US $87.73 |
||
|
16
|
16
8HV-77261-00-00 Lining, Shroud 1 |
8HV-77261-00-00 |
US $30.56 |
||
|
17
|
17
8FP-77552-01-P0 Protector 2UR FOR DRMK |
8FP-77552-01-P0 |
from US $87.73 |
||
|
18
|
18
8HV-77262-00-00 Lining, Shroud 2 |
8HV-77262-00-00 |
US $27.99 |
||
|
19
|
19
8HV-77263-00-00 Lining, Shroud 3 |
8HV-77263-00-00 |
US $4.63 |
||
|
20
|
20
90154-06009-00 Screw, Binding |
90154-06009-00 |
from US $2.69 |
||
|
21
|
21
90109-06220-00 Bolt |
90109-06220-00 |
from US $1.84 |
||
|
22
|
22
8FP-84516-01-00 Cover, Taillight |
8FP-84516-01-00 |
from US $36.47 |
||
|
23
|
23
8FP-77441-00-00 Louver 1 |
8FP-77441-00-00 |
from US $63.55 |
||
|
24
|
24
90267-47187-00 Rivet, Blind (4.7X16.4 Black) |
90267-47187-00 |
from US $1.28 |
||
|
25
|
25
8FP-77517-00-00 Cap |
8FP-77517-00-00 |
from US $74.05 |
||
|
26
|
26
913-14060-20-00 Bolt |
913-14060-20-00 |
from US $1.07 |
||
|
27
|
27
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.07 |
||
|
28
|
28
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
|
29
|
29
8FP-2117E-01-00 Bracket, Taillight |
8FP-2117E-01-00 |
from US $16.01 |
||
|
30
|
30
901-83060-53-00
Nut, Spring
|
901-83060-53-00 |
— | ||
| replacement | |||||
|
30
|
30
90183-06069-00 Nut, Spring |
90183-06069-00 |
from US $3.54 |
||
|
31
|
31
90109-06220-00 Bolt |
90109-06220-00 |
from US $1.84 |
||
|
32
|
32
95602-06200-00 Nut, U Flange |
95602-06200-00 |
from US $1.56 |
||
| replacement | |||||
|
32
|
32
95604-06200-00 Nut, U Flange |
95604-06200-00 |
from US $1.56 |
||
|
33
|
33
8FU-2198F-01-00 Cover 1 |
8FU-2198F-01-00 |
from US $17.71 |
||
|
34
|
34
8FU-2198J-01-00 Cover 3 |
8FU-2198J-01-00 |
from US $17.71 |
||
|
35
|
35
8FU-2195E-01-00 Plate, Steering Bracket 1 |
8FU-2195E-01-00 |
from US $8.36 |
||
|
36
|
36
8FU-2195F-01-00 Plate, Steering Bracket 2 |
8FU-2195F-01-00 |
from US $8.36 |
||
|
37
|
37
8FP-21979-00-00 Bracket, Front Hood |
8FP-21979-00-00 |
from US $38.96 |
||
|
38
|
38
95822-06014-00 Bolt, Flange |
95822-06014-00 |
from US $1.07 |
||
| replacement | |||||
|
38
|
38
95817-06014-00 Bolt, Flange |
95817-06014-00 |
from US $1.07 |
||
|
39
|
39
957-02065-00-00
Nut, Flange
|
957-02065-00-00 |
— | ||
| replacement | |||||
|
39
|
39
95780-06500-00 Nut, Flange |
95780-06500-00 |
from US $1.13 |
||
|
40
|
40
8FA-21949-00-00 Bracket, Front |
8FA-21949-00-00 |
from US $17.99 |
||
|
41
|
41
8FA-21959-00-00 Bracket, Front Bumper |
8FA-21959-00-00 |
from US $17.99 |
||
|
42
|
42
95822-08016-00 Bolt, Flange |
95822-08016-00 |
from US $1.07 |
||
| replacements | |||||
|
42
|
42
95814-08016-00 Bolt, Flange |
95814-08016-00 |
from US $1.21 |
||
|
42
|
42
901-0508X-15-00
Blt,hex,1/4-20X5/8
|
901-0508X-15-00 |
— | ||
|
42
|
42
958-17080-16-00 Bolt, Flange |
958-17080-16-00 |
from US $1.07 |
||
|
43
|
43
86D-77591-00-00 Bracket, Hitch 1FOR RUS |
86D-77591-00-00 |
from US $73.92 |
||
|
44
|
44
95827-08020-00 Bolt, FlangeFOR RUS |
95827-08020-00 |
from US $0.85 |
||
| replacement | |||||
|
44
|
44
958-17080-20-00 Bolt, FlangeFOR RUS |
958-17080-20-00 |
from US $0.85 |
||
|
45
|
45
8U1-77157-00-00 Pin, HingeFOR RUS |
8U1-77157-00-00 |
from US $12.61 |
||
