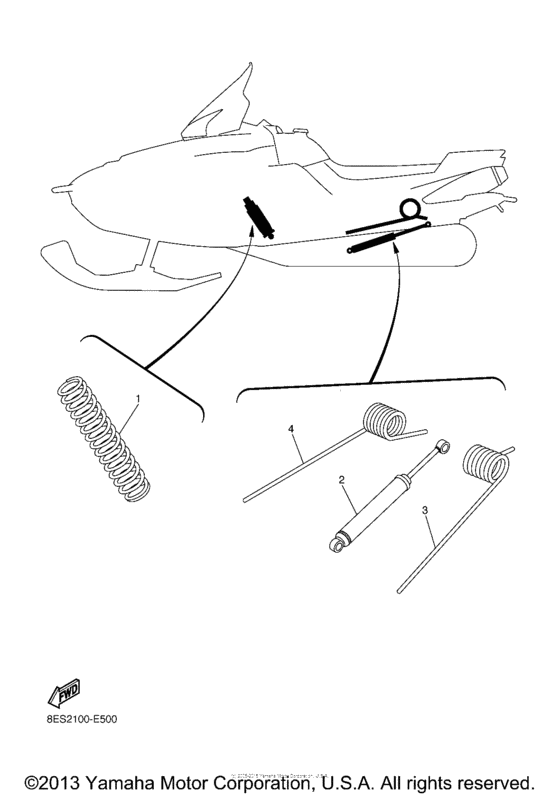

Alternate rear suspension Diagram Yamaha RS10/RS90/RST90/RSG90 RS Vector
- Model code
- 8ES2
- Engine Capacity
- 1000
- Year
- 2006
- Sales region
- USA
- Power
- 120 hp
- Model
- RS Vector
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8ES-47336-00-00 Spring .,2 (K=20.594N/mm)., 2 K=20.594N/MM AP |
8ES-47336-00-00 |
from US $112.95 |
||
|
1
|
1
8ES-47336-10-00 Spring, 2 (K=15.7N/mm)K=15.7N/MM AP |
8ES-47336-10-00 |
from US $73.22 |
||
|
1
|
1
8GF-47336-00-00 Spring, 2 (K=24.5N/mm)K=24.5N/MM AP |
8GF-47336-00-00 |
from US $79.17 |
||
|
1
|
1
8GF-47336-10-00 Spring, 2 (K=29.4N/mm)K=29.4N/MM AP |
8GF-47336-10-00 |
from US $79.17 |
||
|
2
|
2
8ES-47480-20-00 Shock AbsorberAP |
8ES-47480-20-00 |
from US $371.01 |
||
|
3
|
3
8ES-47473-00-00 Spring, Rear 1 (K=1600Nmm/deg)K=1600NMM/DEG AP |
8ES-47473-00-00 |
from US $169.94 |
||
| replacement | |||||
|
3
|
3
8GF-47473-00-00 Spring, Rear 1 (K=1900Nmm/deg)K=1600NMM/DEG AP |
8GF-47473-00-00 |
US $226.29 |
||
|
3
|
3
8GF-47473-10-00
Spring, Rear 1 (K=2200Nmm/deg)
K=2200NMM/DEG AP |
8GF-47473-10-00 |
— | ||
|
3
|
3
8ES-47473-10-00 Spring, Rear 1 (K=1900Nmm/deg)K=1900NMM/DEG AP |
8ES-47473-10-00 |
from US $127.50 |
||
| replacement | |||||
|
3
|
3
8GF-47473-00-00 Spring, Rear 1 (K=1900Nmm/deg)K=1900NMM/DEG AP |
8GF-47473-00-00 |
US $226.29 |
||
|
4
|
4
8ES-47474-10-00 Spring, Rear 2 (K=1900Nmm/deg)K=1900NMM/DEG AP |
8ES-47474-10-00 |
from US $127.50 |
||
| replacement | |||||
|
4
|
4
8GF-47474-00-00
Spring, Rear 2 (K=1900Nmm/deg)
K=1900NMM/DEG AP |
8GF-47474-00-00 |
— | ||
|
4
|
4
8ES-47474-00-00 Spring, Rear 2 (K=1600Nmm/deg)K=1600NMM/DEG AP |
8ES-47474-00-00 |
from US $125.80 |
||
|
4
|
4
8GF-47474-10-00 Spring, Rear 2 (K=2200Nmm/deg)K=2200NMM/DEG AP |
8GF-47474-10-00 |
from US $169.94 |
||
