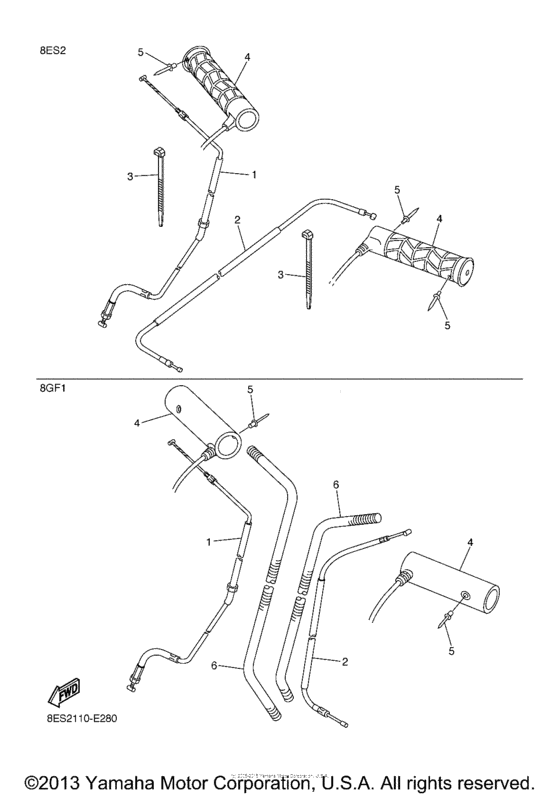

Control cable Diagram Yamaha RS10/RS90/RST90/RSG90 RS Vector
- Model code
- 8ES2
- Engine Capacity
- 1000
- Year
- 2006
- Sales region
- USA
- Power
- 120 hp
- Model
- RS Vector
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8ES-26311-00-00 Cable, Throttle 1L 8ES2 |
8ES-26311-00-00 |
from US $31.31 |
||
|
1
|
1
8GF-26311-00-00
Cable, Throttle 1
NL 8GF1 |
8GF-26311-00-00 |
— | ||
|
2
|
2
8ES-26330-00-00 Starter Cable Assy8ES2 |
8ES-26330-00-00 |
from US $16.86 |
||
|
2
|
2
8GF-26330-00-00 Starter Cable AssyNL 8GF1 |
8GF-26330-00-00 |
from US $18.28 |
||
|
3
|
3
904-64130-73-00
Clamp
|
904-64130-73-00 |
— | ||
| replacement | |||||
|
3
|
3
904-64151-95-00 Clamp |
904-64151-95-00 |
from US $1.35 |
||
|
4
|
4
8DM-26240-01-00 Grip Assy8ES2 |
8DM-26240-01-00 |
from US $78.47 |
||
| replacement | |||||
|
4
|
4
8DM-26240-02-00 Grip Assy8ES2 |
8DM-26240-02-00 |
from US $78.47 |
||
|
4
|
4
8FP-26240-00-00 Grip AssyNL 8GF1 |
8FP-26240-00-00 |
from US $89.49 |
||
|
5
|
5
90267-48014-00 Rivet, Blind4.8X15.1 BLACK |
90267-48014-00 |
from US $1.70 |
||
|
6
|
6
8FP-82351-00-00 Tube, Cord |
8FP-82351-00-00 |
from US $7.23 |
||
