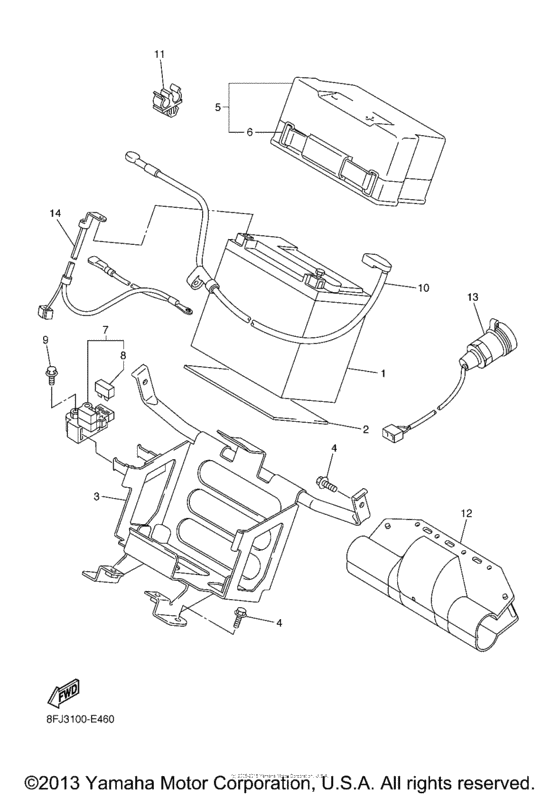

Electrical (2) Diagram Yamaha RS10/RS90/RST90/RSG90 RS Vector
- Model code
- 8ES2
- Engine Capacity
- 1000
- Year
- 2006
- Sales region
- USA
- Power
- 120 hp
- Model
- RS Vector
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
BTY-YTX20-LB-S0
Battery Assy (Yuasa Ytx20L-Bs)
|
BTY-YTX20-LB-S0 |
— | ||
| replacement | |||||
|
1
|
1
YTX-20LBS-00-00
Bat Ytx20L-Bs (Ptx20L-Bs) Yu
|
YTX-20LBS-00-00 |
— | ||
|
2
|
2
8FA-82122-00-00 Seat, Battery |
8FA-82122-00-00 |
from US $4.68 |
||
|
3
|
3
8ES-2199G-00-00 Bracket, Battery |
8ES-2199G-00-00 |
from US $82.07 |
||
|
4
|
4
95827-08016-00 Bolt, Flange |
95827-08016-00 |
from US $1.07 |
||
| replacements | |||||
|
4
|
4
901-0508X-15-00
Blt,hex,1/4-20X5/8
|
901-0508X-15-00 |
— | ||
|
4
|
4
958-17080-16-00 Bolt, Flange |
958-17080-16-00 |
from US $1.07 |
||
|
5
|
5
8FA-82129-00-00 Cover, Battery |
8FA-82129-00-00 |
from US $21.68 |
||
|
6
|
6
8DM-82131-10-00 Band, Battery |
8DM-82131-10-00 |
from US $11.76 |
||
|
7
|
7
4DN-81940-12-00 Starter Relay Assy (Rc19-003) |
4DN-81940-12-00 |
from US $58.20 |
||
|
8
|
8
1AE-82151-00-00 Fuse (30A-Bl)30A-BL |
1AE-82151-00-00 |
from US $1.66 |
||
|
9
|
9
95027-06008-00 Bolt, Flange |
95027-06008-00 |
from US $1.43 |
||
|
10
|
10
8FA-82115-00-00 Wire, Plus Lead |
8FA-82115-00-00 |
from US $35.65 |
||
|
11
|
11
90464-08126-00 Clamp |
90464-08126-00 |
from US $1.70 |
||
|
12
|
12
8FP-8252U-00-00 Cover |
8FP-8252U-00-00 |
from US $12.47 |
||
|
13
|
13
8FP-8254B-00-00 Terminal CompAP |
8FP-8254B-00-00 |
from US $59.55 |
||
|
14
|
14
8ES-82116-00-00 Wire, Minus Lead |
8ES-82116-00-00 |
from US $29.04 |
||
