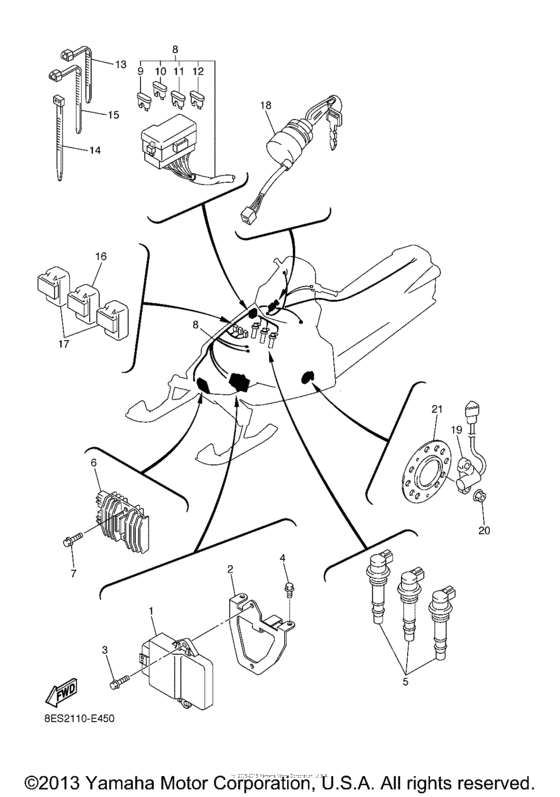

Electrical (1) Diagram Yamaha RS10/RS90/RST90/RSG90 RS Vector
- Model code
- 8ES2
- Engine Capacity
- 1000
- Year
- 2006
- Sales region
- USA
- Power
- 120 hp
- Model
- RS Vector
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8ET-82305-10-00
Ignitor Unit Assy
|
8ET-82305-10-00 |
— | ||
|
2
|
2
8ES-85991-00-00 Bracket, Unit |
8ES-85991-00-00 |
from US $6.80 |
||
|
3
|
3
95827-06016-00 Bolt, Flange |
95827-06016-00 |
from US $1.07 |
||
| replacement | |||||
|
3
|
3
95817-06016-00 Bolt, Flange |
95817-06016-00 |
from US $1.07 |
||
|
4
|
4
958-27060-10-00
Bolt, Flange(Jn5)
|
958-27060-10-00 |
— | ||
| replacement | |||||
|
4
|
4
95817-06010-00 Bolt, Flange |
95817-06010-00 |
from US $1.07 |
||
|
5
|
5
8ES-82310-00-00 Ignition Coil Assy |
8ES-82310-00-00 |
from US $106.66 |
||
|
6
|
6
5JW-81960-00-00 Rectifier & Regulator Assy |
5JW-81960-00-00 |
from US $239.04 |
||
|
7
|
7
95807-06025-00 Bolt, Flange |
95807-06025-00 |
from US $1.07 |
||
| replacements | |||||
|
7
|
7
958-17060-25-00
Bolt, Flange
|
958-17060-25-00 |
— | ||
|
7
|
7
95822-06025-00 Bolt, Flange |
95822-06025-00 |
from US $0.99 |
||
|
8
|
8
8GF-82590-00-00 Wire Harness AssyNL 8GF1 |
8GF-82590-00-00 |
US $565.52 |
||
|
8
|
8
8ES-82590-10-00 Wire Harness Assy8ES2 |
8ES-82590-10-00 |
from US $235.22 |
||
|
9
|
9
5JJ-82151-20-00 Fuse (20A-Bl)20A-BL |
5JJ-82151-20-00 |
from US $3.54 |
||
|
10
|
10
5JJ-82151-30-00
Fuse (10A-Bl)
10A |
5JJ-82151-30-00 |
— | ||
| replacement | |||||
|
10
|
10
67F-82151-40-00 Fuse (10A)10A |
67F-82151-40-00 |
from US $1.98 |
||
|
11
|
11
5JJ-82151-10-00 Fuse (15A-Bl)15A |
5JJ-82151-10-00 |
US $2.83 |
||
| replacement | |||||
|
11
|
11
67F-82151-50-00 Fuse (15A)15A |
67F-82151-50-00 |
from US $1.98 |
||
|
12
|
12
5JJ-82151-50-00 Fuse (3A)3A |
5JJ-82151-50-00 |
from US $3.54 |
||
| replacement | |||||
|
12
|
12
67F-82151-30-00 Fuse (3A)3A |
67F-82151-30-00 |
from US $2.41 |
||
|
13
|
13
904-64151-95-00 Clamp |
904-64151-95-00 |
from US $1.35 |
||
|
14
|
14
904-64130-73-00
Clamp
|
904-64130-73-00 |
— | ||
| replacement | |||||
|
14
|
14
904-64151-95-00 Clamp |
904-64151-95-00 |
from US $1.35 |
||
|
15
|
15
90464-13077-00 Clamp |
90464-13077-00 |
from US $1.70 |
||
| replacement | |||||
|
15
|
15
904-64151-95-00 Clamp |
904-64151-95-00 |
from US $1.35 |
||
|
16
|
16
5DM-81950-00-00
Relay Assy (G8Hn-1C4T-Dj-Y52)
|
5DM-81950-00-00 |
— | ||
| replacement | |||||
|
16
|
16
5DM-81950-01-00 RELAY ASSY (G8HN-1C4T-DJ-Y52) |
5DM-81950-01-00 |
from US $20.12 |
||
|
17
|
17
8DM-81950-10-00 Relay Assy (8Dm-10)8DM-11 |
8DM-81950-10-00 |
from US $14.88 |
||
| replacement | |||||
|
17
|
17
8DM-81950-11-00 Relay Assy (8Dm-11)8DM-11 |
8DM-81950-11-00 |
from US $11.26 |
||
|
18
|
18
8ES-82510-00-00 Main Switch Assy |
8ES-82510-00-00 |
from US $79.96 |
||
| replacement | |||||
|
18
|
18
8FJ-82510-00-00 Main Switch Assy |
8FJ-82510-00-00 |
from US $87.87 |
||
|
19
|
19
8FP-83755-00-00 Sensor, Speed |
8FP-83755-00-00 |
from US $103.21 |
||
| replacement | |||||
|
19
|
19
8FP-83755-01-00 Sensor, Speed |
8FP-83755-01-00 |
from US $103.21 |
||
|
20
|
20
95707-08300-00 Nut, Nylon |
95707-08300-00 |
from US $3.02 |
||
| replacement | |||||
|
20
|
20
957-17083-00-00 Nut, Flange |
957-17083-00-00 |
from US $3.26 |
||
|
21
|
21
8EK-47551-00-00 Housing, Front Axle |
8EK-47551-00-00 |
from US $4.53 |
||
