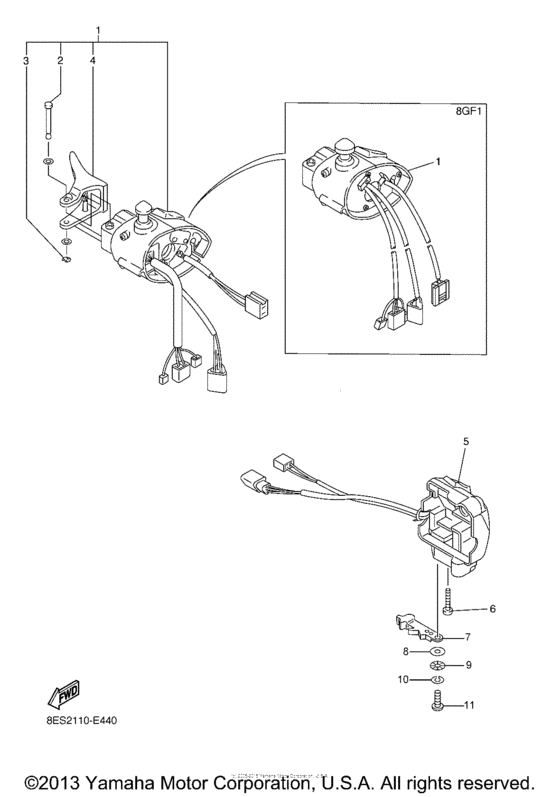

Handle switch & lever Diagram Yamaha RS10/RS90/RST90/RSG90 RS Vector
- Model code
- 8ES2
- Engine Capacity
- 1000
- Year
- 2006
- Sales region
- USA
- Power
- 120 hp
- Model
- RS Vector
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8ES-82720-02-00 Lever Holder Assy (Right)8ES2 |
8ES-82720-02-00 |
from US $194.81 |
||
|
1
|
1
8FP-82720-00-00 Lever Holder Assy (Right)NL 8GF1 |
8FP-82720-00-00 |
from US $194.81 |
||
| replacement | |||||
|
1
|
1
8FP-82720-02-00 Lever Holder Assy (Right)NL 8GF1 |
8FP-82720-02-00 |
from US $194.81 |
||
|
2
|
2
8R6-8399F-00-00 Shaft |
8R6-8399F-00-00 |
from US $3.97 |
||
|
3
|
3
99001-04600-00 Circlip |
99001-04600-00 |
from US $1.56 |
||
| replacement | |||||
|
3
|
3
99080-04600-00 Circlip |
99080-04600-00 |
from US $1.34 |
||
|
4
|
4
8FA-82970-01-00 Thumb Warmer Assy8ES2 |
8FA-82970-01-00 |
from US $80.55 |
||
|
4
|
4
8FP-82970-00-00 Thumb Warmer AssyNL 8GF1 |
8FP-82970-00-00 |
from US $80.55 |
||
|
5
|
5
8FA-83973-01-00 Switch, Handle 3L 8ES2 |
8FA-83973-01-00 |
from US $138.02 |
||
|
5
|
5
8GF-83973-00-00 Switch, Handle 3NL 8GF1 |
8GF-83973-00-00 |
from US $143.69 |
||
|
6
|
6
98507-05016-00 Screw, Pan Head |
98507-05016-00 |
from US $1.07 |
||
|
7
|
7
5GH-83941-00-00 Lever, Starter |
5GH-83941-00-00 |
from US $6.30 |
||
|
8
|
8
1UY-83909-00-00 Washer, Special |
1UY-83909-00-00 |
from US $2.27 |
||
|
9
|
9
3L4-83943-00-00 Washer, Starter |
3L4-83943-00-00 |
from US $2.69 |
||
|
10
|
10
92907-05100-00 Washer, Spring |
92907-05100-00 |
from US $1.56 |
||
|
11
|
11
98517-05012-00 Screw, Pan Head |
98517-05012-00 |
from US $1.21 |
||
