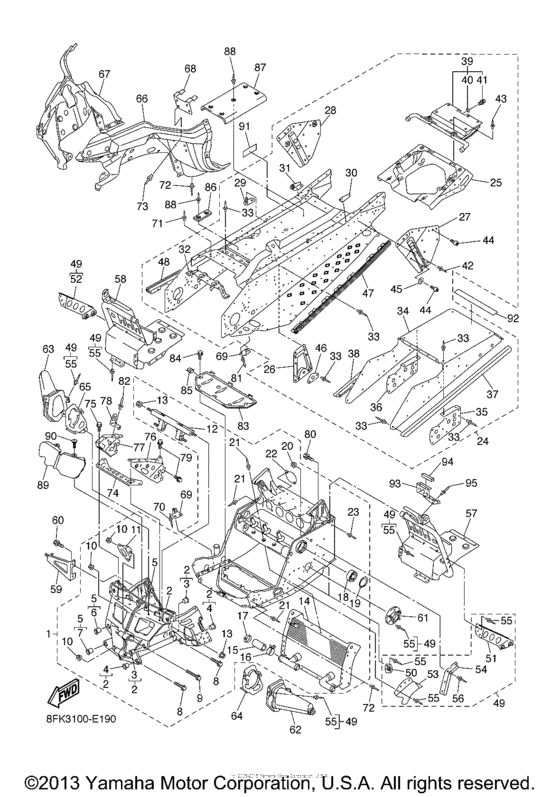

Frame (Ml) Diagram Yamaha RS10/RS90/RST90/RSG90 RS Vector Mountain
- Model code
- 8FK3
- Engine Capacity
- 1000
- Year
- 2006
- Sales region
- USA
- Power
- 120 hp
- Model
- RS Vector Mountain
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8FK-21940-00-00
Front Frame Comp
|
8FK-21940-00-00 |
— | ||
| replacement | |||||
|
1
|
1
8FK-21940-01-00
Front Frame Comp
|
8FK-21940-01-00 |
— | ||
|
2
|
2
8FA-W2197-11-00 Bulkhead |
8FA-W2197-11-00 |
from US $495.13 |
||
| replacement | |||||
|
2
|
2
8FA-W2197-13-00 Bulkhead |
8FA-W2197-13-00 |
from US $495.13 |
||
|
3
|
3
90381-15001-00 Bush, Solid |
90381-15001-00 |
from US $2.55 |
||
|
4
|
4
90381-16001-00 Bush, Solid |
90381-16001-00 |
from US $4.25 |
||
| replacement | |||||
|
4
|
4
903-81160-04-00 Bush, Solid |
903-81160-04-00 |
from US $4.11 |
||
|
5
|
5
8FA-W2198-11-00 Bulkhead 2 |
8FA-W2198-11-00 |
from US $495.13 |
||
| replacements | |||||
|
5
|
5
8FA-W2198-15-00 Bulkhead 2 |
8FA-W2198-15-00 |
from US $495.13 |
||
|
5
|
5
8FA-W2198-20-00 Bulkhead 2 |
8FA-W2198-20-00 |
US $509.63 |
||
|
6
|
6
90381-15001-00 Bush, Solid |
90381-15001-00 |
from US $2.55 |
||
|
7
|
7
90381-16001-00 Bush, Solid |
90381-16001-00 |
from US $4.25 |
||
| replacement | |||||
|
7
|
7
903-81160-04-00 Bush, Solid |
903-81160-04-00 |
from US $4.11 |
||
|
8
|
8
95827-08060-00 Bolt, Flange |
95827-08060-00 |
from US $1.07 |
||
| replacement | |||||
|
8
|
8
958-17080-60-00 Bolt, Flange |
958-17080-60-00 |
from US $1.07 |
||
|
9
|
9
95827-08065-00 Bolt, Flange |
95827-08065-00 |
from US $5.10 |
||
| replacements | |||||
|
9
|
9
90105-084A1-00 Bolt, Flange |
90105-084A1-00 |
from US $5.10 |
||
|
9
|
9
90105-08721-00 Bolt, Washer Based(4Jg) |
90105-08721-00 |
from US $4.79 |
||
|
10
|
10
95607-08200-00 Nut, Self-Locking |
95607-08200-00 |
from US $2.13 |
||
| replacement | |||||
|
10
|
10
901-85081-69-00 Nut, Self-Locking |
901-85081-69-00 |
from US $2.13 |
||
|
11
|
11
8FA-2128A-00-00 Bracket, Regulator |
8FA-2128A-00-00 |
from US $6.23 |
||
| replacement | |||||
|
11
|
11
8FA-2128A-01-00 Bracket, Regulator |
8FA-2128A-01-00 |
from US $6.23 |
||
|
12
|
12
8FG-21947-00-00 Bracket, Steering 1 |
8FG-21947-00-00 |
from US $146.45 |
||
|
13
|
13
956-07102-00-00 Nut, U Flange |
956-07102-00-00 |
from US $5.67 |
||
|
14
|
14
8EP-12440-00-00 Heat Exchanger Assy |
8EP-12440-00-00 |
from US $333.12 |
||
|
15
|
15
8FA-12551-00-00 Hose 7 |
8FA-12551-00-00 |
from US $3.97 |
||
|
16
|
16
90467-28046-00 Clip (8M6) |
90467-28046-00 |
from US $3.54 |
||
|
17
|
17
904-50350-01-00 Hose Clamp Assy |
904-50350-01-00 |
from US $5.24 |
||
|
18
|
18
93306-20650-00 Bearing |
93306-20650-00 |
from US $44.21 |
||
|
19
|
19
99009-62500-00 Circlip |
99009-62500-00 |
from US $1.98 |
||
|
20
|
20
95607-08200-00 Nut, Self-Locking |
95607-08200-00 |
from US $2.13 |
||
| replacement | |||||
|
20
|
20
901-85081-69-00 Nut, Self-Locking |
901-85081-69-00 |
from US $2.13 |
||
|
21
|
21
90267-47195-00 Rivet, Blind(4.7X16.4 Yellow)4.7X16.4 YELLOW |
90267-47195-00 |
from US $1.98 |
||
|
22
|
22
8ES-2131D-00-00 Plate, Cover |
8ES-2131D-00-00 |
from US $3.26 |
||
|
23
|
23
90267-48016-00 Rivet, Blind (4.8X16.4 Yellow4.8X16.4 YELLOW |
90267-48016-00 |
from US $1.84 |
||
|
24
|
24
8FK-21950-10-00 Rear Frame Comp |
8FK-21950-10-00 |
US $2,540 |
||
|
25
|
25
8FA-W2199-10-00 Reineforcement, Frame Rear 1 |
8FA-W2199-10-00 |
from US $422.84 |
||
|
26
|
26
8FK-21943-01-00 Bracket, Main Track 1 |
8FK-21943-01-00 |
from US $11.27 |
||
|
27
|
27
8FK-21944-00-00 Bracket, Rr.track Suspention 1 |
8FK-21944-00-00 |
from US $64.66 |
||
|
28
|
28
8FK-21954-00-00 Bracket, Rr.track Suspention 2 |
8FK-21954-00-00 |
from US $64.66 |
||
|
29
|
29
8CR-2194N-00-00 Bracket, Fuel Tank 1 |
8CR-2194N-00-00 |
from US $2.41 |
||
|
30
|
30
8FA-2194X-00-00 Bracket 1 |
8FA-2194X-00-00 |
from US $1.98 |
||
|
31
|
31
8FA-2195X-00-00 Bracket 2 |
8FA-2195X-00-00 |
from US $1.98 |
||
|
32
|
32
8ES-2194H-00-00 Protector, Muffler |
8ES-2194H-00-00 |
from US $45.59 |
||
|
33
|
33
90267-47195-00 Rivet, Blind(4.7X16.4 Yellow)4.7X16.4 YELLOW QTY:128 |
90267-47195-00 |
from US $1.98 |
||
|
34
|
34
8FW-21916-00-00 Panel, Sub Frame 5 |
8FW-21916-00-00 |
from US $194.81 |
||
|
35
|
35
8EP-21963-00-00 Patch 3 |
8EP-21963-00-00 |
from US $11.62 |
||
|
36
|
36
8EP-21964-00-00 Patch 4 |
8EP-21964-00-00 |
from US $11.62 |
||
|
37
|
37
8FK-2111J-00-00 Member, Side 1 |
8FK-2111J-00-00 |
from US $83.03 |
||
|
38
|
38
8FK-2111K-00-00 Member, Side 2 |
8FK-2111K-00-00 |
from US $83.03 |
||
|
39
|
39
8FW-1241A-00-00 Heat Exchanger Assy 4 |
8FW-1241A-00-00 |
US $687.15 |
||
|
40
|
40
90210-06006-00 Washer, Seal |
90210-06006-00 |
from US $1.98 |
||
|
41
|
41
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.07 |
||
|
42
|
42
90267-47197-00 Rivet, Blind (4.7X19.5 Silver)4.7X19.5 SILVER |
90267-47197-00 |
from US $1.98 |
||
|
43
|
43
90267-48095-00 Rivet, Blind (4.8X12.6 Silver)4.8X12.6 SILVER |
90267-48095-00 |
from US $1.98 |
||
|
44
|
44
92017-10020-00 Bolt, Button Head |
92017-10020-00 |
from US $2.13 |
||
|
45
|
45
90201-104A7-00 Washer, Plate |
90201-104A7-00 |
from US $3.74 |
||
| replacement | |||||
|
45
|
45
90201-105H3-00 Washer, Plate |
90201-105H3-00 |
from US $4.11 |
||
|
46
|
46
8FK-21953-00-00 Bracket, Main Track 2 |
8FK-21953-00-00 |
from US $7.23 |
||
|
47
|
47
8FU-21926-00-00 Reinforcement, Footrest 1 |
8FU-21926-00-00 |
from US $154.74 |
||
|
48
|
48
8FU-21936-00-00 Reinforcement, Footrest 2 |
8FU-21936-00-00 |
from US $154.74 |
||
|
49
|
49
8FK-W2195-00-00 Frame Connection Kit |
8FK-W2195-00-00 |
from US $114.80 |
||
|
50
|
50
8CR-21939-01-00 Bracket, Chain Housing |
8CR-21939-01-00 |
from US $4.39 |
||
|
51
|
51
8FU-2196M-00-00 Bracket, 5 |
8FU-2196M-00-00 |
from US $10.48 |
||
|
52
|
52
8FU-2197M-00-00 Bracket, 6 |
8FU-2197M-00-00 |
from US $10.48 |
||
|
53
|
53
8FU-2198G-00-00 Cover 2 |
8FU-2198G-00-00 |
from US $14.31 |
||
|
54
|
54
8FA-21999-00-00 Clamp, Wire Harness |
8FA-21999-00-00 |
from US $3.40 |
||
|
55
|
55
90267-47195-00 Rivet, Blind(4.7X16.4 Yellow)4.7X16.4 YELLOW |
90267-47195-00 |
from US $1.98 |
||
|
56
|
56
90267-48018-00 Rivet, Blind (4.8X18.6 Black)4.8X18.6 BLACK |
90267-48018-00 |
from US $1.28 |
||
|
57
|
57
8FU-21960-00-00 Footrest Comp. 1 |
8FU-21960-00-00 |
from US $151.98 |
||
| replacement | |||||
|
57
|
57
8FU-21960-01-00 Footrest Comp. 1 |
8FU-21960-01-00 |
from US $151.98 |
||
|
58
|
58
8FU-21970-00-00 Footrest Comp. 2 |
8FU-21970-00-00 |
from US $151.98 |
||
| replacement | |||||
|
58
|
58
8FU-21970-01-00 Footrest Comp. 2 |
8FU-21970-01-00 |
from US $151.98 |
||
|
59
|
59
8ES-2193E-00-00 Bracket, Oil Tank 1 |
8ES-2193E-00-00 |
from US $11.33 |
||
|
60
|
60
95827-08014-00 Bolt, Flange |
95827-08014-00 |
from US $1.56 |
||
| replacement | |||||
|
60
|
60
958-17080-14-00 Bolt, Flange |
958-17080-14-00 |
from US $1.34 |
||
|
61
|
61
8EK-21920-01-00 Housing, Reinf Sub-Assy (L.h) |
8EK-21920-01-00 |
from US $10.48 |
||
|
62
|
62
8FU-2198F-00-00 Cover 1 |
8FU-2198F-00-00 |
from US $17.71 |
||
| replacement | |||||
|
62
|
62
8FU-2198F-01-00 Cover 1 |
8FU-2198F-01-00 |
from US $17.71 |
||
|
63
|
63
8FU-2198J-00-00 Cover 3 |
8FU-2198J-00-00 |
from US $17.71 |
||
| replacement | |||||
|
63
|
63
8FU-2198J-01-00 Cover 3 |
8FU-2198J-01-00 |
from US $17.71 |
||
|
64
|
64
8FU-2195E-01-00 Plate, Steering Bracket 1 |
8FU-2195E-01-00 |
from US $8.36 |
||
|
65
|
65
8FU-2195F-01-00 Plate, Steering Bracket 2 |
8FU-2195F-01-00 |
from US $8.36 |
||
|
66
|
66
8FK-2196A-00-00 Frame Under 1 |
8FK-2196A-00-00 |
US $105.59 |
||
| replacement | |||||
|
66
|
66
8FK-2196A-01-00
Frame Under 1
|
8FK-2196A-01-00 |
— | ||
|
67
|
67
8EP-2196E-00-00 Frame, Under 2 |
8EP-2196E-00-00 |
from US $46.42 |
||
| replacement | |||||
|
67
|
67
8EP-2196E-01-00 Under Frame 2 |
8EP-2196E-01-00 |
from US $35.55 |
||
|
68
|
68
8FA-21972-00-00 Bracket, Guard Fitting |
8FA-21972-00-00 |
from US $4.11 |
||
| replacement | |||||
|
68
|
68
8FA-21972-01-00 Bracket, Guard Fitting |
8FA-21972-01-00 |
from US $4.11 |
||
|
69
|
69
8FA-2196F-00-00 Bracket 3 |
8FA-2196F-00-00 |
from US $2.69 |
||
|
70
|
70
90267-48083-00 Rivet, Blind4.8X15.2 SILVER |
90267-48083-00 |
from US $2.55 |
||
|
71
|
71
90267-48169-00 Rivet, Blind (4.7X16.4 Black)4.7X16.4 BLACK |
90267-48169-00 |
from US $1.35 |
||
| replacement | |||||
|
71
|
71
90267-47186-00 Rivet, Blind (4.7X16.4 Black)4.7X16.4 BLACK |
90267-47186-00 |
from US $1.35 |
||
|
72
|
72
90267-48018-00 Rivet, Blind (4.8X18.6 Black)4.8X18.6 BLACK |
90267-48018-00 |
from US $1.28 |
||
|
73
|
73
90267-47200-00 Rivet, Blind (4.7X19.5 Black)4.7X19.5 BLACK |
90267-47200-00 |
from US $1.98 |
||
|
74
|
74
8FA-77512-00-00 Bumper, Front 2 |
8FA-77512-00-00 |
from US $25.64 |
||
|
75
|
75
958-27060-12-00
Bolt, Flange
|
958-27060-12-00 |
— | ||
| replacement | |||||
|
75
|
75
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.07 |
||
|
76
|
76
8FA-21949-00-00 Bracket, Front |
8FA-21949-00-00 |
from US $17.99 |
||
|
77
|
77
8FA-21959-00-00 Bracket, Front Bumper |
8FA-21959-00-00 |
from US $17.99 |
||
|
78
|
78
8FA-77125-00-00 Stay 1 |
8FA-77125-00-00 |
from US $2.69 |
||
|
79
|
79
95827-08016-00 Bolt, Flange |
95827-08016-00 |
from US $1.07 |
||
| replacements | |||||
|
79
|
79
901-0508X-15-00
Blt,hex,1/4-20X5/8
|
901-0508X-15-00 |
— | ||
|
79
|
79
958-17080-16-00 Bolt, Flange |
958-17080-16-00 |
from US $1.07 |
||
|
80
|
80
95827-08020-00 Bolt, Flange |
95827-08020-00 |
from US $0.85 |
||
| replacement | |||||
|
80
|
80
958-17080-20-00 Bolt, Flange |
958-17080-20-00 |
from US $0.85 |
||
|
81
|
81
90267-48095-00 Rivet, Blind (4.8X12.6 Silver)4.8X12.6 SILVER |
90267-48095-00 |
from US $1.98 |
||
|
82
|
82
90267-47195-00 Rivet, Blind(4.7X16.4 Yellow)4.7X16.4 YELLOW |
90267-47195-00 |
from US $1.98 |
||
|
83
|
83
8FA-2197E-01-00
Protector, Frame Fr
FR |
8FA-2197E-01-00 |
— | ||
|
84
|
84
90109-065F3-00 Bolt |
90109-065F3-00 |
from US $1.84 |
||
|
85
|
85
901-83060-53-00
Nut, Spring
|
901-83060-53-00 |
— | ||
| replacement | |||||
|
85
|
85
90183-06069-00 Nut, Spring |
90183-06069-00 |
from US $3.54 |
||
|
86
|
86
8FA-21998-00-00 Spacer |
8FA-21998-00-00 |
from US $3.12 |
||
|
87
|
87
8FG-23892-00-00 Shield, Heat |
8FG-23892-00-00 |
from US $35.85 |
||
|
88
|
88
90267-48059-00 Rivet, Blind (4.8X12.3)4.8X12.3 |
90267-48059-00 |
from US $1.70 |
||
|
89
|
89
8FP-22865-00-00 Cover, Front |
8FP-22865-00-00 |
from US $11.90 |
||
|
90
|
90
90150-06015-00 Screw, Round Head |
90150-06015-00 |
from US $5.13 |
||
|
91
|
91
8ES-2179D-00-00 Plete, Epa Offroad 2 |
8ES-2179D-00-00 |
US $3.71 |
||
|
92
|
92
88X-77762-10-00 Label, Warning 2 |
88X-77762-10-00 |
from US $20.40 |
||
|
93
|
93
8FA-21973-00-00 Hook |
8FA-21973-00-00 |
from US $8.08 |
||
|
94
|
94
8CR-77319-00-00 Damper 1 |
8CR-77319-00-00 |
from US $0.59 |
||
|
95
|
95
90267-47195-00 Rivet, Blind(4.7X16.4 Yellow)4.7X16.4 YELLOW |
90267-47195-00 |
from US $1.98 |
||
