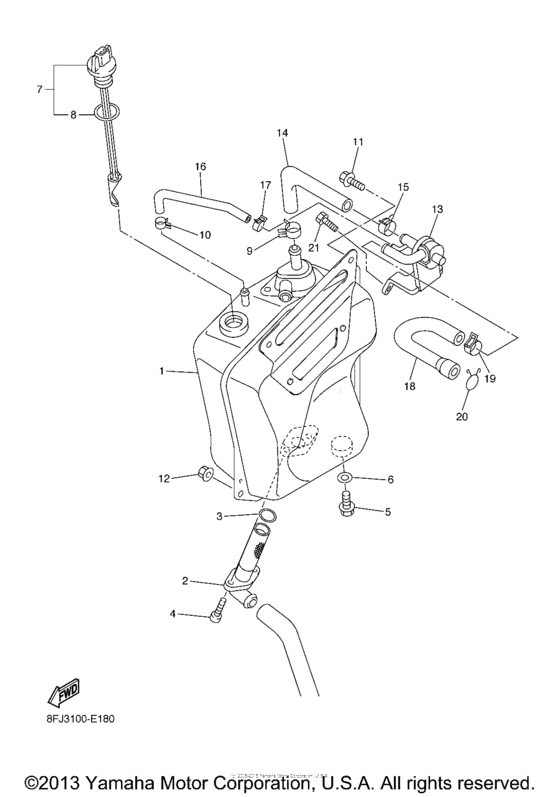

Oil tank Diagram Yamaha RS10/RS90/RST90/RSG90 RS Vector Mountain
- Model code
- 8FK3
- Engine Capacity
- 1000
- Year
- 2006
- Sales region
- USA
- Power
- 120 hp
- Model
- RS Vector Mountain
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8FG-21751-02-00 Tank, Oil |
8FG-21751-02-00 |
from US $280.46 |
||
|
2
|
2
8FG-13406-00-00 Oil Pipe Comp. 2 |
8FG-13406-00-00 |
from US $35.28 |
||
|
3
|
3
93210-19026-00 O-Ring |
93210-19026-00 |
from US $1.84 |
||
|
4
|
4
91317-06016-00 Bolt |
91317-06016-00 |
from US $1.04 |
||
|
5
|
5
95807-08012-00 Bolt, Flange |
95807-08012-00 |
from US $1.07 |
||
| replacement | |||||
|
5
|
5
95817-08012-00 Bolt, Flange |
95817-08012-00 |
from US $1.07 |
||
|
6
|
6
90430-08204-00 Gasket(3Aj) |
90430-08204-00 |
from US $1.34 |
||
|
7
|
7
8FA-85720-01-00 Oil Level Gauge Assy |
8FA-85720-01-00 |
from US $32.59 |
||
|
8
|
8
8FP-85075-00-00 O-Ring |
8FP-85075-00-00 |
from US $4.82 |
||
|
9
|
9
904-68081-04-00 Clip |
904-68081-04-00 |
from US $1.70 |
||
|
10
|
10
90467-12053-00 Clip |
90467-12053-00 |
from US $1.28 |
||
| replacement | |||||
|
10
|
10
90467-11044-00 Clip (7K7) |
90467-11044-00 |
from US $1.28 |
||
|
11
|
11
95817-06016-00 Bolt, Flange |
95817-06016-00 |
from US $1.07 |
||
|
12
|
12
95607-08200-00 Nut, Self-Locking |
95607-08200-00 |
from US $2.13 |
||
| replacement | |||||
|
12
|
12
901-85081-69-00 Nut, Self-Locking |
901-85081-69-00 |
from US $2.13 |
||
|
13
|
13
8ES-13520-00-00 Valve Assy |
8ES-13520-00-00 |
from US $84.83 |
||
|
14
|
14
8ES-21745-00-00 Pipe, Oil Tank Breather |
8ES-21745-00-00 |
from US $12.33 |
||
|
15
|
15
904-68081-04-00 Clip |
904-68081-04-00 |
from US $1.70 |
||
|
16
|
16
8ES-2174N-00-00 Pipe, Oil Tank |
8ES-2174N-00-00 |
from US $9.21 |
||
|
17
|
17
90467-12053-00 Clip |
90467-12053-00 |
from US $1.28 |
||
| replacement | |||||
|
17
|
17
90467-11044-00 Clip (7K7) |
90467-11044-00 |
from US $1.28 |
||
|
18
|
18
8ES-21816-00-00 Pipe 1 |
8ES-21816-00-00 |
from US $19.69 |
||
|
19
|
19
90467-20085-00 Clip |
90467-20085-00 |
from US $1.42 |
||
|
20
|
20
904-67220-80-00 Clip |
904-67220-80-00 |
from US $1.56 |
||
|
21
|
21
95827-06020-00 Bolt, Flange |
95827-06020-00 |
from US $1.13 |
||
| replacement | |||||
|
21
|
21
95817-06020-00 Bolt, Flange |
95817-06020-00 |
from US $1.13 |
||
