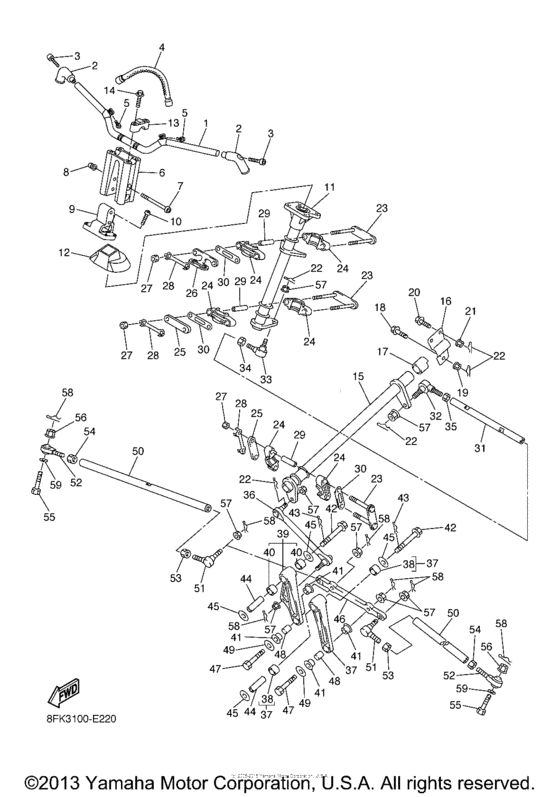

Steering Diagram Yamaha RS10/RS90/RST90/RSG90 RS Vector Mountain
- Model code
- 8FK3
- Engine Capacity
- 1000
- Year
- 2006
- Sales region
- USA
- Power
- 120 hp
- Model
- RS Vector Mountain
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8GE-26111-01-00 Handlebar |
8GE-26111-01-00 |
from US $203.10 |
||
|
2
|
2
8FP-26246-00-00 End, Grip |
8FP-26246-00-00 |
from US $84.24 |
||
|
3
|
3
91318-06040-00 Bolt |
91318-06040-00 |
from US $1.56 |
||
|
4
|
4
8FS-23829-00-00 Strap, Strg |
8FS-23829-00-00 |
from US $119.51 |
||
|
5
|
5
92014-06020-00 Bolt, Button Head |
92014-06020-00 |
from US $1.56 |
||
|
6
|
6
8GE-2381B-00-00 Joint |
8GE-2381B-00-00 |
from US $159.23 |
||
|
7
|
7
92014-08070-00 Bolt, Button Head |
92014-08070-00 |
from US $3.54 |
||
|
8
|
8
90176-08068-00 Nut, Crown |
90176-08068-00 |
from US $2.55 |
||
|
9
|
9
8GF-2381T-10-00 Bracket 2020 |
8GF-2381T-10-00 |
from US $154.74 |
||
|
10
|
10
92014-08025-00 Bolt, Button Head |
92014-08025-00 |
from US $1.56 |
||
|
11
|
11
8FA-23813-01-00 Column, Steering 2 |
8FA-23813-01-00 |
from US $129.73 |
||
|
12
|
12
8GF-26144-00-00 Cover, Handlebar Lower 1 |
8GF-26144-00-00 |
from US $16.15 |
||
|
13
|
13
3SP-23441-00-00 Holder, Handle Upper |
3SP-23441-00-00 |
from US $21.82 |
||
|
14
|
14
95814-08035-00 Bolt, Flange(4Fm) |
95814-08035-00 |
from US $2.69 |
||
|
15
|
15
8FA-23811-00-00 Column, Steering |
8FA-23811-00-00 |
from US $71.98 |
||
|
16
|
16
8FA-23818-00-00 Cover, Steering |
8FA-23818-00-00 |
from US $5.67 |
||
| replacement | |||||
|
16
|
16
8FA-23818-02-00 Cover, Steering |
8FA-23818-02-00 |
from US $5.67 |
||
|
17
|
17
8FA-23873-00-00 Bearing, Steering Upper |
8FA-23873-00-00 |
from US $1.84 |
||
| replacement | |||||
|
17
|
17
8FA-23873-01-00 Bearing, Steering Upper |
8FA-23873-01-00 |
from US $1.84 |
||
|
18
|
18
90105-10728-00 Bolt, Flange |
90105-10728-00 |
from US $5.81 |
||
| replacement | |||||
|
18
|
18
95817-10045-00 Bolt, Flange |
95817-10045-00 |
from US $2.55 |
||
|
19
|
19
956-07102-00-00 Nut, U Flange |
956-07102-00-00 |
from US $5.67 |
||
|
20
|
20
90105-08552-00 Bolt, Flange |
90105-08552-00 |
from US $3.26 |
||
|
21
|
21
95607-08200-00 Nut, Self-Locking |
95607-08200-00 |
from US $2.13 |
||
| replacement | |||||
|
21
|
21
901-85081-69-00 Nut, Self-Locking |
901-85081-69-00 |
from US $2.13 |
||
|
22
|
22
90468-12006-00 Clip |
90468-12006-00 |
from US $1.84 |
||
|
23
|
23
8FA-23872-00-00 Holder, Bearing |
8FA-23872-00-00 |
from US $9.63 |
||
|
24
|
24
8FA-23812-00-00 Bearing, Steering |
8FA-23812-00-00 |
from US $6.23 |
||
|
25
|
25
8FA-23867-00-00 Holder 2 |
8FA-23867-00-00 |
from US $1.56 |
||
|
26
|
26
8CJ-23872-00-00 Holder, Bearing |
8CJ-23872-00-00 |
from US $9.63 |
||
|
27
|
27
953-17086-00-00
Nut, Hex
|
953-17086-00-00 |
— | ||
| replacement | |||||
|
27
|
27
95337-08600-00 Nut |
95337-08600-00 |
from US $1.13 |
||
|
28
|
28
1UY-23894-01-00 Washer, Lock 1 |
1UY-23894-01-00 |
from US $1.70 |
||
|
29
|
29
90387-09006-00 Collar |
90387-09006-00 |
from US $4.25 |
||
|
30
|
30
8FA-23843-00-00 Washer, Plain |
8FA-23843-00-00 |
from US $1.70 |
||
|
31
|
31
8FA-23828-00-00 Rod, Steering |
8FA-23828-00-00 |
from US $12.04 |
||
|
32
|
32
8CR-23847-00-00 Joint, Universal 3 |
8CR-23847-00-00 |
from US $21.82 |
||
|
33
|
33
8CR-23845-10-00 Joint, Universal 2 |
8CR-23845-10-00 |
from US $33.01 |
||
|
34
|
34
95307-10700-00 Nut (95307-10700-00 )95307-10700-00 |
95307-10700-00 |
from US $2.41 |
||
| replacement | |||||
|
34
|
34
95317-10700-00 Nut95307-10700-00 |
95317-10700-00 |
from US $2.41 |
||
|
35
|
35
90170-10186-00 Nut, Hexagon (8A5) |
90170-10186-00 |
from US $1.28 |
||
|
36
|
36
8FA-23821-00-00 Rod, Steering Relay |
8FA-23821-00-00 |
from US $93.67 |
||
|
37
|
37
8FG-2389K-00-00 Arm Pivot Assy |
8FG-2389K-00-00 |
from US $77.78 |
||
|
38
|
38
90383-17001-00 Bush, Formed |
90383-17001-00 |
from US $8.22 |
||
|
39
|
39
8FA-2389M-00-00 Arm Pivot Assy, 2 |
8FA-2389M-00-00 |
from US $118.54 |
||
|
40
|
40
93317-41785-00 Bearing |
93317-41785-00 |
from US $17.85 |
||
|
41
|
41
90381-14001-00 Bush, Solid |
90381-14001-00 |
from US $1.98 |
||
|
42
|
42
90105-12017-00 Bolt, Flange |
90105-12017-00 |
from US $10.63 |
||
|
43
|
43
8FA-2384N-00-00 Clip, Ring |
8FA-2384N-00-00 |
from US $1.56 |
||
|
44
|
44
8FA-2412G-00-00 Collar |
8FA-2412G-00-00 |
from US $6.09 |
||
|
45
|
45
90201-121U3-00 Washer, Plate |
90201-121U3-00 |
from US $6.23 |
||
|
46
|
46
8FU-23826-00-00 Arm, Idler |
8FU-23826-00-00 |
from US $59.96 |
||
|
47
|
47
90102-10044-00 Bolt, With Hole |
90102-10044-00 |
from US $4.11 |
||
|
48
|
48
90387-10008-00 Collar |
90387-10008-00 |
from US $5.10 |
||
| replacement | |||||
|
48
|
48
90387-10070-00 Collar |
90387-10070-00 |
from US $5.10 |
||
|
49
|
49
90201-10742-00 Washer, Plate |
90201-10742-00 |
from US $3.83 |
||
|
50
|
50
8FW-23831-00-00 Rod, Tie |
8FW-23831-00-00 |
from US $28.34 |
||
|
51
|
51
8CR-23845-10-00 Joint, Universal 2 |
8CR-23845-10-00 |
from US $33.01 |
||
|
52
|
52
8FA-23847-00-00 Joint, Universal 3 |
8FA-23847-00-00 |
from US $21.82 |
||
|
53
|
53
95307-10700-00 Nut (95307-10700-00 )95307-10700-00 |
95307-10700-00 |
from US $2.41 |
||
| replacement | |||||
|
53
|
53
95317-10700-00 Nut95307-10700-00 |
95317-10700-00 |
from US $2.41 |
||
|
54
|
54
90170-10186-00 Nut, Hexagon (8A5) |
90170-10186-00 |
from US $1.28 |
||
|
55
|
55
90102-10044-00 Bolt, With Hole |
90102-10044-00 |
from US $4.11 |
||
|
56
|
56
95707-10300-00 Nut, Flange |
95707-10300-00 |
from US $1.34 |
||
|
57
|
57
957-07105-00-00 Nut, Flange |
957-07105-00-00 |
from US $1.21 |
||
| replacement | |||||
|
57
|
57
90179-10394-00 Nut, Flange |
90179-10394-00 |
from US $1.56 |
||
|
58
|
58
914-01200-20-00
Pin, Cotter
|
914-01200-20-00 |
— | ||
| replacement | |||||
|
58
|
58
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.56 |
||
|
59
|
59
90201-08759-00 Washer, Plate |
90201-08759-00 |
from US $1.70 |
||
