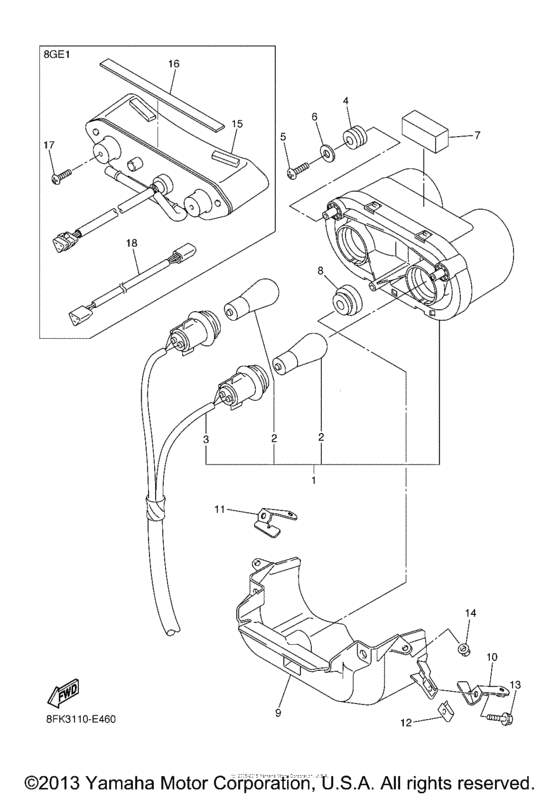

Taillight Diagram Yamaha RS10/RS90/RST90/RSG90 RS Vector Mountain
- Model code
- 8FK3
- Engine Capacity
- 1000
- Year
- 2006
- Sales region
- USA
- Power
- 120 hp
- Model
- RS Vector Mountain
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5JJ-84710-11-00 Taillight Unit Assy |
5JJ-84710-11-00 |
from US $119.09 |
||
| replacement | |||||
|
1
|
1
5JJ-84710-12-00 TAILLIGHT UNIT ASSY |
5JJ-84710-12-00 |
from US $119.09 |
||
|
2
|
2
1A2-84714-41-00
Bulb
12V-21/5W |
1A2-84714-41-00 |
— | ||
| replacement | |||||
|
2
|
2
1A2-84714-50-00 Bulb (12V-21/5W)12V-21/5W |
1A2-84714-50-00 |
from US $4.96 |
||
|
3
|
3
5JJ-84735-00-00
Socket Cord Assy
|
5JJ-84735-00-00 |
— | ||
| replacement | |||||
|
3
|
3
5JJ-84755-00-00
Cord Assy
|
5JJ-84755-00-00 |
— | ||
|
4
|
4
4XV-83513-00-00 Damper |
4XV-83513-00-00 |
from US $1.84 |
||
|
5
|
5
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
| replacement | |||||
|
5
|
5
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $1.84 |
||
|
6
|
6
90201-05725-00 Washer, Plate |
90201-05725-00 |
from US $1.70 |
||
|
7
|
7
5JJ-21747-00-00 Damper |
5JJ-21747-00-00 |
from US $1.40 |
||
|
8
|
8
90480-18171-00 Grommet |
90480-18171-00 |
from US $1.70 |
||
|
9
|
9
8FA-2117E-00-00 Bracket, Taillight |
8FA-2117E-00-00 |
from US $14.45 |
||
|
10
|
10
8ES-77531-00-00 Bracket, Front |
8ES-77531-00-00 |
from US $4.82 |
||
|
11
|
11
8ES-77532-00-00 Bracket, Front (R.h) |
8ES-77532-00-00 |
from US $4.82 |
||
|
12
|
12
901-83060-53-00
Nut, Spring
|
901-83060-53-00 |
— | ||
| replacement | |||||
|
12
|
12
90183-06069-00 Nut, Spring |
90183-06069-00 |
from US $3.54 |
||
|
13
|
13
95807-06014-00 Bolt, Flange |
95807-06014-00 |
from US $1.07 |
||
| replacement | |||||
|
13
|
13
95817-06014-00 Bolt, Flange |
95817-06014-00 |
from US $1.07 |
||
|
14
|
14
956-07062-00-00
Nut, U Flange
|
956-07062-00-00 |
— | ||
| replacement | |||||
|
14
|
14
95604-06200-00 Nut, U Flange |
95604-06200-00 |
from US $1.56 |
||
|
15
|
15
5PW-84710-10-00 Taillight Unit Assy |
5PW-84710-10-00 |
from US $193.93 |
||
|
16
|
16
8FS-21747-00-00 Damper |
8FS-21747-00-00 |
from US $1.35 |
||
|
17
|
17
97707-50014-00 Screw, Truss Head Tapping |
97707-50014-00 |
from US $1.42 |
||
|
18
|
18
8FS-84717-10-00 Cord, Taillight |
8FS-84717-10-00 |
from US $25.50 |
||
