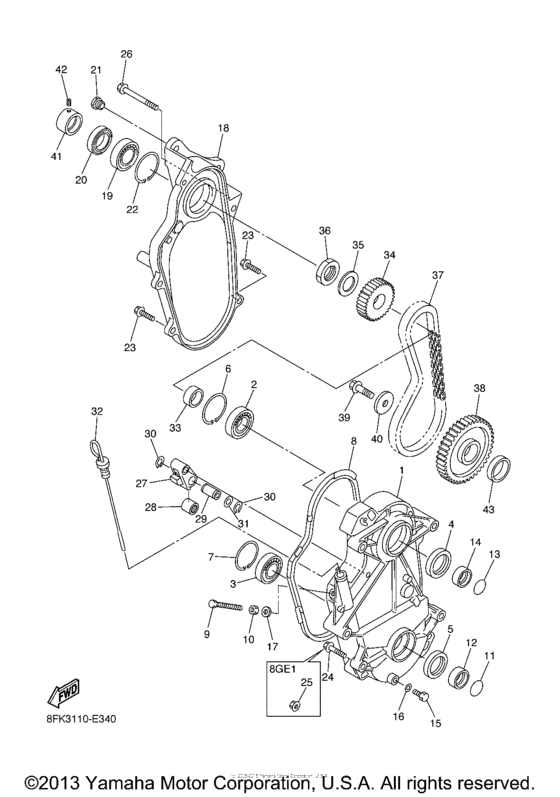

Track drive (2) Diagram Yamaha RS10/RS90/RST90/RSG90 RS Vector Mountain
- Model code
- 8FK3
- Engine Capacity
- 1000
- Year
- 2006
- Sales region
- USA
- Power
- 120 hp
- Model
- RS Vector Mountain
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8FP-47541-00-00 Housing, Chain |
8FP-47541-00-00 |
from US $161.65 |
||
| replacements | |||||
|
1
|
1
8FP-47541-02-00 Chain Housing |
8FP-47541-02-00 |
from US $125.35 |
||
|
1
|
1
8FP-47541-11-00 Housing, Chain |
8FP-47541-11-00 |
from US $161.65 |
||
|
2
|
2
933-06206-01-00
Bearing (B6206C3)
|
933-06206-01-00 |
— | ||
| replacement | |||||
|
2
|
2
933-06206-27-00 Bearing (5X5) |
933-06206-27-00 |
from US $30.76 |
||
|
3
|
3
93306-20592-00 Bearing |
93306-20592-00 |
from US $33.15 |
||
|
4
|
4
93102-40014-00 Oil Seal |
93102-40014-00 |
from US $10.34 |
||
|
5
|
5
93102-35010-00 Oil Seal |
93102-35010-00 |
from US $6.94 |
||
|
6
|
6
99009-62500-00 Circlip |
99009-62500-00 |
from US $1.98 |
||
|
7
|
7
99009-52500-00 Circlip |
99009-52500-00 |
from US $4.96 |
||
|
8
|
8
8FP-47558-00-00 Ring, Housing |
8FP-47558-00-00 |
from US $32.44 |
||
| replacement | |||||
|
8
|
8
8FP-47558-10-00 Ring, Housing |
8FP-47558-10-00 |
from US $32.44 |
||
|
9
|
9
90101-10357-00 Bolt |
90101-10357-00 |
from US $7.37 |
||
|
10
|
10
95307-10700-00 Nut (95307-10700-00 )95307-10700-00 |
95307-10700-00 |
from US $2.41 |
||
| replacement | |||||
|
10
|
10
95317-10700-00 Nut95307-10700-00 |
95317-10700-00 |
from US $2.41 |
||
|
11
|
11
93210-25071-00 O-Ring |
93210-25071-00 |
from US $1.98 |
||
|
12
|
12
90387-2508C-00 Collar |
90387-2508C-00 |
from US $14.45 |
||
|
13
|
13
93210-29282-00 O-Ring |
93210-29282-00 |
from US $1.84 |
||
|
14
|
14
90387-30004-00 Collar |
90387-30004-00 |
from US $24.09 |
||
|
15
|
15
97007-08014-00 Bolt(8Bc) |
97007-08014-00 |
from US $3.12 |
||
|
16
|
16
90210-08017-00 Washer, Seal |
90210-08017-00 |
from US $1.98 |
||
|
17
|
17
90201-106H5-00 Washer, Plate |
90201-106H5-00 |
from US $1.70 |
||
|
18
|
18
8ES-47543-10-00 Cap, Housing8GE1 |
8ES-47543-10-00 |
US $228.22 |
||
| replacement | |||||
|
18
|
18
8ES-47543-01-00 Cap, Housing8GE1 |
8ES-47543-01-00 |
US $222.57 |
||
|
18
|
18
8ES-47543-00-00 Cap, HousingML 8FK3 |
8ES-47543-00-00 |
US $222.57 |
||
| replacement | |||||
|
18
|
18
8ES-47543-01-00 Cap, HousingML 8FK3 |
8ES-47543-01-00 |
US $222.57 |
||
|
19
|
19
93306-20511-00 Bearing |
93306-20511-00 |
from US $27.06 |
||
| replacements | |||||
|
19
|
19
93306-20532-00 Bearing |
93306-20532-00 |
from US $27.06 |
||
|
19
|
19
933-06205-29-00 Bearing |
933-06205-29-00 |
from US $16.20 |
||
|
20
|
20
93102-35473-00 Oil Seal8GE1 |
93102-35473-00 |
from US $24.94 |
||
|
20
|
20
93102-35010-00 Oil SealML 8FK3 |
93102-35010-00 |
from US $6.94 |
||
|
21
|
21
90179-10679-00 Nut |
90179-10679-00 |
from US $5.53 |
||
|
22
|
22
99009-52500-00 Circlip |
99009-52500-00 |
from US $4.96 |
||
|
23
|
23
901-05087-48-00
Bolt, Flange
|
901-05087-48-00 |
— | ||
| replacement | |||||
|
23
|
23
95817-08035-00 Bolt, Flange |
95817-08035-00 |
from US $1.07 |
||
|
24
|
24
95827-10045-00 Bolt, Flange |
95827-10045-00 |
from US $2.55 |
||
| replacement | |||||
|
24
|
24
95817-10045-00 Bolt, Flange |
95817-10045-00 |
from US $2.55 |
||
|
25
|
25
956-07102-00-00 Nut, U Flange |
956-07102-00-00 |
from US $5.67 |
||
|
26
|
26
95827-10090-00 Bolt, Flange |
95827-10090-00 |
from US $3.12 |
||
| replacement | |||||
|
26
|
26
95817-10090-00 Bolt,flange |
95817-10090-00 |
from US $3.12 |
||
|
27
|
27
8ES-47613-00-00 Holder |
8ES-47613-00-00 |
from US $17.43 |
||
|
28
|
28
93311-32685-00 Bearing |
93311-32685-00 |
from US $40.34 |
||
|
29
|
29
90387-22005-00 Collar |
90387-22005-00 |
from US $12.89 |
||
|
30
|
30
99009-26400-00 Circlip |
99009-26400-00 |
from US $1.56 |
||
|
31
|
31
90201-266P2-00 Washer, Plate |
90201-266P2-00 |
from US $3.69 |
||
|
32
|
32
8FA-47546-00-00 Level, Oil |
8FA-47546-00-00 |
from US $13.46 |
||
| replacement | |||||
|
32
|
32
8FA-47546-01-00 Level, Oil |
8FA-47546-01-00 |
from US $13.46 |
||
|
33
|
33
90387-30005-00 Collar |
90387-30005-00 |
from US $9.63 |
||
|
34
|
34
8FA-17682-00-00 Sprocket, Chain Drive (20T)20T UR |
8FA-17682-00-00 |
from US $41.17 |
||
|
34
|
34
8FA-17682-80-00 Sprocket, Chain Drive (18T)18T UR |
8FA-17682-80-00 |
from US $41.17 |
||
|
35
|
35
90208-28001-00 Washer, Conical Spring |
90208-28001-00 |
from US $4.71 |
||
|
36
|
36
90170-28009-00 Nut |
90170-28009-00 |
from US $17.43 |
||
|
37
|
37
948-90090-68-00 Chain (68L)68L |
948-90090-68-00 |
from US $133.19 |
||
|
38
|
38
8DW-47587-01-00 Sprocket, Chain Driven (40T)40T |
8DW-47587-01-00 |
from US $127.94 |
||
|
39
|
39
901-05107-51-00
Bolt, Flange
|
901-05107-51-00 |
— | ||
| replacement | |||||
|
39
|
39
95817-10025-00 Bolt, Flange |
95817-10025-00 |
from US $1.07 |
||
|
40
|
40
90201-10321-00 Washer, Plate |
90201-10321-00 |
from US $2.69 |
||
|
41
|
41
90387-25009-00 Collar |
90387-25009-00 |
from US $25.79 |
||
|
42
|
42
901-13060-64-00
Bolt, Set
|
901-13060-64-00 |
— | ||
| replacement | |||||
|
42
|
42
901-13060-06-00 Bolt, Set |
901-13060-06-00 |
from US $4.39 |
||
|
43
|
43
90387-2508B-00 Collar |
90387-2508B-00 |
from US $8.38 |
||
