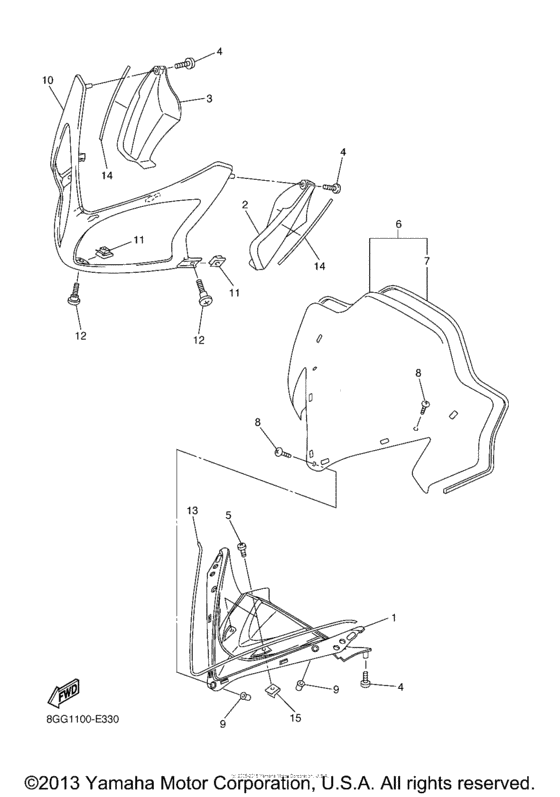

Windshield Diagram Yamaha RS10/RS90/RST90/RSG90 RS Vector Mountain
- Model code
- 8FK3
- Engine Capacity
- 1000
- Year
- 2006
- Sales region
- USA
- Power
- 120 hp
- Model
- RS Vector Mountain
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8FA-77251-01-00 Cover, Headlight |
8FA-77251-01-00 |
from US $111.77 |
||
|
2
|
2
8FA-77185-00-00 Plate 1 |
8FA-77185-00-00 |
from US $28.05 |
||
|
3
|
3
8FA-77186-00-00 Plate 2 |
8FA-77186-00-00 |
from US $28.05 |
||
|
4
|
4
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
| replacement | |||||
|
4
|
4
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $1.84 |
||
|
5
|
5
98907-06014-00 Screw, Binding |
98907-06014-00 |
from US $1.56 |
||
|
6
|
6
8FK-K7210-00-00 Windshield CompML 8FK3 |
8FK-K7210-00-00 |
US $135.25 |
||
|
6
|
6
8GG-K72A0-10-00 Windscreen Comp8GE1 |
8GG-K72A0-10-00 |
US $138.55 |
||
| replacement | |||||
|
6
|
6
SMA-8FA96-10-RC Wsc Low Windscreen Rdch8GE1 |
SMA-8FA96-10-RC |
US $138.55 |
||
|
7
|
7
8FY-K7213-00-00
Trim, Upper
|
8FY-K7213-00-00 |
— | ||
|
8
|
8
901-50050-24-00 Screw, Round Head |
901-50050-24-00 |
from US $1.56 |
||
|
9
|
9
901-79055-23-00 Nut |
901-79055-23-00 |
from US $3.26 |
||
|
10
|
10
8FA-77231-A0-33 FairingYB |
8FA-77231-A0-33 |
from US $75.85 |
||
| replacement | |||||
|
10
|
10
8FA-77231-A1-33 YB |
8FA-77231-A1-33 |
from US $74.37 |
||
|
11
|
11
901-83060-53-00
Nut, Spring
|
901-83060-53-00 |
— | ||
| replacement | |||||
|
11
|
11
90183-06069-00 Nut, Spring |
90183-06069-00 |
from US $3.54 |
||
|
12
|
12
90154-06009-00 Screw, Binding |
90154-06009-00 |
from US $2.69 |
||
|
13
|
13
8FA-77214-00-00 Trim, Lower |
8FA-77214-00-00 |
from US $2.27 |
||
|
14
|
14
8FA-77215-00-00 Trim 3 |
8FA-77215-00-00 |
from US $1.28 |
||
|
15
|
15
901-83060-53-00
Nut, Spring
|
901-83060-53-00 |
— | ||
| replacement | |||||
|
15
|
15
90183-06069-00 Nut, Spring |
90183-06069-00 |
from US $3.54 |
||
