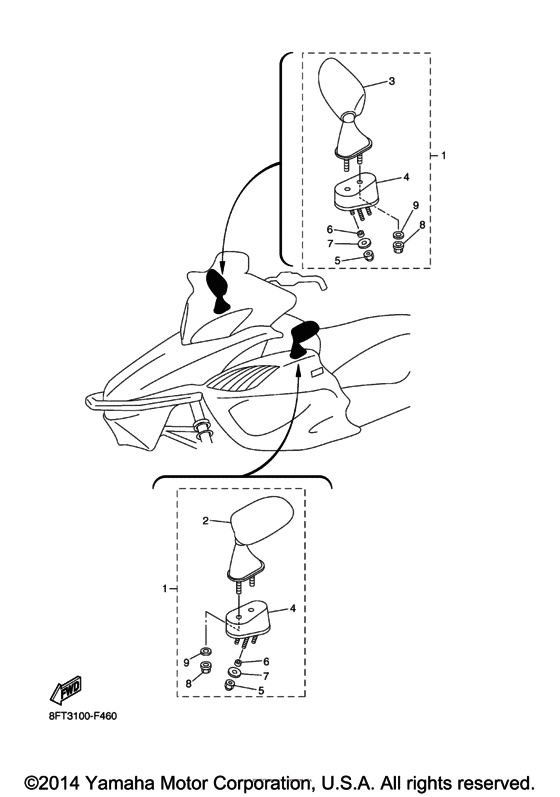

Alternate rear view mirror Diagram Yamaha RS10/RS90/RST90/RSG90 RS Vector L-TX
- Model code
- 8HW7
- Engine Capacity
- 1000
- Year
- 2015
- Sales region
- USA
- Model
- RS Vector L-TX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8FP-W2628-03-00 Rear View Mirror SetAP |
8FP-W2628-03-00 |
from US $365.74 |
||
|
2
|
2
4SV-26280-00-00 Rear View Mirror Assy(Left) |
4SV-26280-00-00 |
from US $117.71 |
||
|
3
|
3
4SV-26290-00-00 Rear View Mirror Assy (Right) |
4SV-26290-00-00 |
from US $117.71 |
||
|
4
|
4
8FP-2628N-10-00 Base, Mirror |
8FP-2628N-10-00 |
from US $90.63 |
||
|
5
|
5
95707-06300-00 Nut, Nylon |
95707-06300-00 |
from US $1.56 |
||
|
6
|
6
90387-06008-00 Collar |
90387-06008-00 |
from US $7.51 |
||
|
7
|
7
90201-06557-00 Washer, Plate |
90201-06557-00 |
from US $1.70 |
||
| replacement | |||||
|
7
|
7
90201-06020-00 Washer, Plate |
90201-06020-00 |
from US $1.56 |
||
|
8
|
8
95602-06200-00 Nut, U Flange |
95602-06200-00 |
from US $1.56 |
||
| replacement | |||||
|
8
|
8
95604-06200-00 Nut, U Flange |
95604-06200-00 |
from US $1.56 |
||
|
9
|
9
90201-063A5-00 Washer, Plate |
90201-063A5-00 |
from US $2.69 |
||
