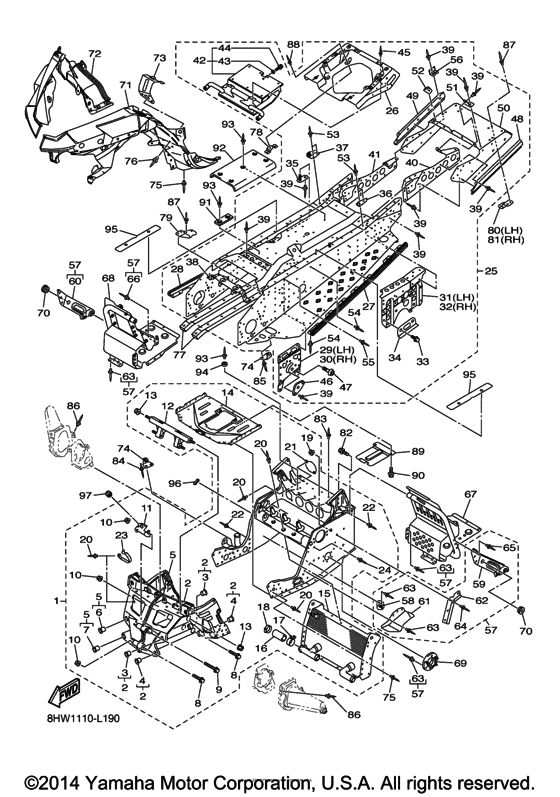

Frame Diagram Yamaha RS10/RS90/RST90/RSG90 RS Vector L-TX
- Model code
- 8HW7
- Engine Capacity
- 1000
- Year
- 2015
- Sales region
- USA
- Model
- RS Vector L-TX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8HV-21940-00-00 Front Frame Comp |
8HV-21940-00-00 |
US $2,091.26 |
||
|
2
|
2
8FA-W2197-13-00 Bulkhead |
8FA-W2197-13-00 |
from US $495.13 |
||
|
3
|
3
90381-15001-00 Bush, Solid |
90381-15001-00 |
from US $2.55 |
||
|
4
|
4
903-81160-04-00 Bush, Solid |
903-81160-04-00 |
from US $4.11 |
||
|
5
|
5
8FA-W2198-15-00 Bulkhead 2 |
8FA-W2198-15-00 |
from US $495.13 |
||
| replacement | |||||
|
5
|
5
8FA-W2198-20-00 Bulkhead 2 |
8FA-W2198-20-00 |
US $509.63 |
||
|
6
|
6
90381-15001-00 Bush, Solid |
90381-15001-00 |
from US $2.55 |
||
|
7
|
7
903-81160-04-00 Bush, Solid |
903-81160-04-00 |
from US $4.11 |
||
|
8
|
8
95827-08060-00 Bolt, Flange |
95827-08060-00 |
from US $1.07 |
||
| replacement | |||||
|
8
|
8
958-17080-60-00 Bolt, Flange |
958-17080-60-00 |
from US $1.07 |
||
|
9
|
9
95827-08065-00 Bolt, Flange |
95827-08065-00 |
from US $5.10 |
||
| replacements | |||||
|
9
|
9
90105-084A1-00 Bolt, Flange |
90105-084A1-00 |
from US $5.10 |
||
|
9
|
9
90105-08721-00 Bolt, Washer Based(4Jg) |
90105-08721-00 |
from US $4.79 |
||
|
10
|
10
95607-08200-00 Nut, Self-Locking |
95607-08200-00 |
from US $2.13 |
||
| replacement | |||||
|
10
|
10
901-85081-69-00 Nut, Self-Locking |
901-85081-69-00 |
from US $2.13 |
||
|
11
|
11
8HG-2836E-00-00 Bracket 2 |
8HG-2836E-00-00 |
US $12.98 |
||
|
12
|
12
8FG-21947-00-00 Bracket, Steering 1 |
8FG-21947-00-00 |
from US $146.45 |
||
|
13
|
13
956-07102-00-00 Nut, U Flange |
956-07102-00-00 |
from US $5.67 |
||
|
14
|
14
8FR-2193A-01-00 Protector |
8FR-2193A-01-00 |
from US $88.01 |
||
|
15
|
15
8JA-12440-00-00 Heat Exchanger Assy |
8JA-12440-00-00 |
US $530.53 |
||
|
16
|
16
8FA-12551-00-00 Hose 7 |
8FA-12551-00-00 |
from US $3.97 |
||
|
17
|
17
90467-28046-00 Clip (8M6) |
90467-28046-00 |
from US $3.54 |
||
|
18
|
18
904-50350-01-00 Hose Clamp Assy |
904-50350-01-00 |
from US $5.24 |
||
|
19
|
19
95607-08200-00 Nut, Self-Locking |
95607-08200-00 |
from US $2.13 |
||
| replacement | |||||
|
19
|
19
901-85081-69-00 Nut, Self-Locking |
901-85081-69-00 |
from US $2.13 |
||
|
20
|
20
90267-47195-00 Rivet, Blind(4.7X16.4 Yellow) |
90267-47195-00 |
from US $1.98 |
||
|
21
|
21
8ES-2131D-00-00 Plate, Cover |
8ES-2131D-00-00 |
from US $3.26 |
||
|
22
|
22
90267-48176-00 Rivet, Blind (4.8X16.4 Yellow |
90267-48176-00 |
from US $1.84 |
||
| replacement | |||||
|
22
|
22
90267-48016-00 Rivet, Blind (4.8X16.4 Yellow |
90267-48016-00 |
from US $1.84 |
||
|
23
|
23
904-62080-83-00 Clamp |
904-62080-83-00 |
from US $4.68 |
||
|
24
|
24
90267-48177-00 Rivet, Blind (4.8X14 Yellow) |
90267-48177-00 |
from US $1.98 |
||
|
25
|
25
8HW-21950-00-00 Rear Frame Comp |
8HW-21950-00-00 |
US $2,739.76 |
||
|
26
|
26
8FA-W2199-10-00 Reineforcement, Frame Rear 1 |
8FA-W2199-10-00 |
from US $422.84 |
||
|
27
|
27
8FG-21926-00-00 Reinforcement, Footrest 1 |
8FG-21926-00-00 |
from US $107.21 |
||
|
28
|
28
8FG-21936-00-00 Reinforcement, Footrest 2 |
8FG-21936-00-00 |
from US $107.21 |
||
|
29
|
29
8FU-21943-00-00 Bracket, Main Track 1 |
8FU-21943-00-00 |
from US $20.20 |
||
|
30
|
30
8FU-21953-00-00 Bracket, Main Track 2 |
8FU-21953-00-00 |
from US $24.09 |
||
|
31
|
31
8FT-21944-00-00 Bracket, Rr. Track Suspension |
8FT-21944-00-00 |
from US $67.42 |
||
|
32
|
32
8FT-21954-00-00 Bracket, Rr. Track Suspension |
8FT-21954-00-00 |
from US $67.42 |
||
|
33
|
33
95814-10020-00 Bolt, Flange |
95814-10020-00 |
from US $3.26 |
||
|
34
|
34
8FU-21988-01-00 Patch 8 |
8FU-21988-01-00 |
from US $5.81 |
||
|
35
|
35
8CR-2194N-00-00 Bracket, Fuel Tank 1 |
8CR-2194N-00-00 |
from US $2.41 |
||
|
36
|
36
8FA-2194X-00-00 Bracket 1 |
8FA-2194X-00-00 |
from US $1.98 |
||
|
37
|
37
8FA-2195X-00-00 Bracket 2 |
8FA-2195X-00-00 |
from US $1.98 |
||
|
38
|
38
8ES-2194H-00-00 Protector, Muffler |
8ES-2194H-00-00 |
from US $45.59 |
||
|
39
|
39
90267-47195-00 Rivet, Blind(4.7X16.4 Yellow)QTY:114 |
90267-47195-00 |
from US $1.98 |
||
|
40
|
40
8FT-21963-00-00 Patch 3 |
8FT-21963-00-00 |
from US $46.42 |
||
|
41
|
41
8FT-21964-00-00 Patch 4 |
8FT-21964-00-00 |
from US $46.42 |
||
|
42
|
42
8FT-1241A-00-00 Heat Exchanger Assy 4 |
8FT-1241A-00-00 |
from US $462.40 |
||
|
43
|
43
90210-06006-00 Washer, Seal |
90210-06006-00 |
from US $1.98 |
||
|
44
|
44
95812-06012-00 Bolt, Flange |
95812-06012-00 |
from US $1.07 |
||
| replacement | |||||
|
44
|
44
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.07 |
||
|
45
|
45
90267-48095-00 Rivet, Blind (4.8X12.6 Silver) |
90267-48095-00 |
from US $1.98 |
||
|
46
|
46
8FU-21919-00-00 Bracket, Main Track 3 |
8FU-21919-00-00 |
from US $3.83 |
||
|
47
|
47
92014-10020-00 Bolt, Button Head |
92014-10020-00 |
from US $4.11 |
||
|
48
|
48
8FG-2111J-00-00 Member, Side 1 |
8FG-2111J-00-00 |
from US $67.28 |
||
|
49
|
49
8FG-2111K-00-00 Member, Side 2 |
8FG-2111K-00-00 |
from US $67.28 |
||
|
50
|
50
8FT-21916-01-00 Panel, Sub Frame 5 |
8FT-21916-01-00 |
from US $133.46 |
||
|
51
|
51
8FG-21988-00-00 Patch 8 |
8FG-21988-00-00 |
from US $2.41 |
||
|
52
|
52
8FG-21989-00-00 Patch 9 |
8FG-21989-00-00 |
from US $2.41 |
||
|
53
|
53
90267-47197-00 Rivet, Blind (4.7X19.5 Silver) |
90267-47197-00 |
from US $1.98 |
||
|
54
|
54
90267-48023-00 Rivet, Blind |
90267-48023-00 |
from US $1.84 |
||
|
55
|
55
90267-48177-00 Rivet, Blind (4.8X14 Yellow) |
90267-48177-00 |
from US $1.98 |
||
|
56
|
56
8FT-2113J-00-00 Bracket, Reflector 1 |
8FT-2113J-00-00 |
US $14.04 |
||
|
57
|
57
8JA-W2195-00-00 Frame Connection Kit |
8JA-W2195-00-00 |
from US $231.42 |
||
|
58
|
58
8CR-21939-01-00 Bracket, Chain Housing |
8CR-21939-01-00 |
from US $4.39 |
||
|
59
|
59
8JA-2196M-00-00 Bracket, 5 |
8JA-2196M-00-00 |
from US $25.36 |
||
|
60
|
60
8JA-2197M-00-00 Bracket, 6 |
8JA-2197M-00-00 |
from US $25.36 |
||
|
61
|
61
8FP-2198G-01-00 Cover 2 |
8FP-2198G-01-00 |
from US $13.18 |
||
|
62
|
62
8FA-21999-00-00 Clamp, Wire Harness |
8FA-21999-00-00 |
from US $3.40 |
||
|
63
|
63
90267-47195-00 Rivet, Blind(4.7X16.4 Yellow) |
90267-47195-00 |
from US $1.98 |
||
|
64
|
64
90267-48018-00 Rivet, Blind (4.8X18.6 Black) |
90267-48018-00 |
from US $1.28 |
||
|
65
|
65
90267-48177-00 Rivet, Blind (4.8X14 Yellow) |
90267-48177-00 |
from US $1.98 |
||
|
66
|
66
90267-47186-00 Rivet, Blind (4.7X16.4 Black) |
90267-47186-00 |
from US $1.35 |
||
|
67
|
67
8JA-21960-00-00 Footrest Comp. 1 |
8JA-21960-00-00 |
US $257.08 |
||
|
68
|
68
8HG-21970-00-00 Footrest Comp. 2 |
8HG-21970-00-00 |
US $311 |
||
|
69
|
69
8EK-21920-01-00 Housing, Reinf Sub-Assy (L.h) |
8EK-21920-01-00 |
from US $10.48 |
||
|
70
|
70
90480-13567-00 Grommet |
90480-13567-00 |
from US $1.84 |
||
|
71
|
71
8GM-2196A-01-00 Frame Under 1 |
8GM-2196A-01-00 |
from US $58.03 |
||
|
72
|
72
8FP-2196E-02-00 Frame, Under 2 |
8FP-2196E-02-00 |
from US $47.39 |
||
|
73
|
73
8FP-21972-00-00 Bracket, Guard Fitting |
8FP-21972-00-00 |
from US $10.48 |
||
|
74
|
74
8FA-2196F-00-00 Bracket 3 |
8FA-2196F-00-00 |
from US $2.69 |
||
|
75
|
75
90267-48018-00 Rivet, Blind (4.8X18.6 Black) |
90267-48018-00 |
from US $1.28 |
||
|
76
|
76
90267-47200-00 Rivet, Blind (4.7X19.5 Black) |
90267-47200-00 |
from US $1.98 |
||
|
77
|
77
8FT-21978-00-00 Protector, Frame |
8FT-21978-00-00 |
from US $74.47 |
||
|
78
|
78
8FT-2197N-00-00 Bracket 7 |
8FT-2197N-00-00 |
from US $3.97 |
||
|
79
|
79
8FU-2197N-00-00 Bracket 7 |
8FU-2197N-00-00 |
from US $7.93 |
||
|
80
|
80
8FT-2196F-00-00 Bracket 3 |
8FT-2196F-00-00 |
from US $5.53 |
||
|
81
|
81
8FT-2196G-00-00 Bracket 4 |
8FT-2196G-00-00 |
from US $5.53 |
||
|
82
|
82
95822-08020-00 Bolt, Flange |
95822-08020-00 |
from US $1.07 |
||
| replacement | |||||
|
82
|
82
958-17080-20-00 Bolt, Flange |
958-17080-20-00 |
from US $0.85 |
||
|
83
|
83
90267-48169-00 Rivet, Blind (4.7X16.4 Black) |
90267-48169-00 |
from US $1.35 |
||
| replacement | |||||
|
83
|
83
90267-47186-00 Rivet, Blind (4.7X16.4 Black) |
90267-47186-00 |
from US $1.35 |
||
|
84
|
84
90267-48083-00 Rivet, Blind |
90267-48083-00 |
from US $2.55 |
||
|
85
|
85
90267-48095-00 Rivet, Blind (4.8X12.6 Silver) |
90267-48095-00 |
from US $1.98 |
||
|
86
|
86
90267-47195-00 Rivet, Blind(4.7X16.4 Yellow) |
90267-47195-00 |
from US $1.98 |
||
|
87
|
87
90267-48023-00 Rivet, Blind |
90267-48023-00 |
from US $1.84 |
||
|
88
|
88
90267-48177-00 Rivet, Blind (4.8X14 Yellow) |
90267-48177-00 |
from US $1.98 |
||
|
89
|
89
8FR-2197E-00-00 Protector, Frame Fr |
8FR-2197E-00-00 |
from US $24.51 |
||
|
90
|
90
92012-06012-00 Bolt, Button Head |
92012-06012-00 |
from US $1.56 |
||
|
91
|
91
8FA-21998-00-00 Spacer |
8FA-21998-00-00 |
from US $3.12 |
||
|
92
|
92
8FG-23892-00-00 Shield, Heat |
8FG-23892-00-00 |
from US $35.85 |
||
|
93
|
93
90267-48059-00 Rivet, Blind (4.8X12.3) |
90267-48059-00 |
from US $1.70 |
||
|
94
|
94
8HG-24768-00-00 Stopper |
8HG-24768-00-00 |
US $10.26 |
||
|
95
|
95
8HG-2214F-00-00 Damper 1 |
8HG-2214F-00-00 |
US $15.01 |
||
|
96
|
96
8FA-7717H-00-00 Tape 4 |
8FA-7717H-00-00 |
from US $1.28 |
||
|
97
|
97
90480-12053-00 Grommet |
90480-12053-00 |
from US $1.66 |
||
