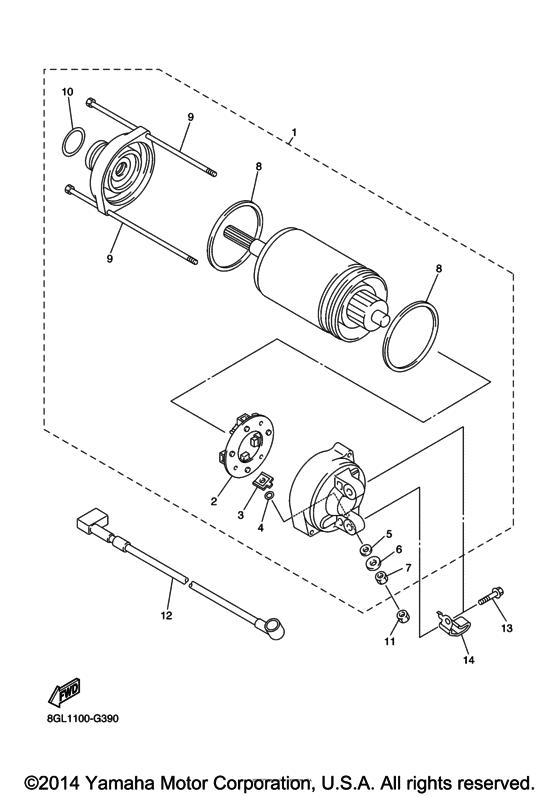

Starting motor Diagram Yamaha RS10/RS90/RST90/RSG90 RS Vector L-TX
- Model code
- 8HW7
- Engine Capacity
- 1000
- Year
- 2015
- Sales region
- USA
- Model
- RS Vector L-TX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8GL-81890-00-00 Motor Assy |
8GL-81890-00-00 |
US $508.77 |
||
| replacement | |||||
|
1
|
1
8GL-81890-01-00 MOTOR ASSY |
8GL-81890-01-00 |
from US $407.21 |
||
|
2
|
2
2S3-81801-00-00 Brush Set |
2S3-81801-00-00 |
from US $57.47 |
||
|
3
|
3
2S3-8182G-00-00 Bush, Terminal |
2S3-8182G-00-00 |
from US $4.39 |
||
|
4
|
4
93210-06001-00 O-Ring |
93210-06001-00 |
from US $1.84 |
||
| replacement | |||||
|
4
|
4
93210-06632-00 O-Ring |
93210-06632-00 |
from US $1.84 |
||
|
5
|
5
8FA-8181L-00-00 Washer, Plain |
8FA-8181L-00-00 |
from US $3.40 |
||
|
6
|
6
1D7-81835-00-00 Washer |
1D7-81835-00-00 |
from US $1.70 |
||
|
7
|
7
95302-06700-00 Nut, Hexagon |
95302-06700-00 |
from US $1.42 |
||
| replacements | |||||
|
7
|
7
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.42 |
||
|
7
|
7
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.34 |
||
|
8
|
8
5PX-81861-00-00 Gasket |
5PX-81861-00-00 |
from US $7.65 |
||
|
9
|
9
8ES-81846-01-00 Screw |
8ES-81846-01-00 |
from US $3.68 |
||
|
10
|
10
932-10242-35-00 O-Ring |
932-10242-35-00 |
from US $2.32 |
||
|
11
|
11
95302-06700-00 Nut, Hexagon |
95302-06700-00 |
from US $1.42 |
||
| replacements | |||||
|
11
|
11
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.42 |
||
|
11
|
11
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.34 |
||
|
12
|
12
8ES-8183G-00-00 Cord Comp |
8ES-8183G-00-00 |
from US $23.80 |
||
|
13
|
13
95812-08030-00 Bolt, Flange |
95812-08030-00 |
from US $1.42 |
||
|
14
|
14
90465-08030-00 Clamp |
90465-08030-00 |
from US $7.65 |
||
