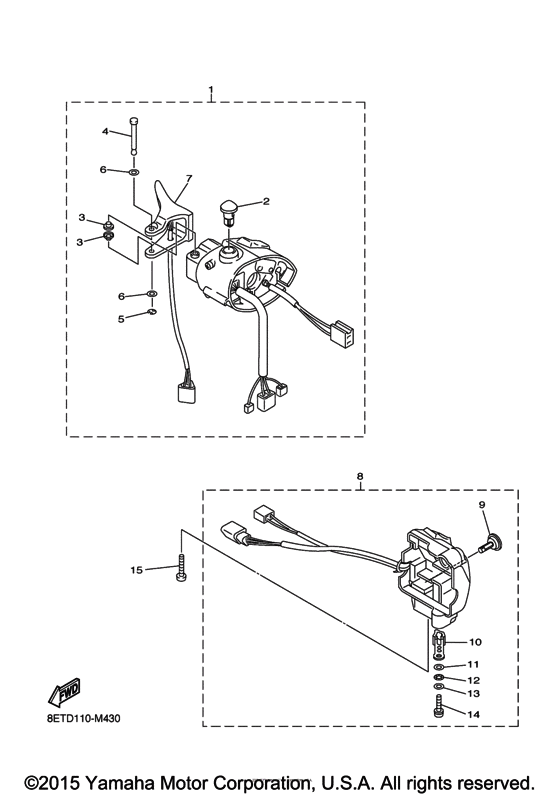

Handle switch & lever Diagram Yamaha RS10/RS90/RST90/RSG90 RS Venture
- Model code
- 8ETG
- Engine Capacity
- 1000
- Year
- 2016
- Sales region
- USA
- Model
- RS Venture
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8ES-82720-02-00 Lever Holder Assy (Right) |
8ES-82720-02-00 |
from US $194.81 |
||
|
2
|
2
8GL-86284-09-00 Stop Switch |
8GL-86284-09-00 |
from US $12.75 |
||
|
3
|
3
85G-83956-00-00 Cap 1 |
85G-83956-00-00 |
from US $1.56 |
||
|
4
|
4
8R6-8399F-00-00 Shaft |
8R6-8399F-00-00 |
from US $3.97 |
||
|
5
|
5
99001-04600-00 Circlip |
99001-04600-00 |
from US $1.56 |
||
| replacement | |||||
|
5
|
5
99080-04600-00 Circlip |
99080-04600-00 |
from US $1.34 |
||
|
6
|
6
8FP-82558-00-00 Washer |
8FP-82558-00-00 |
from US $1.28 |
||
|
7
|
7
8FA-82970-01-00 Thumb Warmer Assy |
8FA-82970-01-00 |
from US $80.55 |
||
|
8
|
8
8FA-83973-01-00 Switch, Handle 3 |
8FA-83973-01-00 |
from US $138.02 |
||
|
9
|
9
8GL-82526-09-00 Switch, Lamp |
8GL-82526-09-00 |
from US $8.78 |
||
|
10
|
10
5GH-83941-00-00 Lever, Starter |
5GH-83941-00-00 |
from US $6.30 |
||
|
11
|
11
8FA-83943-00-00 Washer, Starter |
8FA-83943-00-00 |
from US $1.21 |
||
|
12
|
12
3L4-83943-00-00 Washer, Starter |
3L4-83943-00-00 |
from US $2.69 |
||
|
13
|
13
1UY-83909-00-00 Washer, Special |
1UY-83909-00-00 |
from US $2.27 |
||
|
14
|
14
976-07051-12-00 Screw,with Washer |
976-07051-12-00 |
from US $2.27 |
||
|
15
|
15
98502-05016-00 Screw, Pan Head |
98502-05016-00 |
US $1.07 |
||
| replacements | |||||
|
15
|
15
98507-05016-00 Screw, Pan Head |
98507-05016-00 |
from US $1.07 |
||
|
15
|
15
97885-05016-00 Screw, Pan Head |
97885-05016-00 |
from US $3.12 |
||
