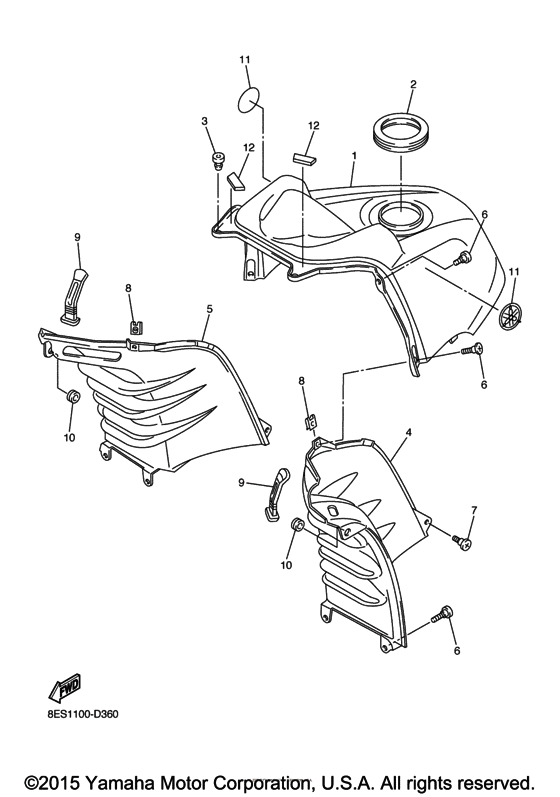

Instrument panel Diagram Yamaha RS10/RS90/RST90/RSG90 RS Venture
- Model code
- 8ETG
- Engine Capacity
- 1000
- Year
- 2016
- Sales region
- USA
- Model
- RS Venture
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8FA-77711-10-P0 Panel, InstrumentUse for Color BLUISH SILVER 4 ( BS4 / 0820 ) |
8FA-77711-10-P0 |
from US $227.96 |
||
|
2
|
2
8FA-77746-00-00 Grommet |
8FA-77746-00-00 |
from US $4.82 |
||
|
3
|
3
4N0-27114-00-00 Stopper, Main Stand |
4N0-27114-00-00 |
from US $4.53 |
||
|
4
|
4
8FA-77131-00-00 Louver 1 |
8FA-77131-00-00 |
from US $32.02 |
||
|
5
|
5
8FA-77132-00-00 Louver 2 |
8FA-77132-00-00 |
from US $32.02 |
||
|
6
|
6
90154-06009-00 Screw, Binding |
90154-06009-00 |
from US $2.69 |
||
|
7
|
7
90149-06263-00 Screw(2Xf) |
90149-06263-00 |
from US $1.56 |
||
|
8
|
8
90183-06100-00 Nut, Spring |
90183-06100-00 |
from US $6.23 |
||
|
9
|
9
8FA-77171-00-00 Body, Latch 1 |
8FA-77171-00-00 |
from US $4.68 |
||
|
10
|
10
90480-16278-00 Grommet |
90480-16278-00 |
from US $1.35 |
||
|
11
|
11
5JW-2413B-00-00 Emblem |
5JW-2413B-00-00 |
from US $24.37 |
||
|
12
|
12
8FA-77737-00-00 Trim, Instrument Panel 1 |
8FA-77737-00-00 |
from US $0.38 |
