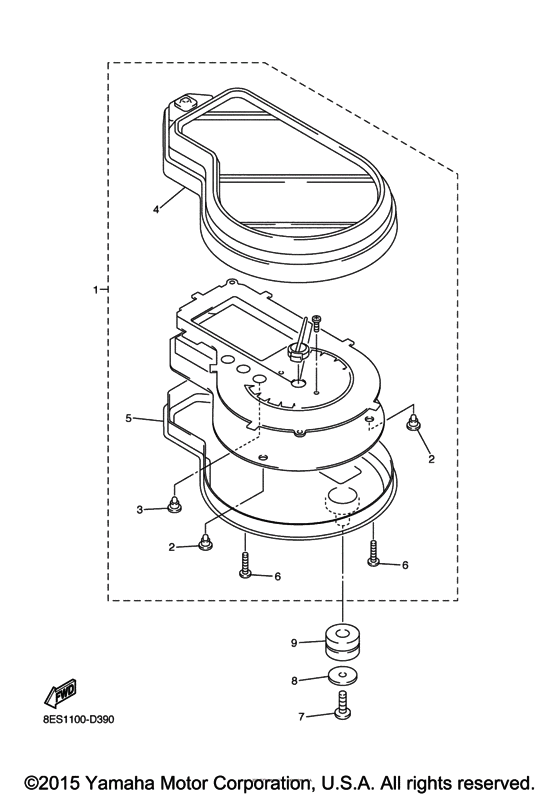

Meter Diagram Yamaha RS10/RS90/RST90/RSG90 RS Venture
- Model code
- 8ETG
- Engine Capacity
- 1000
- Year
- 2016
- Sales region
- USA
- Model
- RS Venture
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8ES-83500-11-00 Speedometer Assy |
8ES-83500-11-00 |
from US $536.05 |
||
|
2
|
2
4WM-83517-00-00 Bulb (T3 14V-50Ma) |
4WM-83517-00-00 |
from US $9.05 |
||
| replacement | |||||
|
2
|
2
5JA-83517-00-00 Bulb (T3 14V-0.4A) |
5JA-83517-00-00 |
from US $11.76 |
||
|
3
|
3
4WM-83517-10-00 Bulb (T3.4 14V-80Ma) |
4WM-83517-10-00 |
from US $7.94 |
||
|
4
|
4
8EK-8353E-01-00 Case, Meter Upper |
8EK-8353E-01-00 |
from US $32.73 |
||
|
5
|
5
8EK-83572-01-00 Case, Speedometer Lower |
8EK-83572-01-00 |
from US $46.97 |
||
|
6
|
6
5PW-8352S-00-00 Screw, Panel Ftting |
5PW-8352S-00-00 |
from US $1.84 |
||
|
7
|
7
97702-50016-00 Screw, Tapping |
97702-50016-00 |
from US $1.42 |
||
| replacement | |||||
|
7
|
7
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $1.84 |
||
|
8
|
8
90201-05725-00 Washer, Plate |
90201-05725-00 |
from US $1.70 |
||
|
9
|
9
4XV-83513-00-00 Damper |
4XV-83513-00-00 |
from US $1.84 |
||
