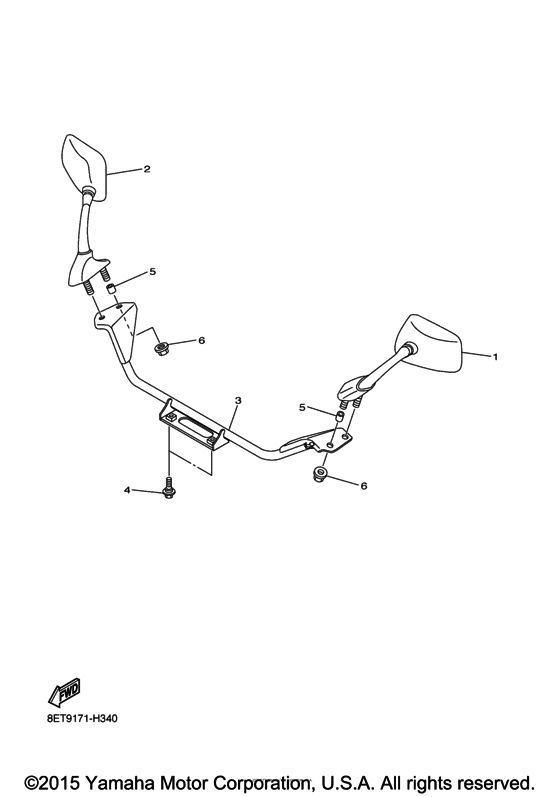

Rear view mirror Diagram Yamaha RS10/RS90/RST90/RSG90 RS Venture
- Model code
- 8ETG
- Engine Capacity
- 1000
- Year
- 2016
- Sales region
- USA
- Model
- RS Venture
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8ET-26280-00-00 Mirror Assy (Lh) |
8ET-26280-00-00 |
from US $83.31 |
||
|
2
|
2
8ET-26290-00-00 Mirror Assy (Rh) |
8ET-26290-00-00 |
from US $83.31 |
||
|
3
|
3
8ET-77241-01-00 Stay, Fairing |
8ET-77241-01-00 |
from US $38.96 |
||
|
4
|
4
90109-06261-00 Bolt |
90109-06261-00 |
from US $1.56 |
||
|
5
|
5
90387-0610J-00 Collar |
90387-0610J-00 |
from US $1.84 |
||
|
6
|
6
95602-06200-00 Nut, U Flange |
95602-06200-00 |
from US $1.56 |
||
| replacement | |||||
|
6
|
6
95604-06200-00 Nut, U Flange |
95604-06200-00 |
from US $1.56 |
||
