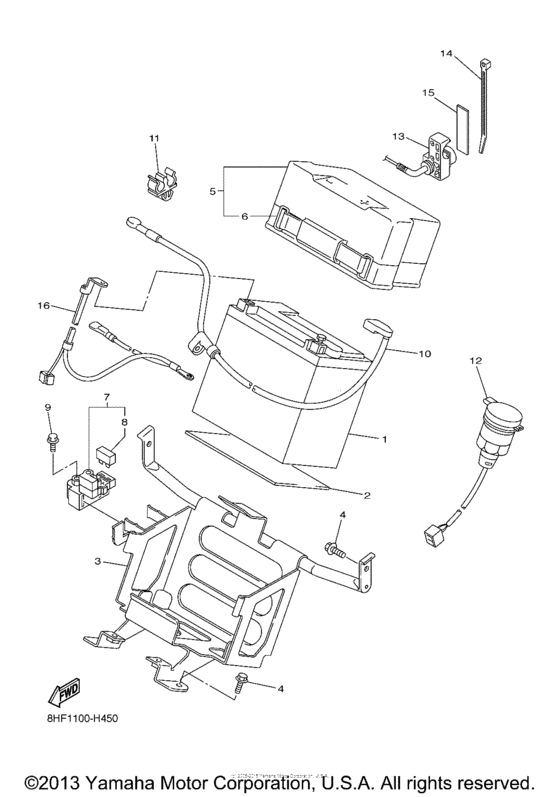

Electrical (2) Diagram Yamaha RS10/RS90/RST90/RSG90 RS Venture GT
- Model code
- 8HF5
- Engine Capacity
- 1000
- Year
- 2011
- Sales region
- USA
- Power
- 120 hp
- Model
- RS Venture GT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4SH-82100-22-00
Ytx20Lbs Yuasa Batt
|
4SH-82100-22-00 |
— | ||
| replacements | |||||
|
1
|
1
YTX-20LBS-00-00
Bat Ytx20L-Bs (Ptx20L-Bs) Yu
|
YTX-20LBS-00-00 |
— | ||
|
1
|
1
BTY-GTX20-LB-S0
Battery gtx-20l-bs
|
BTY-GTX20-LB-S0 |
— | ||
|
2
|
2
8FA-82122-00-00 Seat, Battery |
8FA-82122-00-00 |
from US $4.04 |
||
|
3
|
3
8HF-2199G-00-00 Bracket, Battery |
8HF-2199G-00-00 |
US $129.62 |
||
|
4
|
4
95822-08016-00 Bolt, Flange |
95822-08016-00 |
from US $0.90 |
||
| replacements | |||||
|
4
|
4
95814-08016-00 Bolt, Flange |
95814-08016-00 |
from US $1.05 |
||
|
4
|
4
901-0508X-15-00
Blt,hex,1/4-20X5/8
|
901-0508X-15-00 |
— | ||
|
4
|
4
958-17080-16-00 Bolt, Flange |
958-17080-16-00 |
from US $0.90 |
||
|
5
|
5
8FA-82129-00-00 Cover, Battery |
8FA-82129-00-00 |
from US $18.70 |
||
|
6
|
6
8DM-82131-10-00 Band, Battery |
8DM-82131-10-00 |
from US $10.17 |
||
|
7
|
7
8HG-81940-00-00 Starter Relay Assy |
8HG-81940-00-00 |
from US $51.71 |
||
|
8
|
8
42X-82151-00-00 Fuse (10A-Bl)10A-BL |
42X-82151-00-00 |
from US $1.22 |
||
|
9
|
9
95022-06008-00 Bolt, Flange |
95022-06008-00 |
from US $1.43 |
||
|
10
|
10
8HF-82115-00-00 Wire, Plus Lead |
8HF-82115-00-00 |
US $59.42 |
||
|
11
|
11
90464-08126-00 Clamp |
90464-08126-00 |
from US $1.65 |
||
|
12
|
12
8FP-8254B-00-00 Terminal Comp |
8FP-8254B-00-00 |
from US $51.57 |
||
|
13
|
13
8HF-8254B-00-00 Terminal Comp |
8HF-8254B-00-00 |
from US $65.44 |
||
|
14
|
14
90464-35132-00 Clamp |
90464-35132-00 |
from US $1.28 |
||
|
15
|
15
8HF-84527-00-00 Damper |
8HF-84527-00-00 |
from US $3.74 |
||
|
16
|
16
8GM-82116-00-00 Wire, Minus Lead |
8GM-82116-00-00 |
US $48.96 |
||
