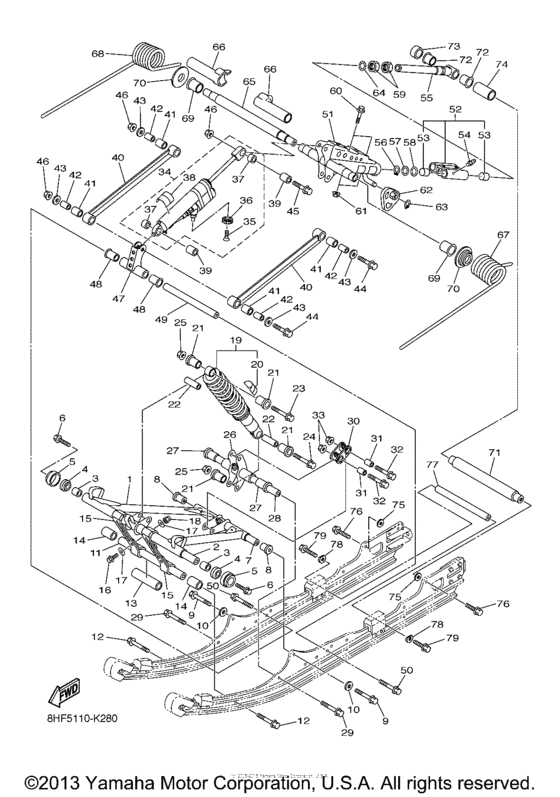

Track suspension (2) Diagram Yamaha RS10/RS90/RST90/RSG90 RS Venture GT
- Model code
- 8HF5
- Engine Capacity
- 1000
- Year
- 2011
- Sales region
- USA
- Power
- 120 hp
- Model
- RS Venture GT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8HF-47331-00-00 Arm, Pivot 1 |
8HF-47331-00-00 |
US $388.76 |
||
|
2
|
2
8HF-47465-00-00 Shaft 1 |
8HF-47465-00-00 |
US $151.24 |
||
|
3
|
3
90383-23001-00 Bush, Formed |
90383-23001-00 |
from US $16.15 |
||
|
4
|
4
93108-37011-00 Oil Seal |
93108-37011-00 |
from US $4.53 |
||
|
5
|
5
8HF-47341-00-00 Spacer |
8HF-47341-00-00 |
from US $5.67 |
||
|
6
|
6
90109-10030-00 Bolt |
90109-10030-00 |
from US $4.11 |
||
| replacement | |||||
|
6
|
6
901-09100-32-00 Bolt |
901-09100-32-00 |
from US $4.11 |
||
|
7
|
7
8ES-47486-00-00 Shaft 4 |
8ES-47486-00-00 |
from US $24.65 |
||
|
8
|
8
903-87100-22-00 Collar |
903-87100-22-00 |
from US $10.06 |
||
|
9
|
9
90105-10329-00 Bolt, Flange |
90105-10329-00 |
from US $3.54 |
||
| replacement | |||||
|
9
|
9
90105-10209-00 Bolt, Flange |
90105-10209-00 |
from US $3.54 |
||
|
10
|
10
902-01100-71-00 Washer, Plate |
902-01100-71-00 |
from US $4.25 |
||
|
11
|
11
8ES-47485-00-00 Shaft 3 |
8ES-47485-00-00 |
from US $29.89 |
||
|
12
|
12
90105-10209-00 Bolt, Flange |
90105-10209-00 |
from US $3.54 |
||
|
13
|
13
90387-19002-00 Collar |
90387-19002-00 |
from US $4.39 |
||
|
14
|
14
90387-19001-00 Collar |
90387-19001-00 |
from US $2.13 |
||
|
15
|
15
8HF-47495-00-00 Stopper 1 |
8HF-47495-00-00 |
from US $34 |
||
|
16
|
16
97002-06025-00 Bolt |
97002-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
16
|
16
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.34 |
||
|
17
|
17
90201-06081-00 Washer, Plate |
90201-06081-00 |
from US $1.15 |
||
|
18
|
18
95702-06300-00 Nut, Nylon |
95702-06300-00 |
from US $1.56 |
||
| replacement | |||||
|
18
|
18
95707-06300-00 Nut, Nylon |
95707-06300-00 |
from US $1.56 |
||
|
19
|
19
8HF-47481-00-00 Shock Absorber 2 |
8HF-47481-00-00 |
US $894.30 |
||
|
20
|
20
4AA-22259-70-00 Label, Warning |
4AA-22259-70-00 |
from US $6.52 |
||
| replacement | |||||
|
20
|
20
4AA-22259-60-00 Label, Warning |
4AA-22259-60-00 |
from US $6.52 |
||
|
21
|
21
903-81141-01-00 Bush, Solid |
903-81141-01-00 |
from US $3.54 |
||
|
22
|
22
90387-105G5-00 Collar (8U7) |
90387-105G5-00 |
from US $1.42 |
||
|
23
|
23
95812-10045-00 Bolt, Flange |
95812-10045-00 |
from US $2.55 |
||
| replacement | |||||
|
23
|
23
95817-10045-00 Bolt, Flange |
95817-10045-00 |
from US $2.55 |
||
|
24
|
24
90101-10738-00 Bolt |
90101-10738-00 |
from US $2.69 |
||
| replacement | |||||
|
24
|
24
90101-10559-00 Bolt |
90101-10559-00 |
from US $3.64 |
||
|
25
|
25
956-02102-00-00 Nut, U Flange |
956-02102-00-00 |
from US $1.56 |
||
|
26
|
26
8HF-47349-01-00 Bracket, Arm Pivot |
8HF-47349-01-00 |
US $96.43 |
||
|
27
|
27
903-86200-01-00 Bush |
903-86200-01-00 |
from US $4.82 |
||
|
28
|
28
8GN-47487-00-00 Shaft 5 |
8GN-47487-00-00 |
from US $67.70 |
||
|
29
|
29
90105-10209-00 Bolt, Flange |
90105-10209-00 |
from US $3.54 |
||
|
30
|
30
8FK-47416-01-00 Bracket 2 |
8FK-47416-01-00 |
from US $26.64 |
||
|
31
|
31
90387-10024-00 Collar |
90387-10024-00 |
from US $5.10 |
||
|
32
|
32
95812-10045-00 Bolt, Flange |
95812-10045-00 |
from US $2.55 |
||
| replacement | |||||
|
32
|
32
95817-10045-00 Bolt, Flange |
95817-10045-00 |
from US $2.55 |
||
|
33
|
33
956-02102-00-00 Nut, U Flange |
956-02102-00-00 |
from US $1.56 |
||
|
34
|
34
8HF-47480-01-00 Shock Absorber |
8HF-47480-01-00 |
US $946.36 |
||
|
35
|
35
90142-03N01-00 Screw, Oval Head |
90142-03N01-00 |
from US $1.13 |
||
| replacement | |||||
|
35
|
35
986-80030-08-00 Screw, Oval Head |
986-80030-08-00 |
from US $0.59 |
||
|
36
|
36
5EA-22464-00-00 Knob (Comp) |
5EA-22464-00-00 |
from US $4.39 |
||
|
37
|
37
90384-18190-00 Bush, Bimetal Formed |
90384-18190-00 |
from US $6.94 |
||
|
38
|
38
4AA-22259-70-00 Label, Warning |
4AA-22259-70-00 |
from US $6.52 |
||
| replacement | |||||
|
38
|
38
4AA-22259-60-00 Label, Warning |
4AA-22259-60-00 |
from US $6.52 |
||
|
39
|
39
90387-10023-00 Collar |
90387-10023-00 |
from US $6.23 |
||
|
40
|
40
8HF-47494-00-00 Rod, Relay |
8HF-47494-00-00 |
from US $31.59 |
||
|
41
|
41
90386-16001-00 Bush |
90386-16001-00 |
from US $3.54 |
||
|
42
|
42
90387-101A1-00 Collar |
90387-101A1-00 |
from US $3.83 |
||
|
43
|
43
90201-10043-00 Washer, Plate |
90201-10043-00 |
from US $1.33 |
||
|
44
|
44
95812-10090-00 Bolt, Flange |
95812-10090-00 |
from US $3.12 |
||
| replacements | |||||
|
44
|
44
95817-10090-00 Bolt,flange |
95817-10090-00 |
from US $3.12 |
||
|
44
|
44
958-11100-90-00 Bolt, Flange(3Yf) |
958-11100-90-00 |
US $3.12 |
||
|
45
|
45
95812-10040-00 Bolt, Flange |
95812-10040-00 |
from US $1.45 |
||
|
46
|
46
956-02102-00-00 Nut, U Flange |
956-02102-00-00 |
from US $1.56 |
||
|
47
|
47
8FK-47349-10-00 Bracket, Arm Pivot |
8FK-47349-10-00 |
from US $30.89 |
||
|
48
|
48
903-86200-01-00 Bush |
903-86200-01-00 |
from US $4.82 |
||
|
49
|
49
8ES-47487-00-00 Shaft 5 |
8ES-47487-00-00 |
from US $24.37 |
||
|
50
|
50
90105-10209-00 Bolt, Flange |
90105-10209-00 |
from US $3.54 |
||
|
51
|
51
8HF-47332-00-00 Arm, Pivot 2 |
8HF-47332-00-00 |
from US $232.11 |
||
|
52
|
52
8ES-4745D-00-00 Stopper, Control 1 |
8ES-4745D-00-00 |
from US $92.98 |
||
|
53
|
53
90380-24001-00 Bush, Solid |
90380-24001-00 |
from US $6.94 |
||
|
54
|
54
937-00060-04-00
Nipple, Grease
|
937-00060-04-00 |
— | ||
| replacement | |||||
|
54
|
54
93700-06M03-00 Nipple, Grease |
93700-06M03-00 |
from US $2.66 |
||
|
55
|
55
8HF-4745A-00-00 Rod, Control 1 |
8HF-4745A-00-00 |
US $224.42 |
||
|
56
|
56
93410-24092-00 Circlip |
93410-24092-00 |
from US $1.60 |
||
|
57
|
57
90201-24015-00 Washer, Plate |
90201-24015-00 |
from US $1.84 |
||
|
58
|
58
90202-25001-00 Washer, Plate |
90202-25001-00 |
from US $1.48 |
||
|
59
|
59
8ES-48142-00-00 Stopper, Adjusting Nut |
8ES-48142-00-00 |
from US $20.83 |
||
|
60
|
60
95812-10055-00 Bolt, Flange |
95812-10055-00 |
from US $2.83 |
||
| replacement | |||||
|
60
|
60
95817-10055-00 Bolt, Flange |
95817-10055-00 |
from US $2.83 |
||
|
61
|
61
956-02102-00-00 Nut, U Flange |
956-02102-00-00 |
from US $1.56 |
||
|
62
|
62
8ES-47447-00-00 Hook 2 |
8ES-47447-00-00 |
from US $5.53 |
||
|
63
|
63
99009-14400-00 Circlip |
99009-14400-00 |
from US $2.41 |
||
|
64
|
64
90202-25002-00 Washer, Plate |
90202-25002-00 |
from US $2.55 |
||
|
65
|
65
8FM-47475-01-00 Shaft 2 |
8FM-47475-01-00 |
from US $158.88 |
||
|
66
|
66
8HF-47445-00-00 Protector |
8HF-47445-00-00 |
from US $9.92 |
||
|
67
|
67
8HF-47473-00-00 Spring, Rear 1(K=2200Nmm/deg)1K=2200NMM/DEG |
8HF-47473-00-00 |
US $355 |
||
|
68
|
68
8HF-47474-00-00 Spring, Rear 2(K=2200Nmm/deg)2K=2200NMM/DEG |
8HF-47474-00-00 |
US $370.93 |
||
|
69
|
69
903-81281-08-00 Bush, Solid |
903-81281-08-00 |
from US $6.23 |
||
|
70
|
70
8ES-47467-00-00 Plate, Guide |
8ES-47467-00-00 |
from US $9.63 |
||
|
71
|
71
8HF-47337-00-00 Shaft, Pivot |
8HF-47337-00-00 |
US $115.04 |
||
|
72
|
72
90386-25001-00 Bush |
90386-25001-00 |
from US $4.39 |
||
|
73
|
73
90387-26002-00 Collar |
90387-26002-00 |
from US $1.84 |
||
|
74
|
74
90387-26003-00 Collar |
90387-26003-00 |
from US $2.13 |
||
|
75
|
75
90201-10028-00 Washer, Plate |
90201-10028-00 |
from US $1.60 |
||
|
76
|
76
958-17100-30-00 Bolt, Flange |
958-17100-30-00 |
from US $1.07 |
||
|
77
|
77
8GL-47486-00-00 Shaft 4 |
8GL-47486-00-00 |
from US $41.03 |
||
|
78
|
78
8GL-47341-00-00 Spacer |
8GL-47341-00-00 |
from US $7.37 |
||
|
79
|
79
90105-10237-00 Bolt, Flange |
90105-10237-00 |
from US $1.07 |
||
| replacement | |||||
|
79
|
79
958-17100-30-00 Bolt, Flange |
958-17100-30-00 |
from US $1.07 |
||
