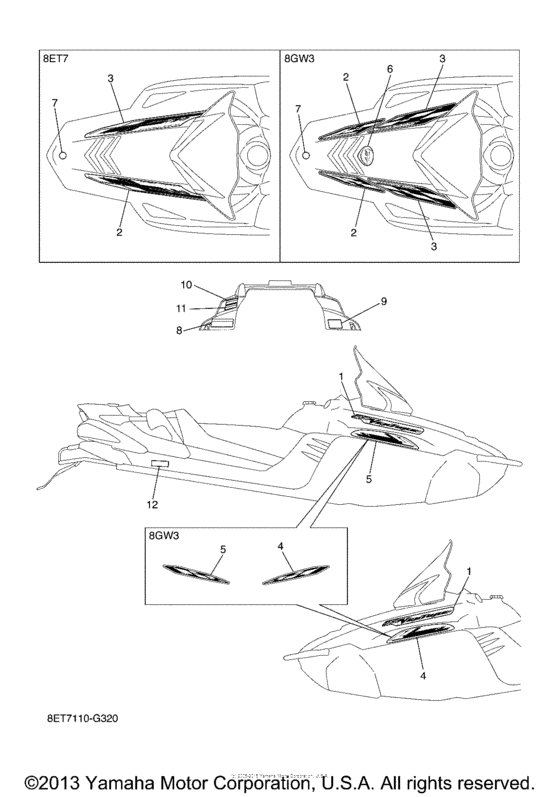

Emblem Diagram Yamaha RS10/RS90/RST90/RSG90 RS Venture GT
- Model code
- 8GW3
- Engine Capacity
- 1000
- Year
- 2008
- Sales region
- USA
- Power
- 120 hp
- Model
- RS Venture GT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8ET-77141-40-00 Emblem 1RST90X 8ET7 |
8ET-77141-40-00 |
US $29.03 |
||
|
1
|
1
8ET-77141-60-00 Emblem 1RST90GTX 8GW3 |
8ET-77141-60-00 |
US $29.03 |
||
|
2
|
2
8FM-7711L-30-00 Graphic, Shroud8ET7 |
8FM-7711L-30-00 |
US $127.91 |
||
|
2
|
2
8GG-7711J-20-00 Graphic Set8GW3 |
8GG-7711J-20-00 |
US $102.94 |
||
|
3
|
3
8FM-7711M-30-00 Graphic, Shroud8ET7 |
8FM-7711M-30-00 |
US $127.91 |
||
|
3
|
3
8GG-7711K-20-00 Graphic Set8GW3 |
8GG-7711K-20-00 |
US $158.45 |
||
|
4
|
4
8FM-7711N-60-00 Graphic, Shroud 3RST90X 8ET7 |
8FM-7711N-60-00 |
US $61.34 |
||
|
4
|
4
8GG-7711N-30-00 Graphic, Shroud 3RST90GTX 8GW3 |
8GG-7711N-30-00 |
US $66.53 |
||
|
5
|
5
8FM-7711P-60-00 Graphic, Shroud 4RST90X 8ET7 |
8FM-7711P-60-00 |
US $61.34 |
||
|
5
|
5
8GG-7711P-30-00 Graphic, Shroud 4RST90GTX 8GW3 |
8GG-7711P-30-00 |
US $66.53 |
||
|
6
|
6
8GW-77141-00-00 Emblem 1 |
8GW-77141-00-00 |
US $84.19 |
||
|
7
|
7
8AC-2414B-01-00 Emblem |
8AC-2414B-01-00 |
from US $16.86 |
||
| replacement | |||||
|
7
|
7
GU2-U411H-00-XX Tuning Fork Decal 40Mm |
GU2-U411H-00-XX |
US $35.04 |
||
|
8
|
8
8DM-77761-E0-00 Label, Warning 1 |
8DM-77761-E0-00 |
US $20.41 |
||
|
9
|
9
8ER-77763-E0-00 Label, Warning 3 |
8ER-77763-E0-00 |
from US $2.27 |
||
|
10
|
10
3JJ-2835Y-A0-00 Label, Caution |
3JJ-2835Y-A0-00 |
US $2.65 |
||
|
11
|
11
3JJ-2835Y-B0-00 Label, Caution |
3JJ-2835Y-B0-00 |
US $39.71 |
||
|
12
|
12
8FJ-2179D-11-00 Plate, Epa Offroad 2 |
8FJ-2179D-11-00 |
US $3.73 |
||
